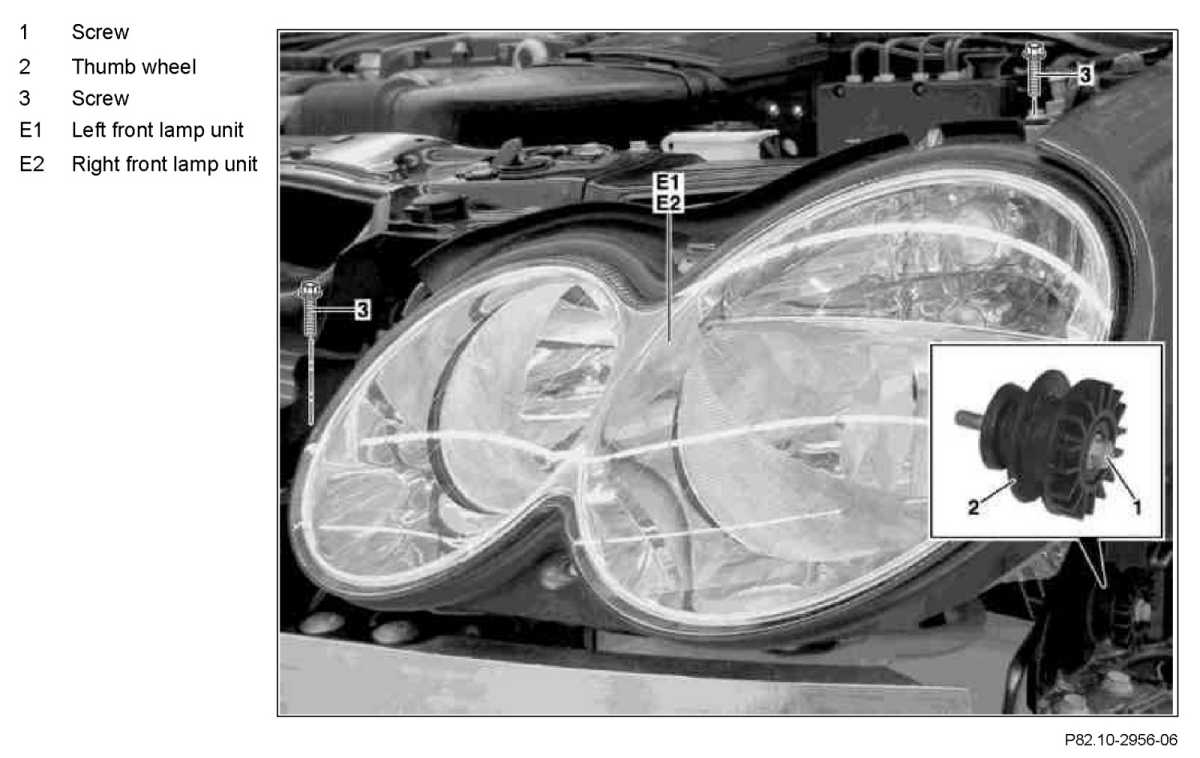

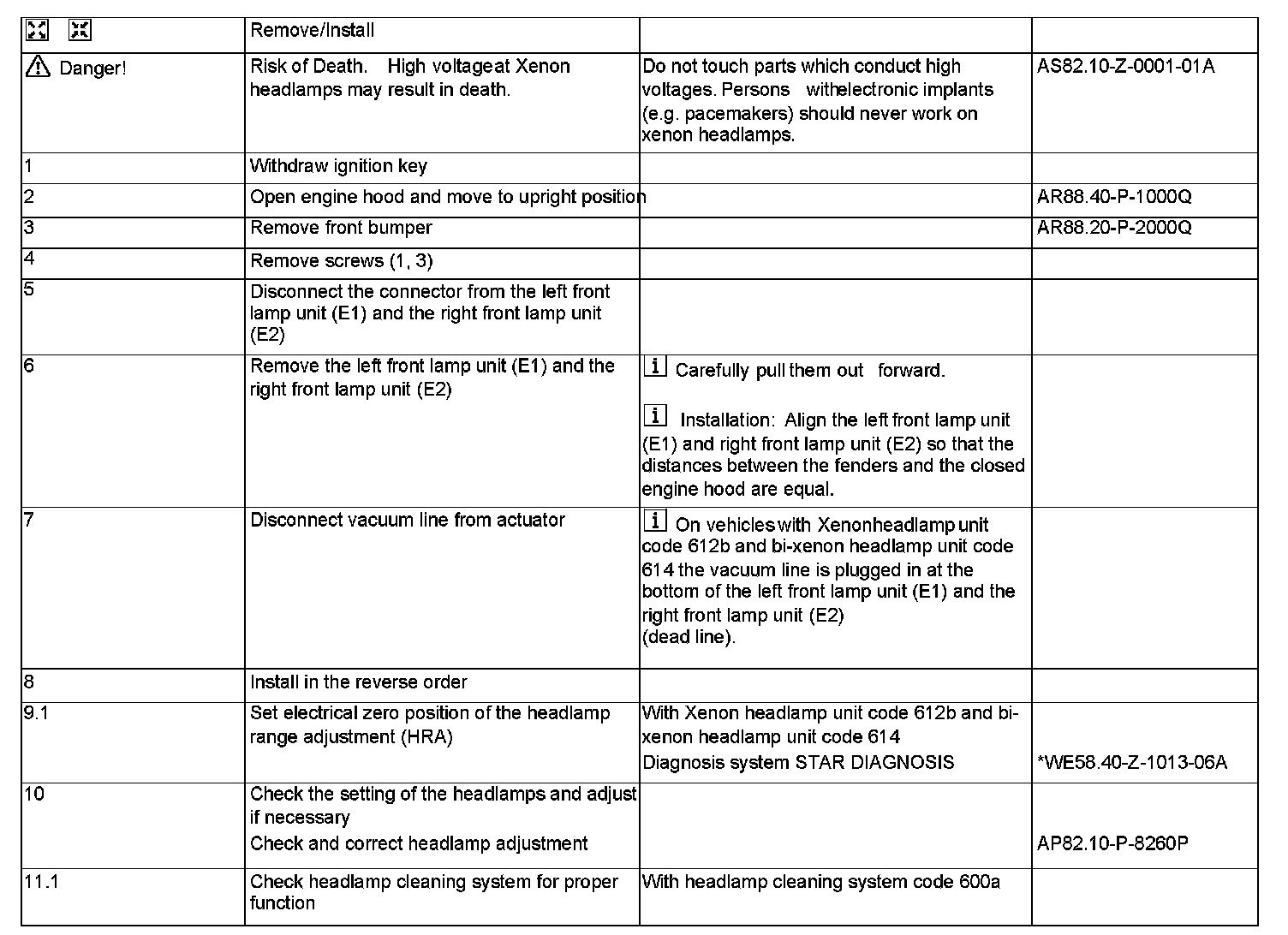

AR82.10-P-4730Q Remove/Install lamp Unit
AR82.10-P-4730Q Remove/Install lamp Unit
AR82.10-P-4730Q Remove/Install lamp Unit
- Removal of both lamps
