Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Description and Operation >> GF82.10-P-2104Q Xenon Headlamp Control Module, Location/Task

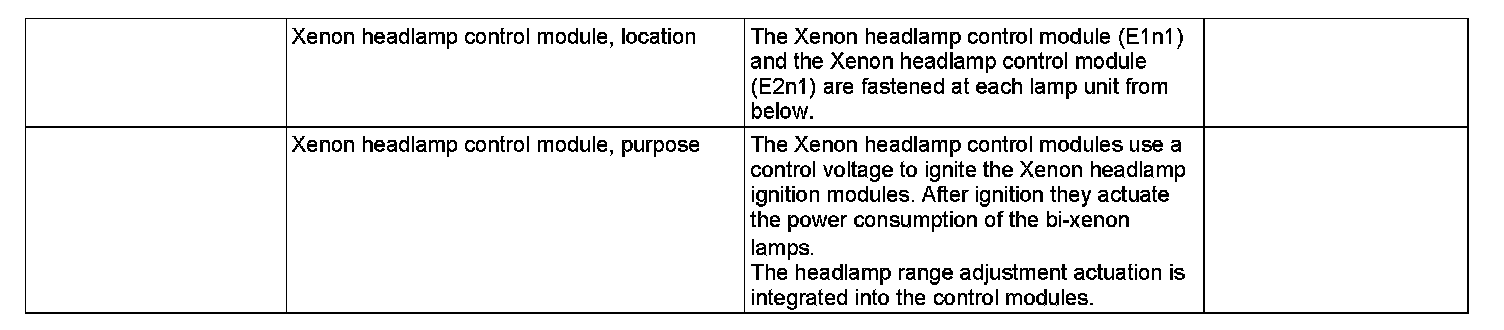

GF82.10-P-2104Q Xenon Headlamp Control Module, Location/Task



GF82.10-P-2104Q Xenon Headlamp Control Module, Location/Task
- with CODE (614) Bi-xenon headlamp unit

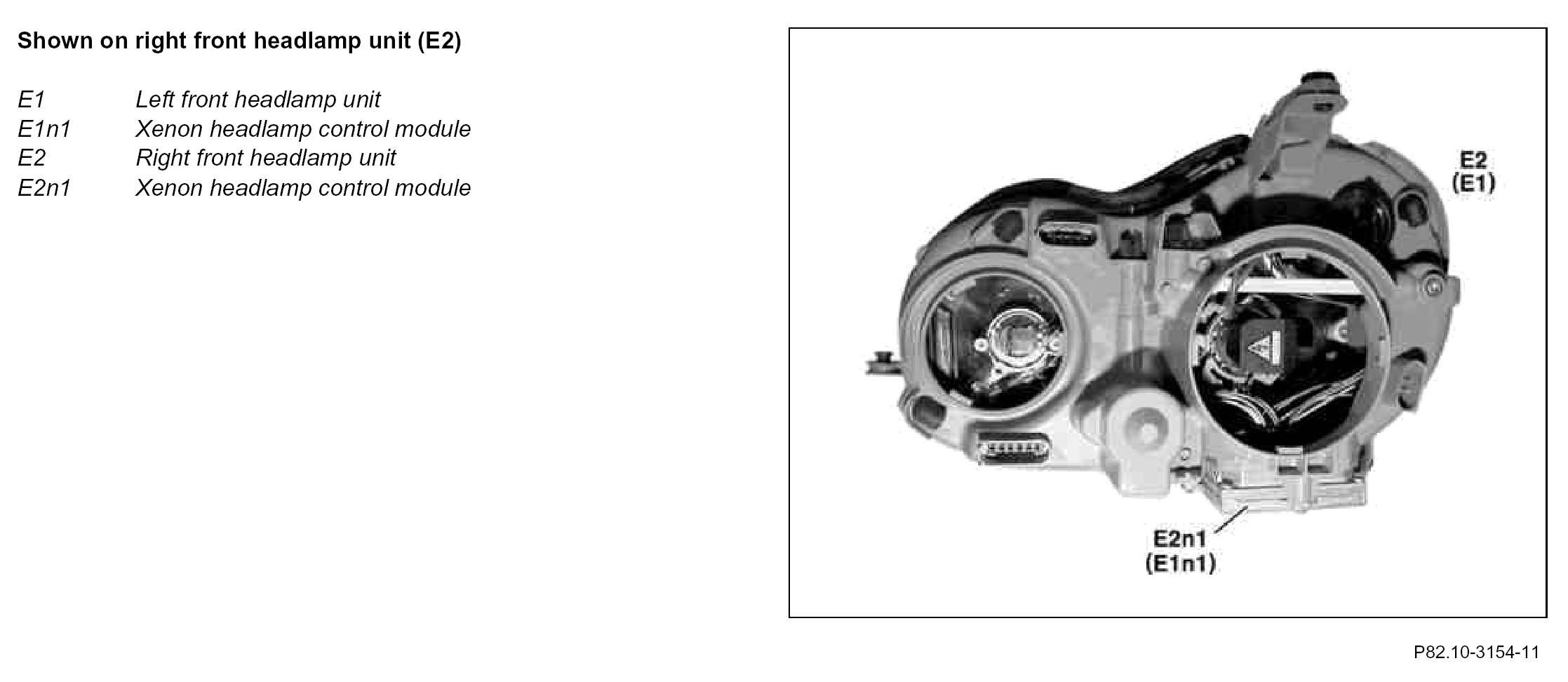

Component Identification:
