CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Adjustments
>>

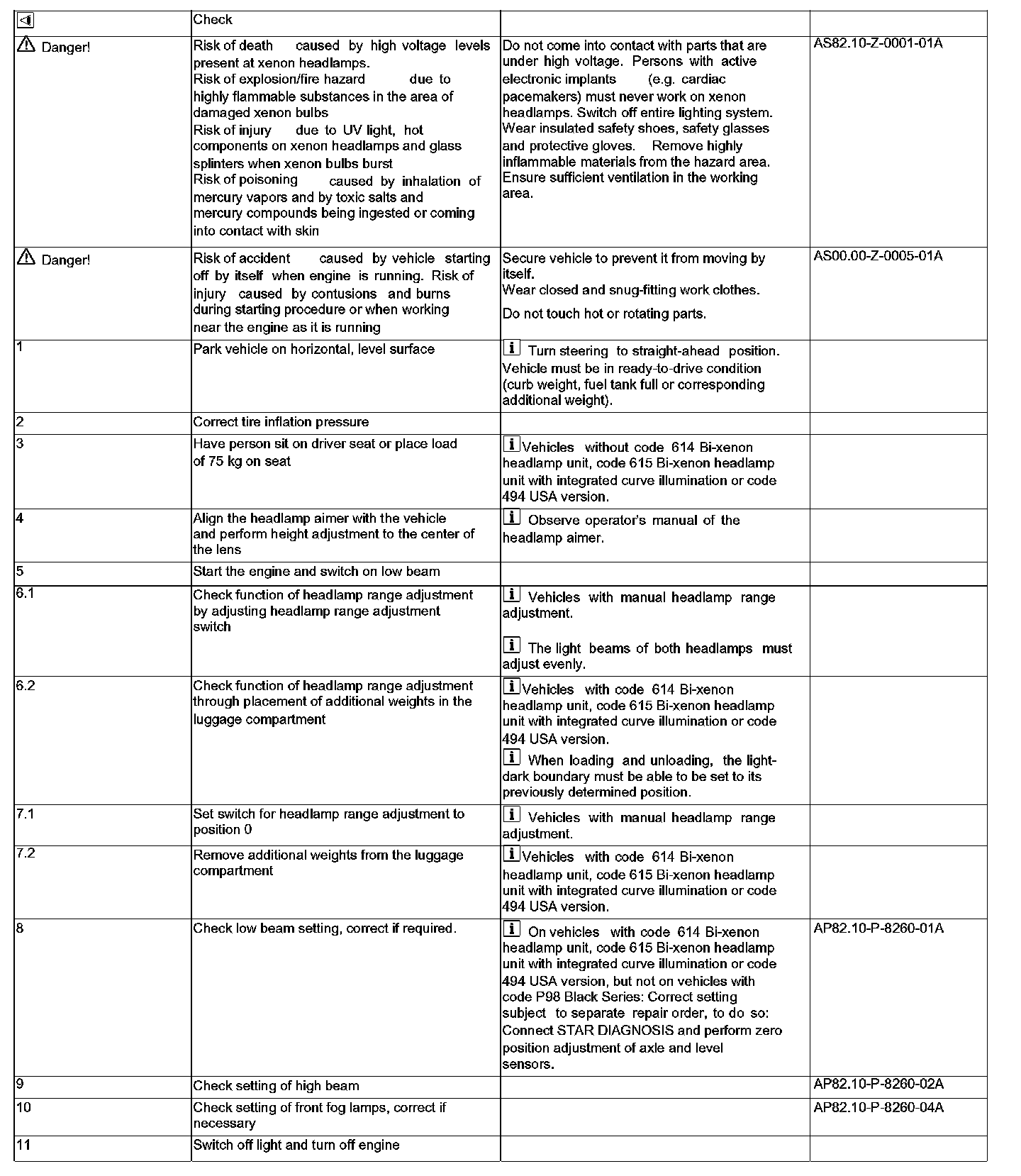

AP82.10-P-8260P Check and Correct Headlamp Adjustment
AP82.10-P-8260P Check and Correct Headlamp Adjustment
AP82.10-P-8260P Check And Correct
Headlamp
Adjustment

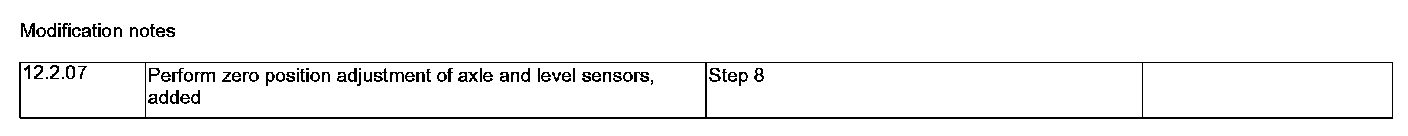

Modification Notes:
Steps 1 - 11:
