Refrigerant Temperature Sensor: Service and Repair



AR83.30-P-5431Q Remove And Install Refrigerant Pressure And Temperature Sensor
- with CODE (P98) Black Series

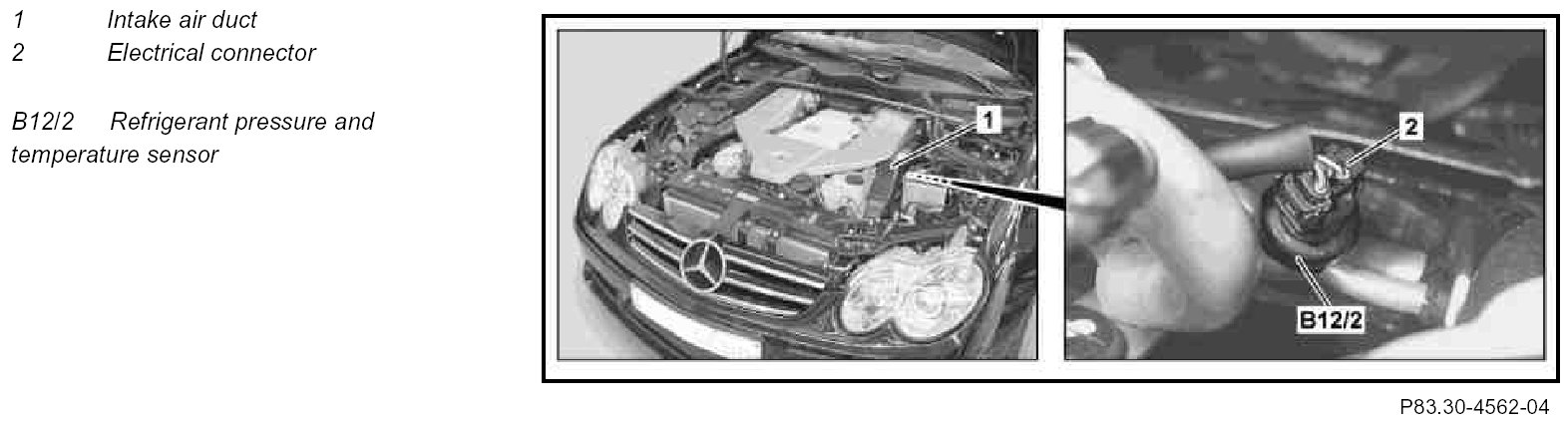

Component Identification:

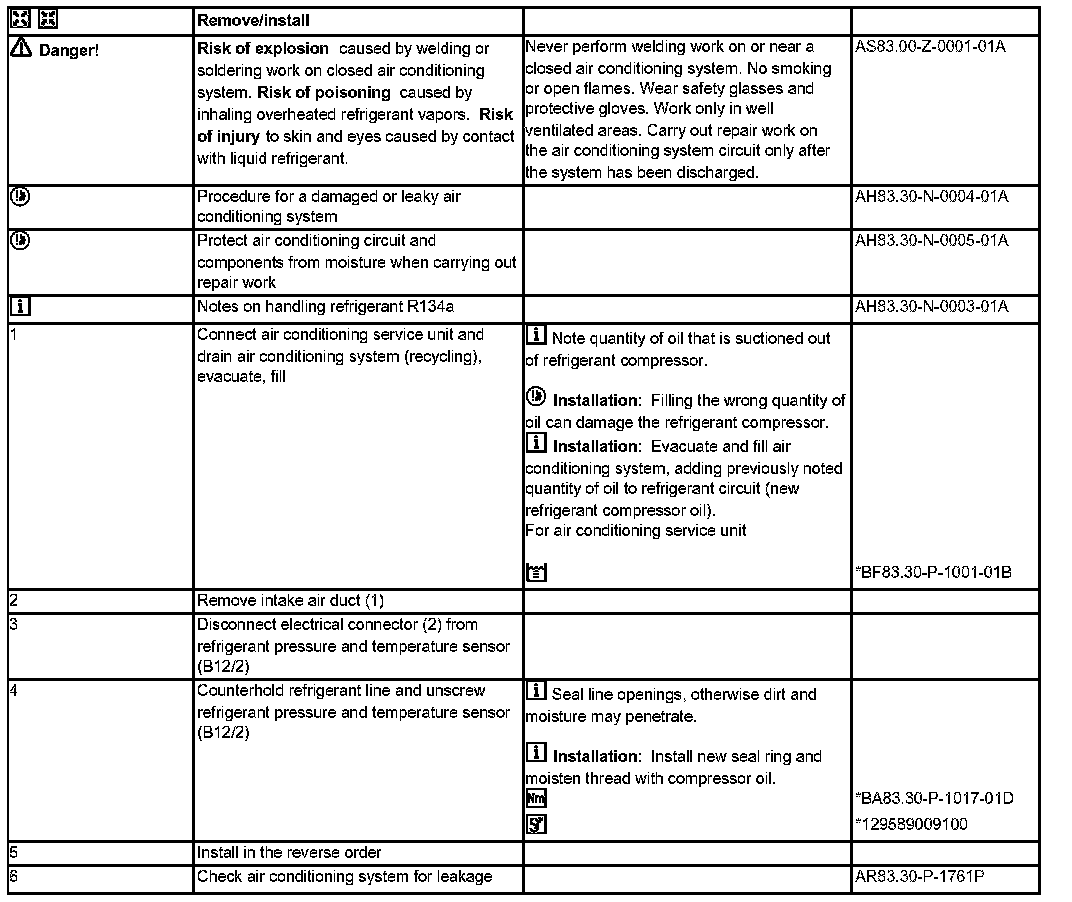

Steps 1 - 6:

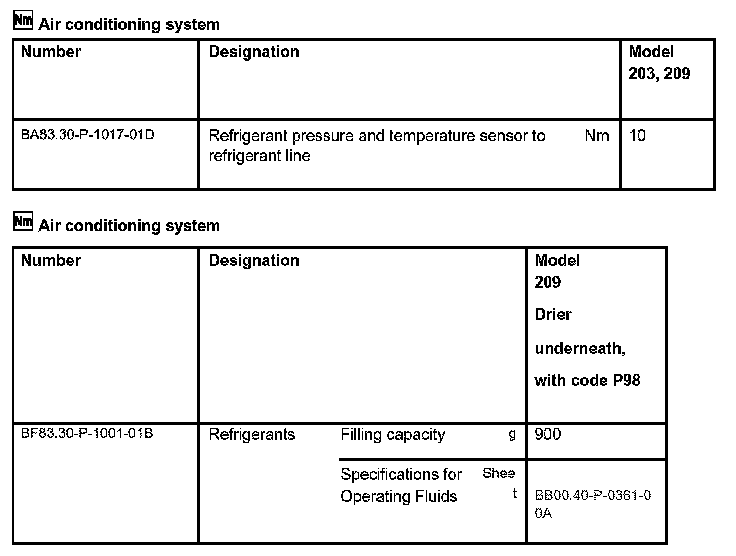

Air Conditioning System:

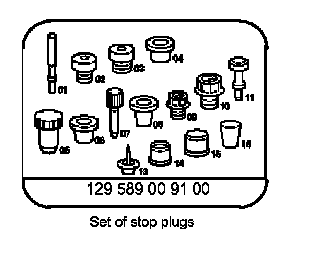

Special Tools:
