Burner Housing

Burner Housing







Task
The tasks of the burner housing and its components include:
- bringing the combustion air and the fuel together,
- forming the fuel-air mixture necessary for combustion,
- igniting the fuel-air mixture at the start of heater operation,
- and monitoring combustion.

Structure

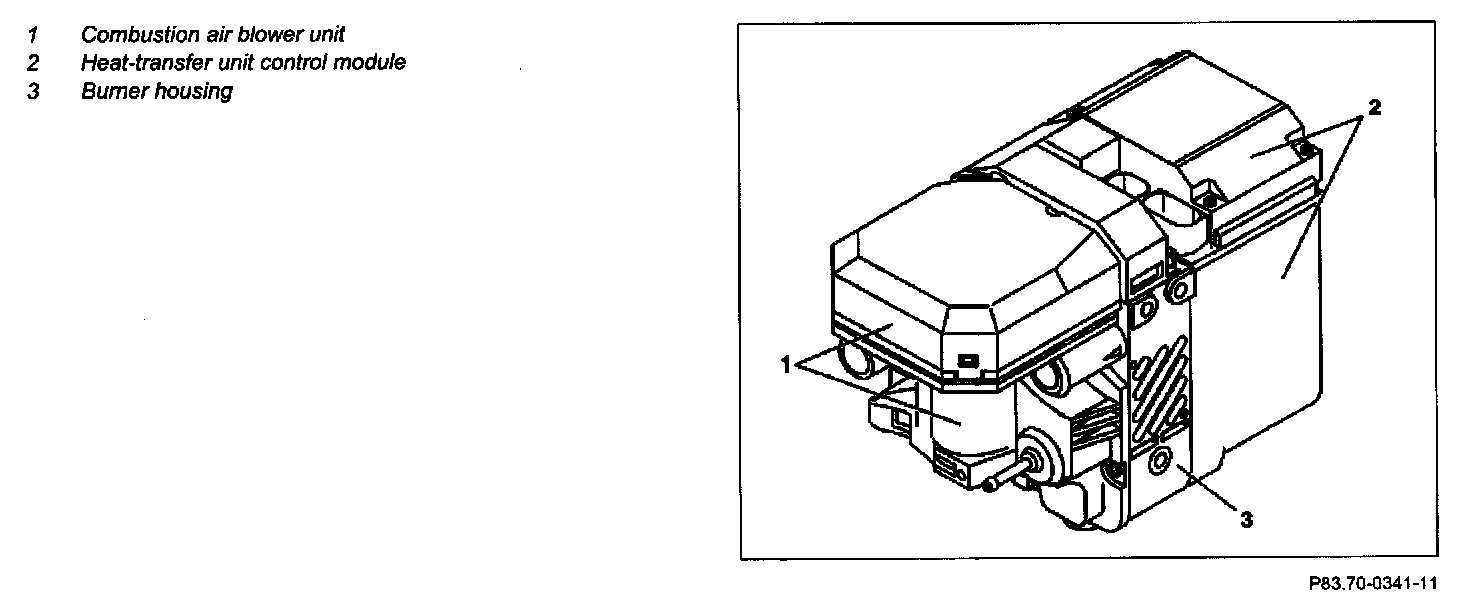

The burner insert and the flame monitor glow pin unit are installed in the burner housing (3).

The connections for the coolant supply and the coolant outlet are located on the burner housing.
