GF83.40-P-0004-01Q Comfort Automatic Air Conditioning (C-AAC) Networking of Components



GF83.40-P-0004-01Q Comfort Automatic Air Conditioning (C-AAC) Networking Of Components
- with CODE (581) Comfort automatic air conditioning

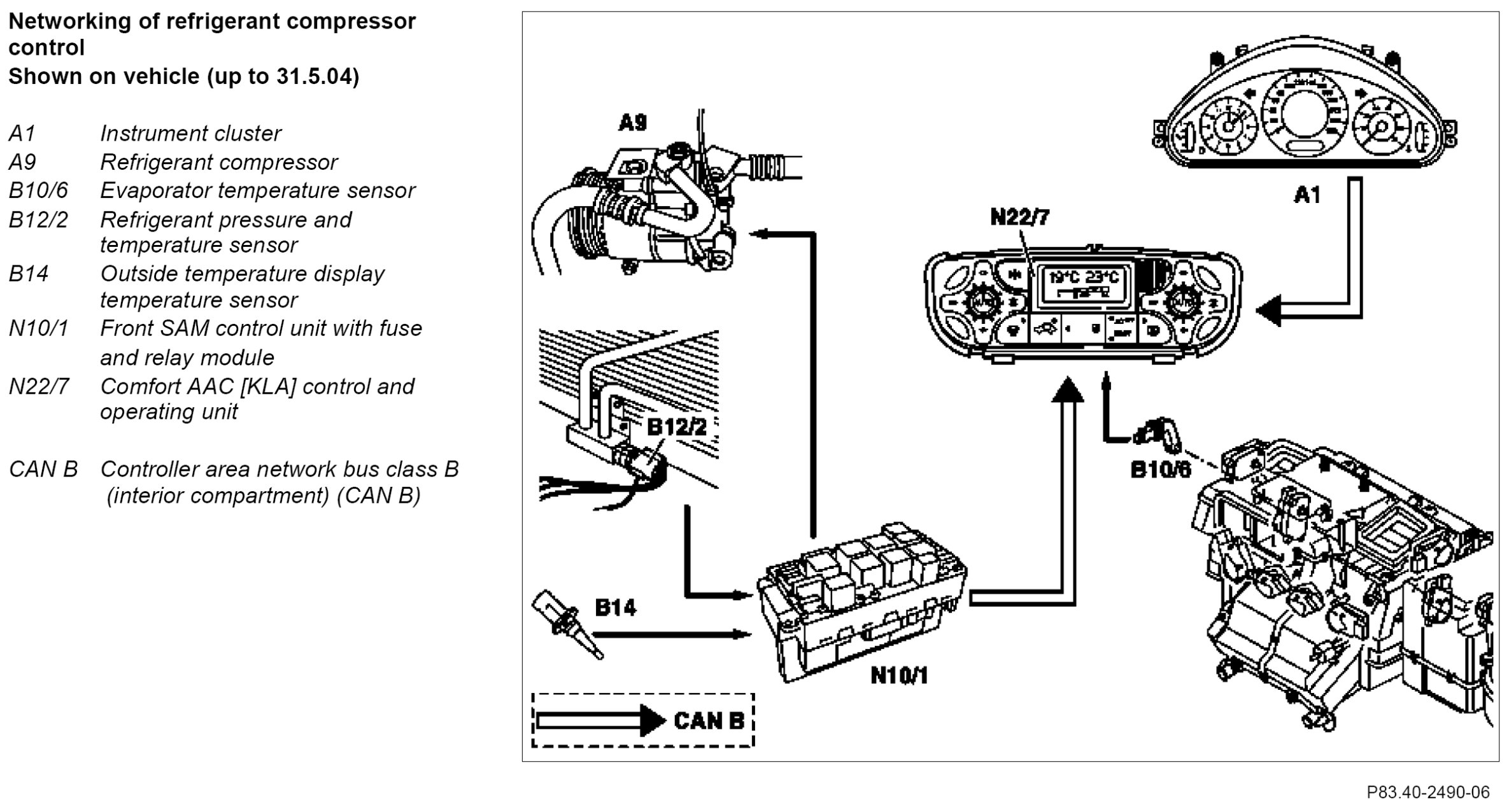

Component Identification:

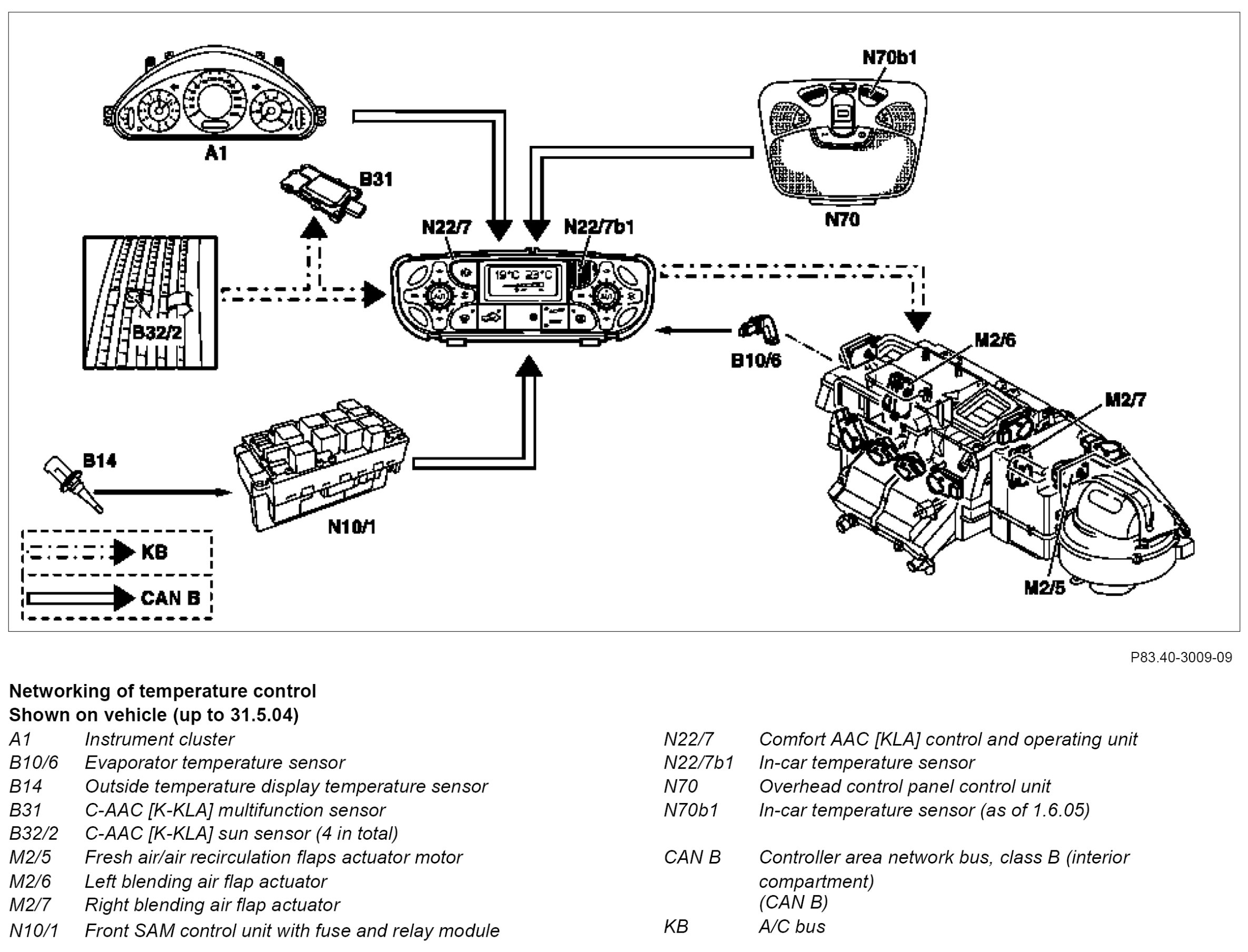

Component Identification:

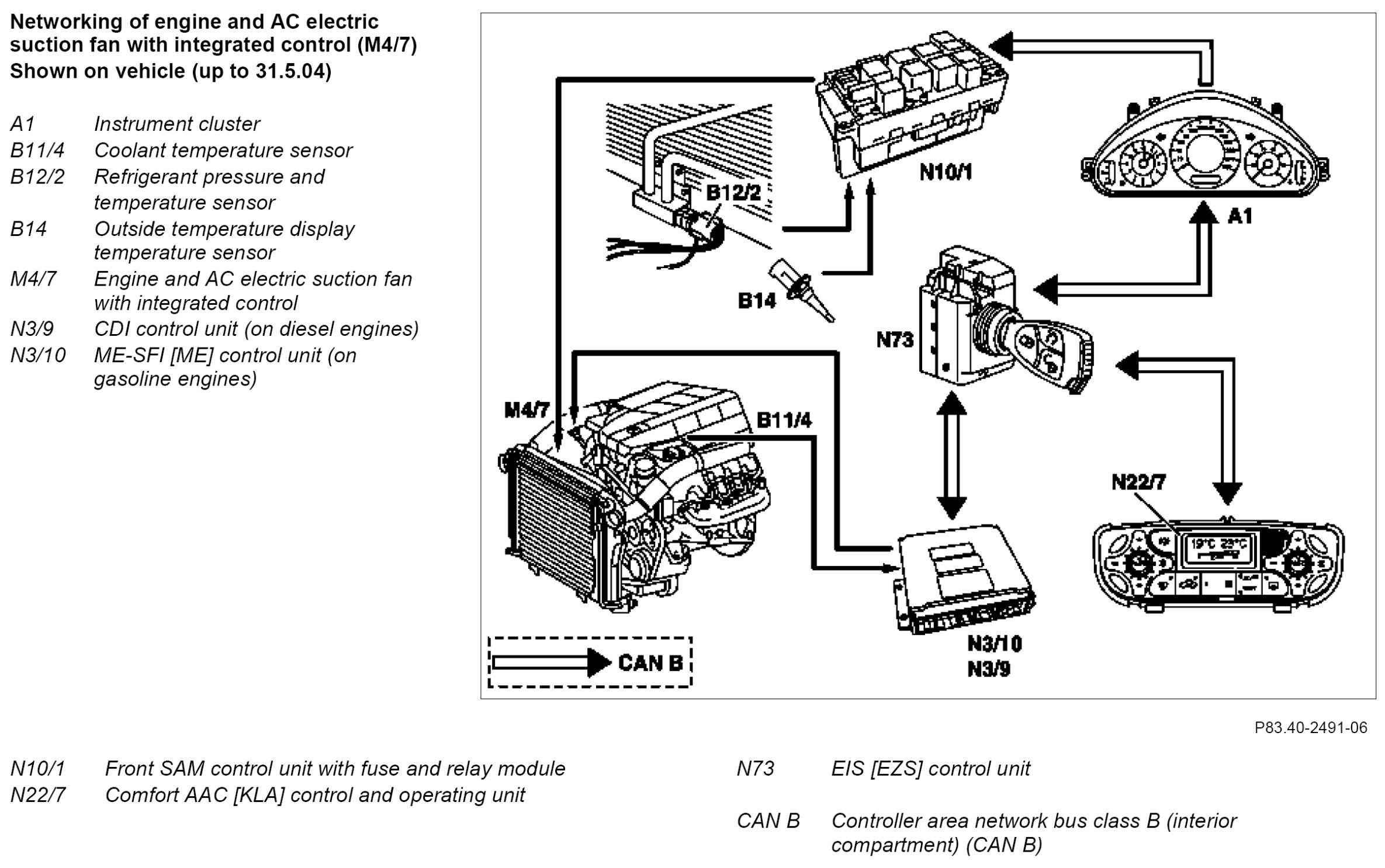

Component Identification:
