GF83.70-P-3062B End Heater Operation During the Combustion Phase, Function

GF83.70-P-3062B End Heater Operation During The Combustion Phase, Function
- with CODE (228) Stationary heater [models 203 up to 23.4.04, 209.3 up to 31.5.04, 215 as of 1.6.00 up to 31.8.02, 220 as of 1.6.00 up to 31.8.02, 230.4 up to 08]

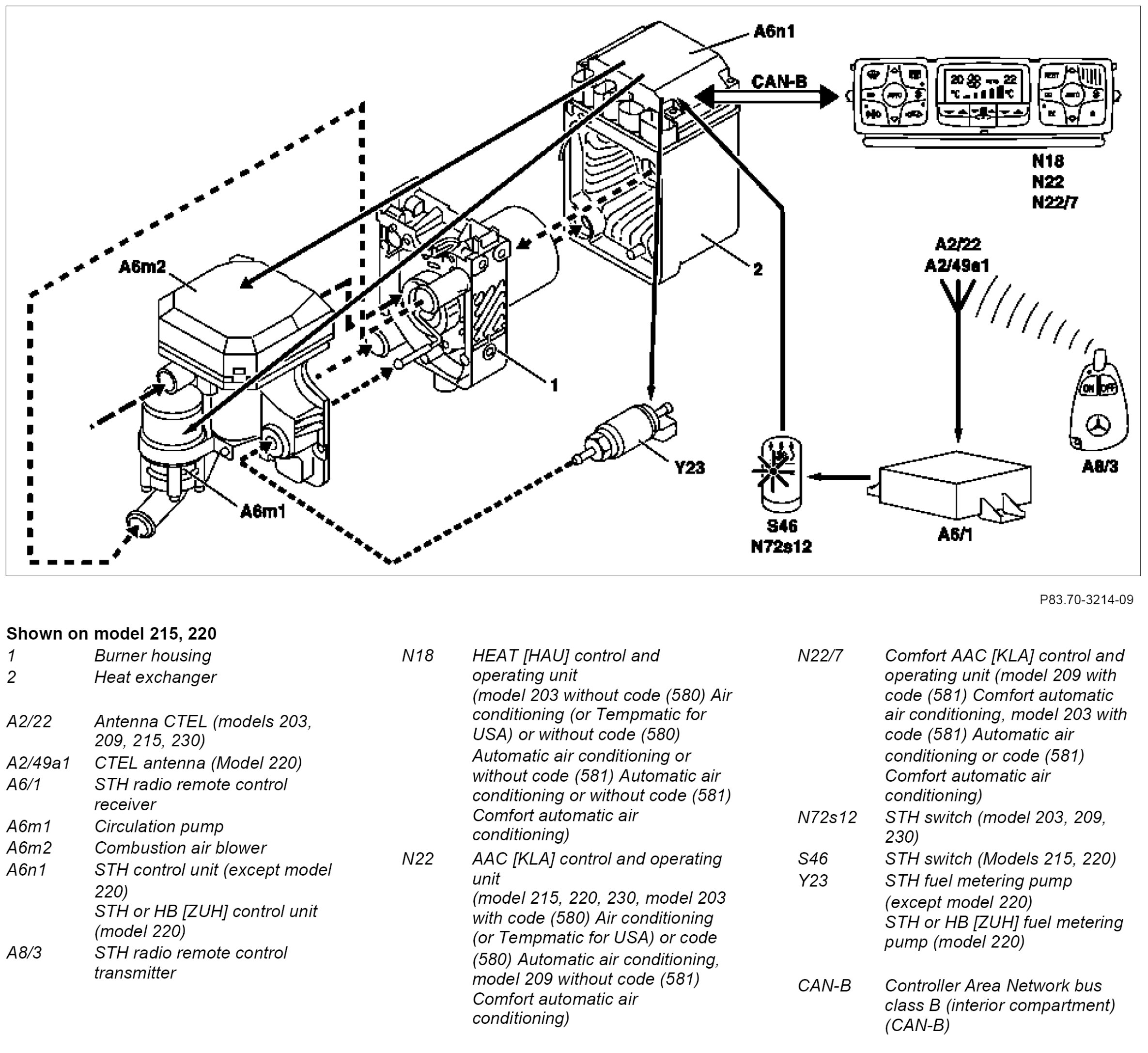

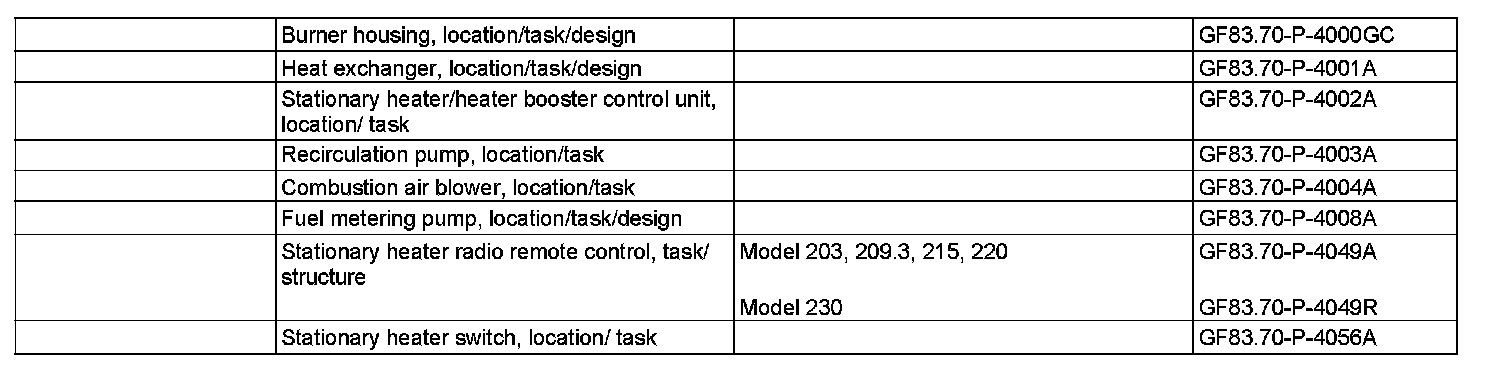

Component Identification:

Function sequence
1. The STH heater unit (except model 220) or the STH or HB [ZUH] heater unit (model 220) operate in partial load or full load mode. The green or red indicator lamp in the STH switch (N72s12 or S46) comes on. The circulation pump (A6m1) delivers the coolant via the heat exchanger (2) and the heating and cooling circuits. Combustion is stable, the combustion air blower (A6m2) and the STH fuel metering pump or the STH or HB [ZUH] fuel metering pump (Y23) deliver at their minimum or maximum speed and output.

2. At a coolant temperature over 30 °C and below 72 °C the blower motor delivers preheated air into the interior; it is activated by the control and operating unit (N18, N22 or N22/7).

3. The end of heater operation is automatically triggered by the STH control unit (A6n1) or the STH or HB [ZUH] control unit (A6n1) once the maximum heating period has expired, either manually by means of the STH switch (N72s12 or S46) or using the STH radio remote control transmitter (A8/3).

On model 230 as from 1.6.04 when heater operation is ended using the STH radio remote control transmitter (A8/3) visual feedback is given on the STH radio remote control transmitter (A8/3). If the radio connection is OK, the LED illuminates with a steady red light for approx. 2 seconds after the time of signal transmission. If the radio connection is not OK, the LED flashes red for approx. 2 seconds.

4. The STH control unit or the STH or HB [ZUH] control unit (A6n1) actuates the heater run-on to cool the STH heater unit or the STH or HB [ZUH] heater unit and for flushing the combustion chamber.
The STH fuel metering pump or the STH or HB [ZUH] fuel metering pump (Y23) is switched off and the control and operating unit (N18, N22 or N22/7) actuated with the "blower Off" signal via CAN-B (CAN-B).

5. The control and operating unit (N18, N22 or N22/7) switches off the blower motor and changes from the stationary heater mode to its standard operating mode.

The duration of the heater run-on is dependent on the last active heating mode:
^ Partial load operation approx. 160 s
^ Full load operation approx. 170 s

6. Heater run-on is terminated.
The combustion air blower (A6m2) and the recirculation pump (A6m1) are switched off. The indicator lamp in the STH switch (N72s12 or S46) is off.
