CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Engine, Cooling and Exhaust
>>
Engine
>>
Tune-up and Engine Performance Checks
>>
Compression Check
>>
Specifications
>>
BE01.00-P-1000-01D Compression Pressure
BE01.00-P-1000-01D Compression Pressure
BE01.00-P-1000-01D Compression pressure

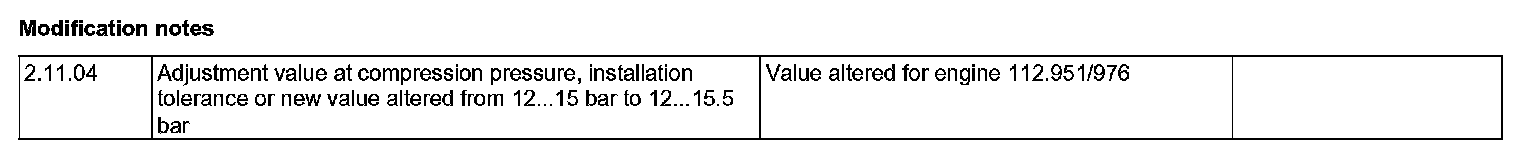

Modification notes:

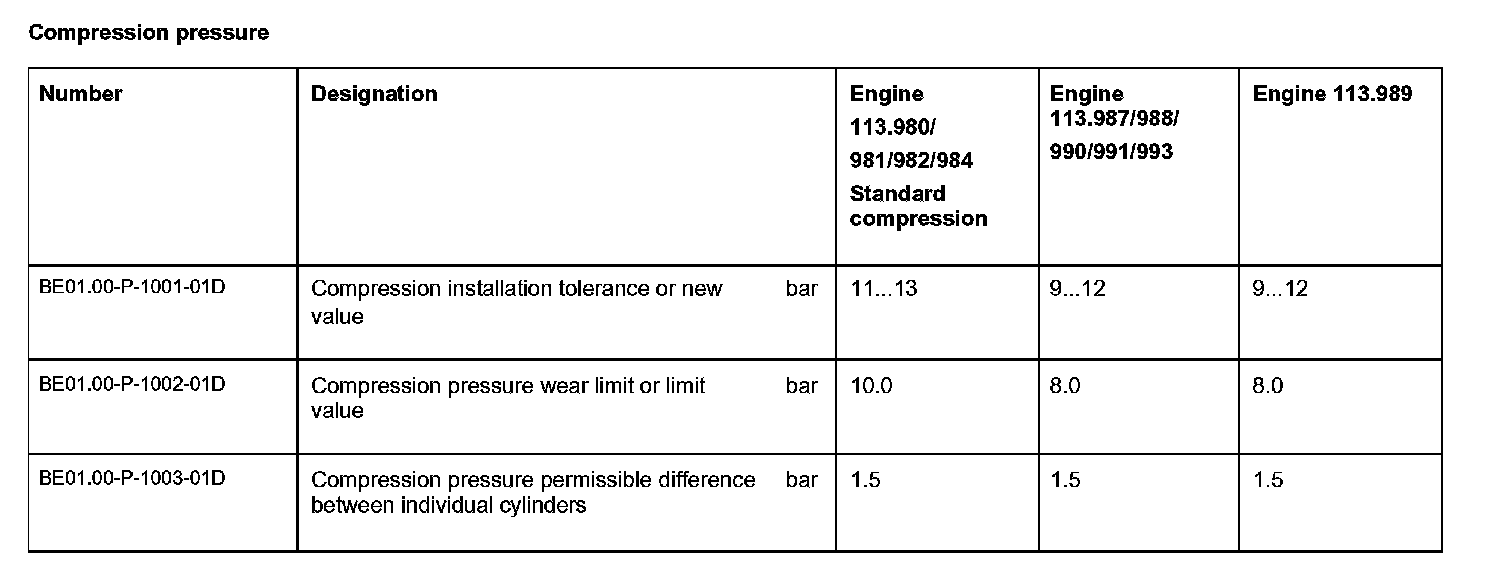

Compression pressure:

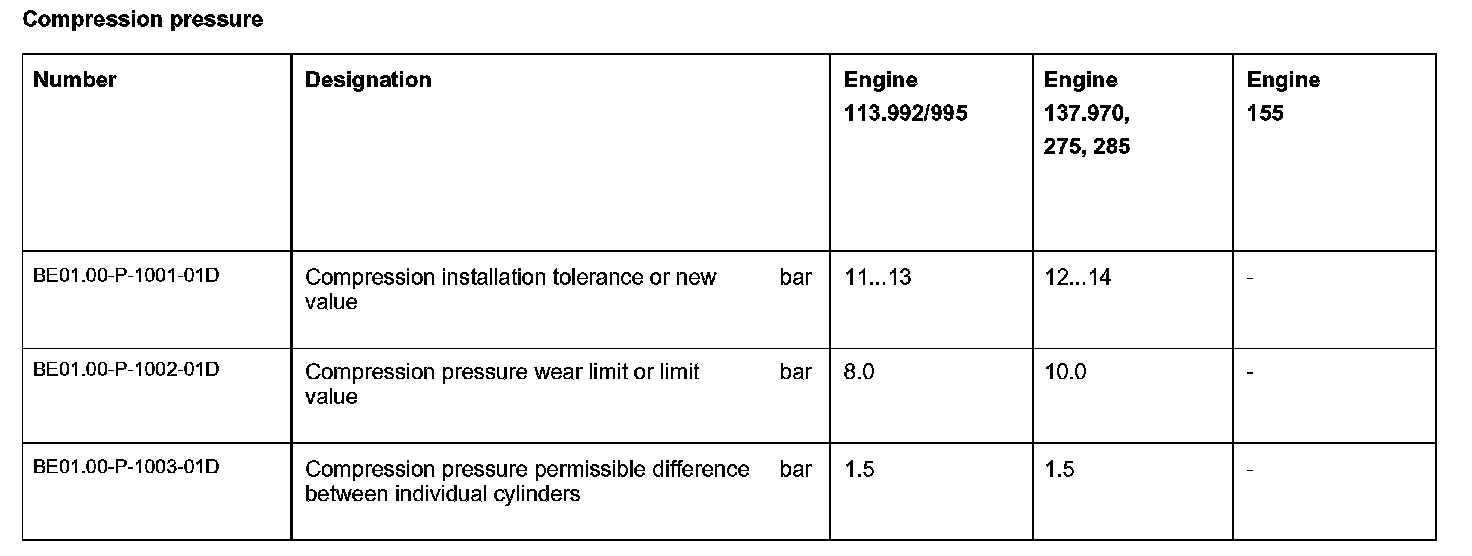

Compression pressure:

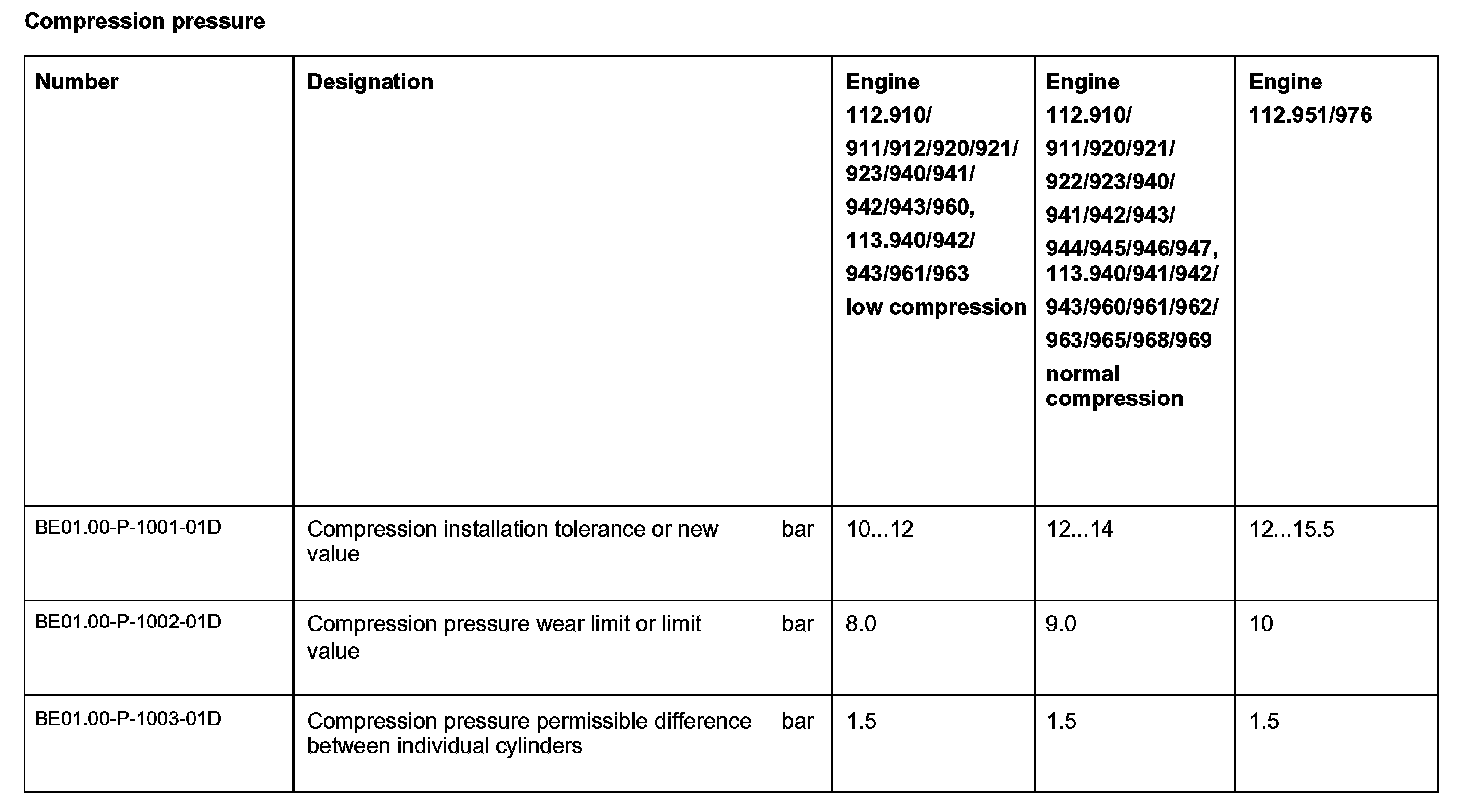

Compression pressure:

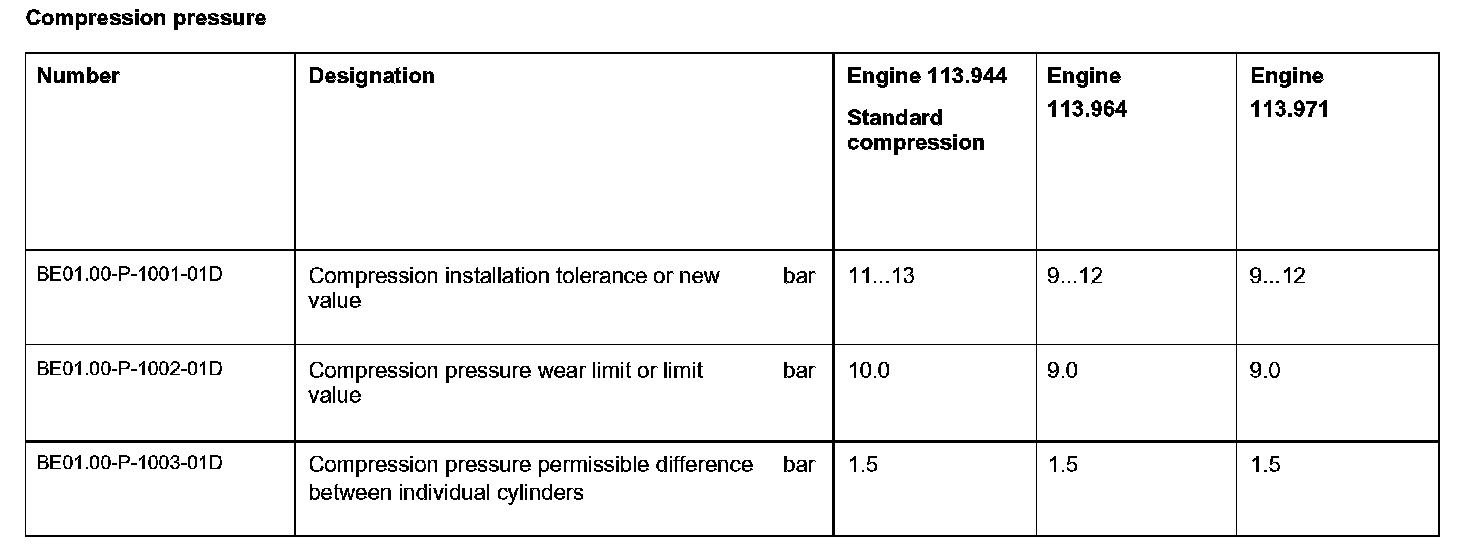

Compression pressure:
