Application of sealant to timing case cover:

Application of sealant to timing case cover

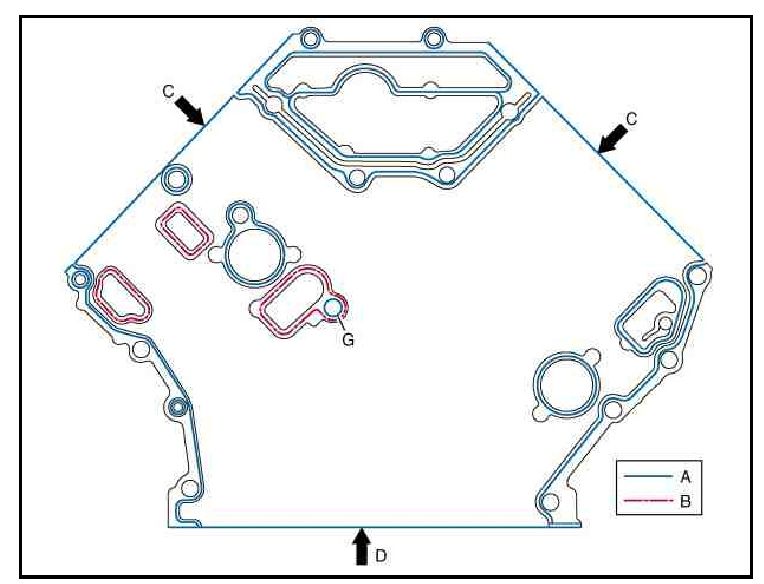

The timing case cover is sealed with a silicone sealant at points A, C, D
No sealant must be applied to the timing case cover at points B, pressure oil galleries to crankcase, with the exception around the bolt hole G. Sealant which is applied to the points B, is entrained by the oil flow and blocks the oil supply drillings of: Main bearings, camshaft bearings, rocker arms and oil spray nozzles.

Clean sealing surfaces
Apply sealant only to the specified surfaces with a bead of 2.0 mm ± 0.5 mm.

The sealant must be applied within 10 minutes!

The silicone bead must not be spread. Only the silicone sealant listed in Repair products may be used.
