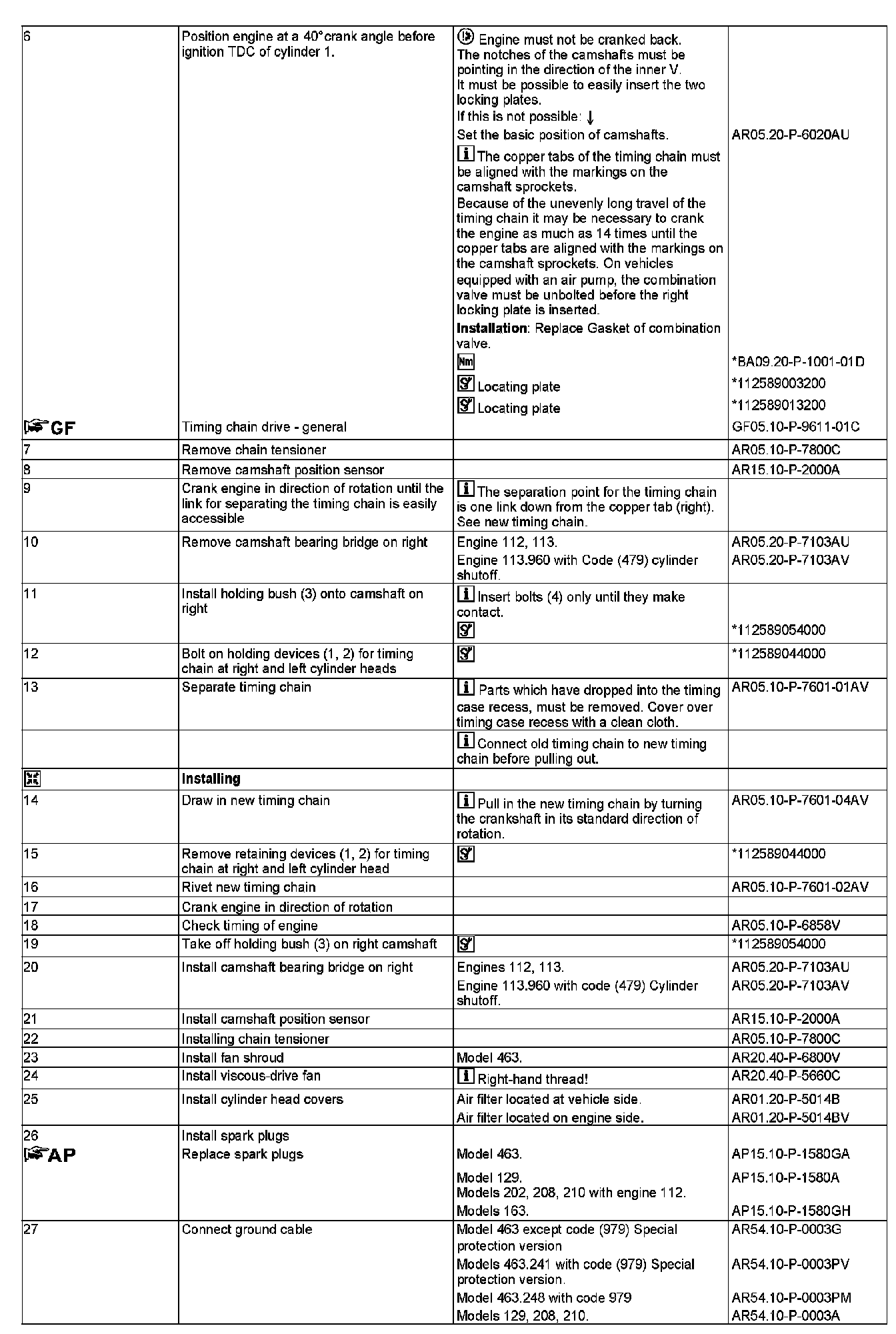

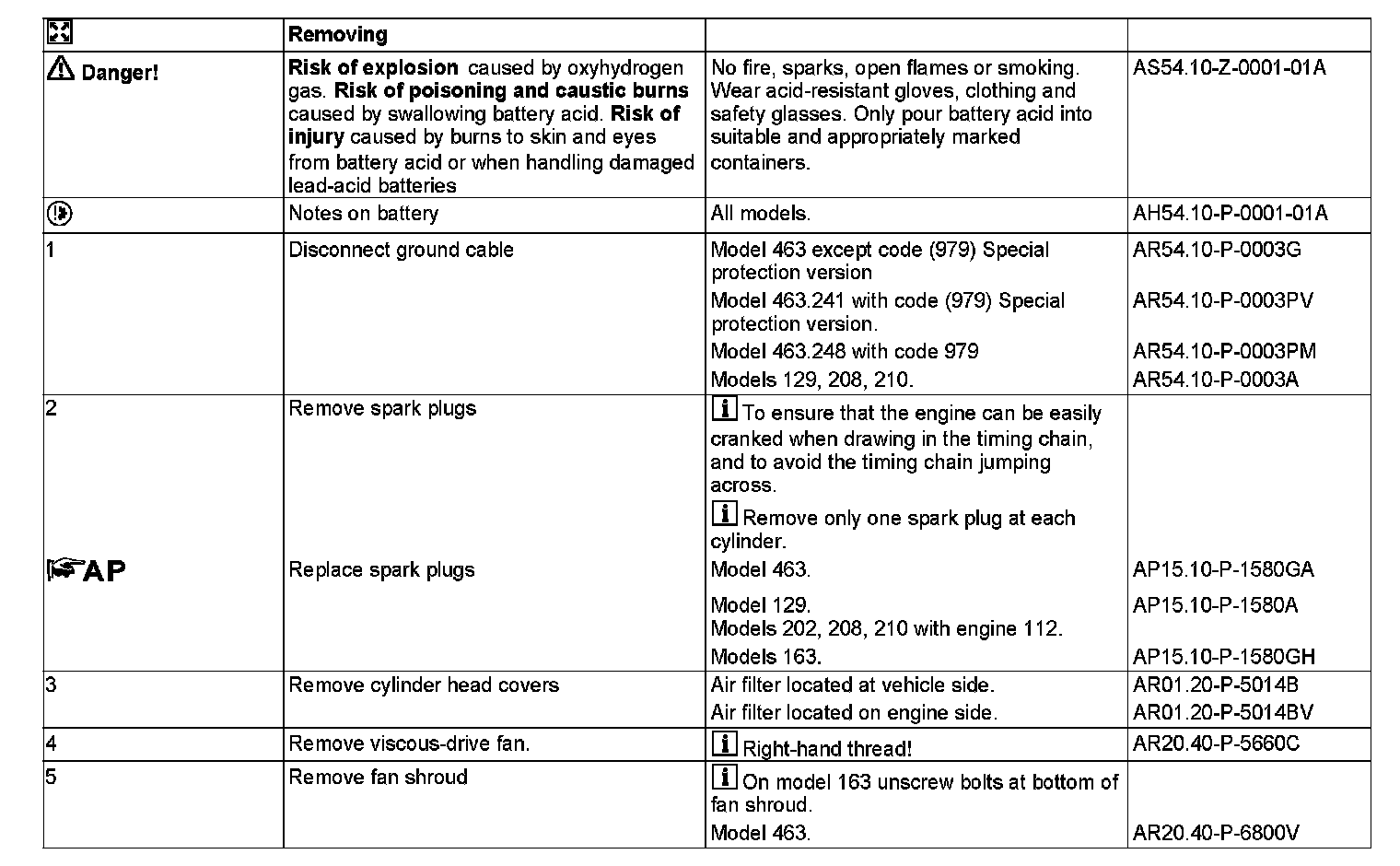

AR05.10-P-7601AV Replacing Timing Chain

AR05.10-P-7601AV Replacing Timing Chain
ENGINE 112
ENGINE 112.945 in MODEL 463.209 /232 /233 /244 /245 /250
ENGINE 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254
ENGINE 113.982 in MODEL 463.243 /246
ENGINE 113 (except 113.995) in MODEL 129, 163, 202, 203, 208, 209, 210, 211, 215, 220, 230





1 Retainer for timing chain (right)
2 Locking device for timing chain (left)
3 Locking bush for camshaft (right)
4 Torx screws














112 589 00 32 00
Locating plate





112 589 01 32 00
Locating plate





112 589 04 40 00
Retainer





112 589 05 40 00
Holding bush
