AR01.10-P-0110PV Crank Engine With Starter
AR01.10-P-0110PV Crank Engine With Starter
AR01.10-P-0110PV Crank engine with starter

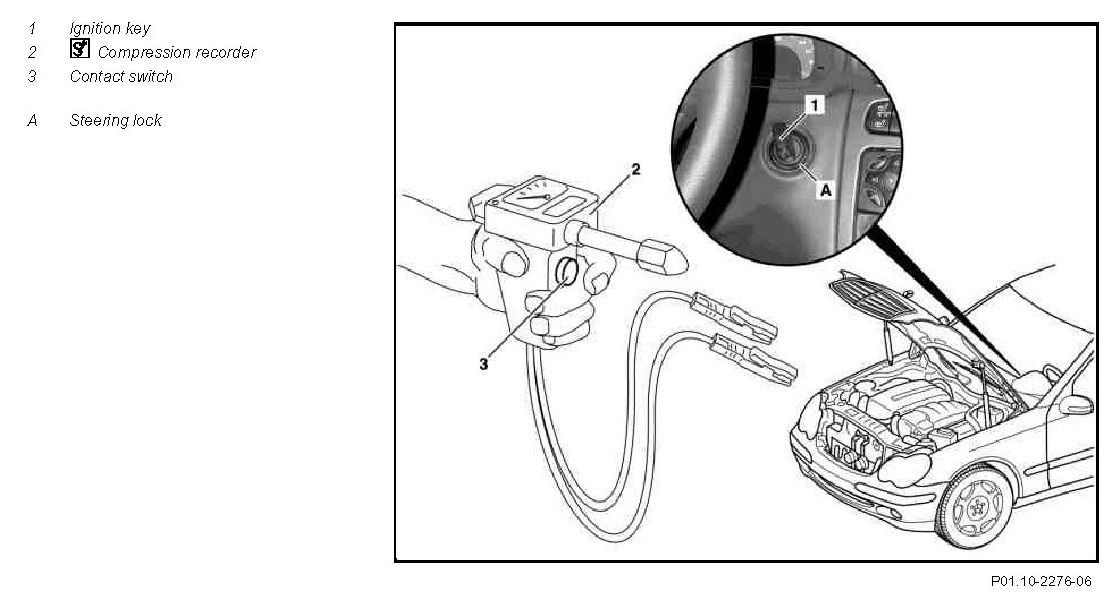

Component Identification:

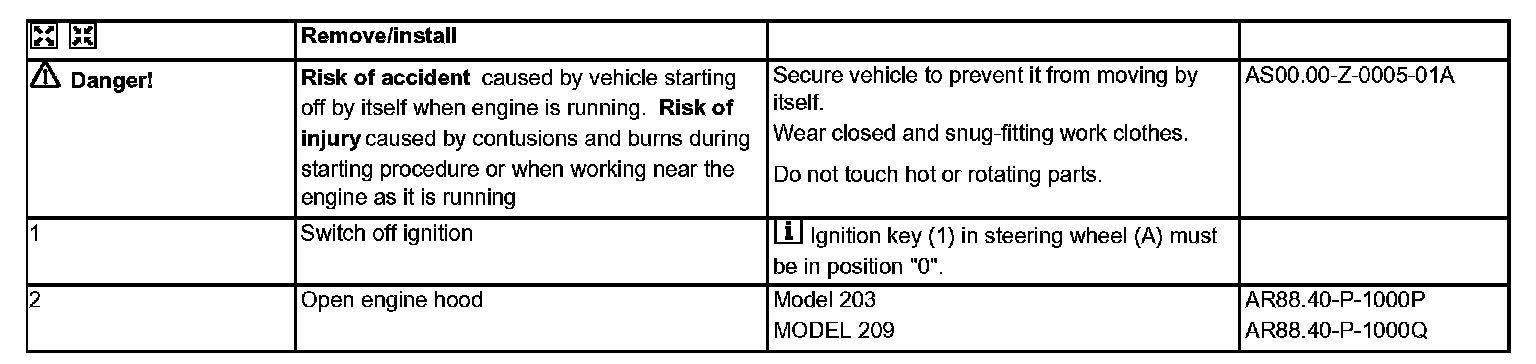

Remove/install Steps 1-2:

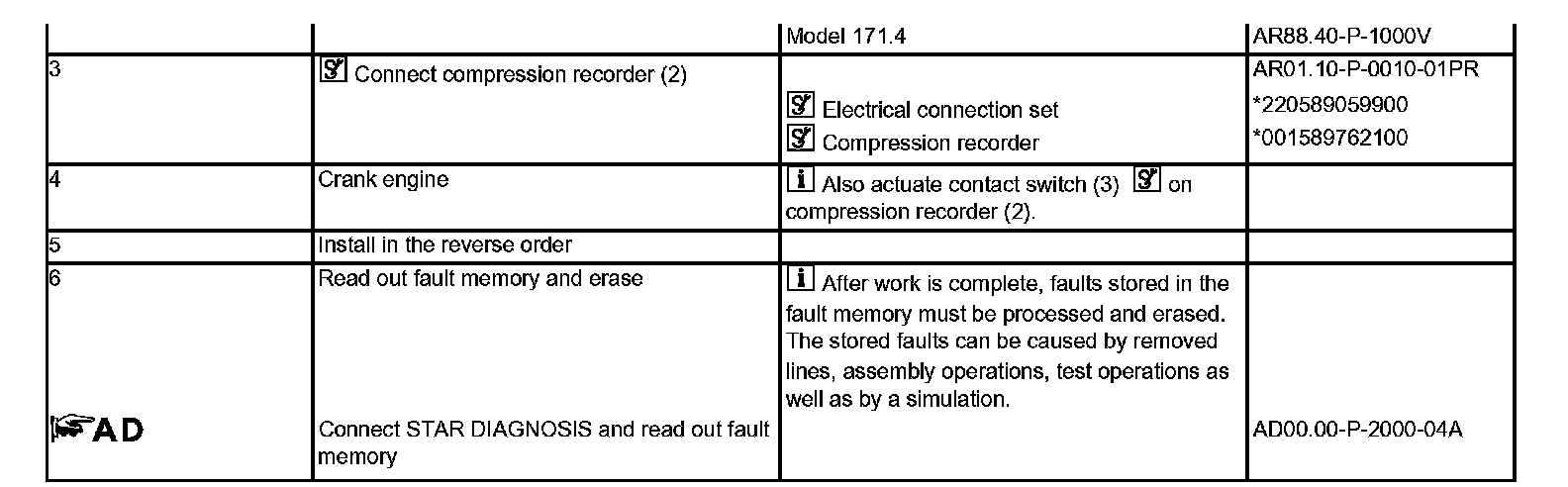

Remove/install Step 2 (Continued)-6:

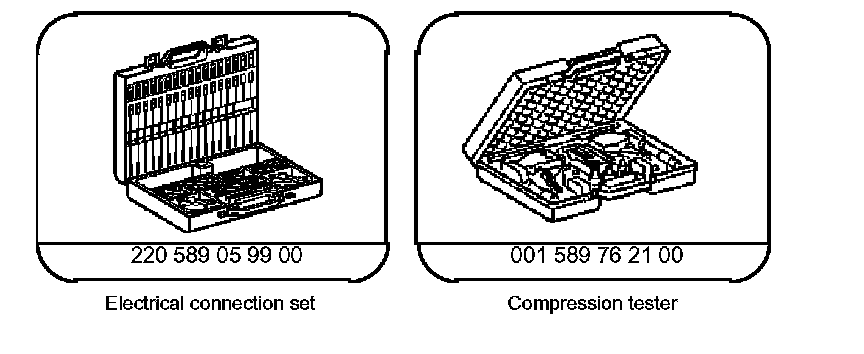

Special Tools:
