Intake Manifold: Diagrams



Intake Manifold Connection Plan (USA Models)

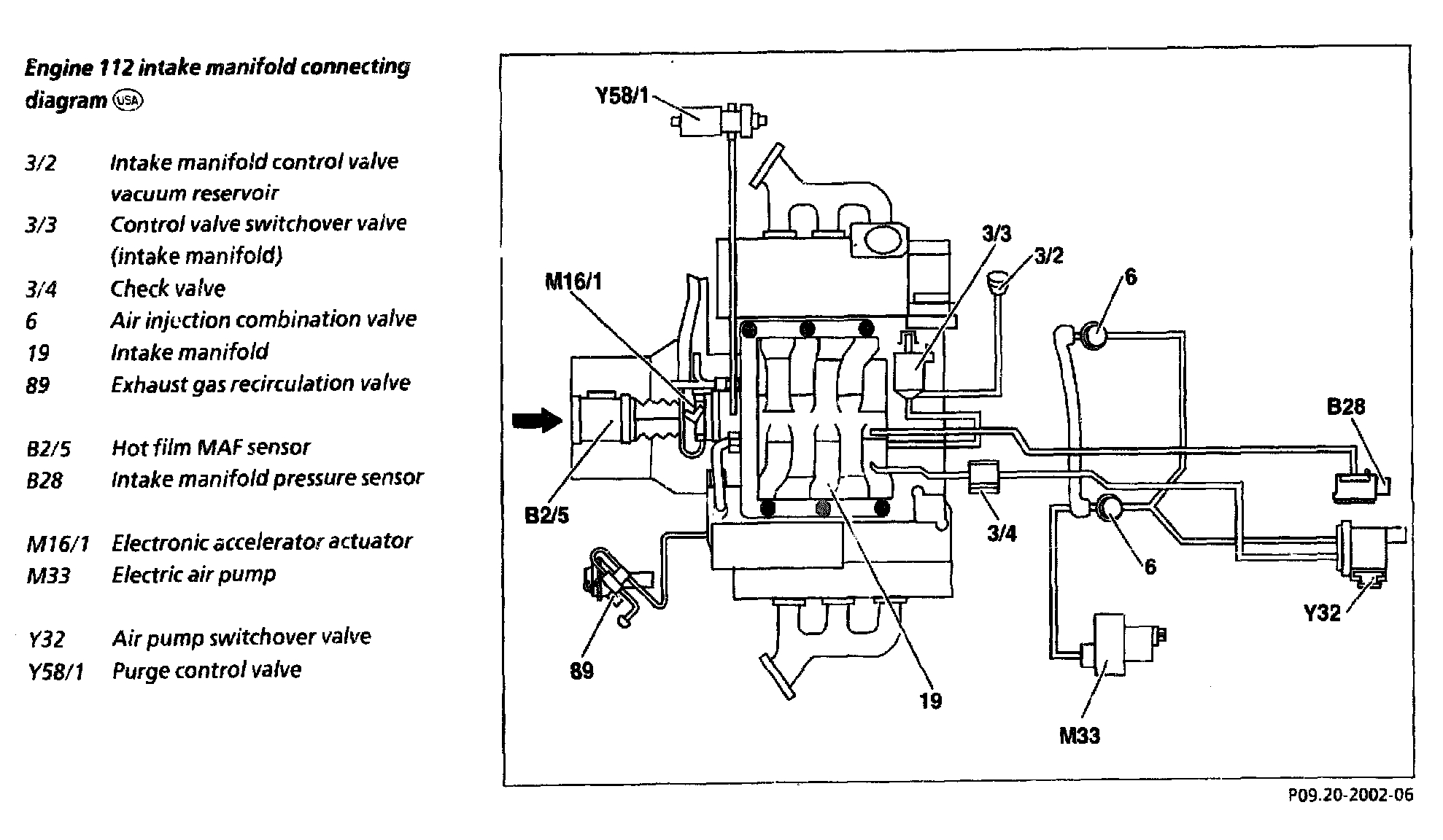

Engine 112 Intake Manifold Connecting Diagram (USA):
