Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Service and Repair >> Removal and Replacement

Removal and Replacement

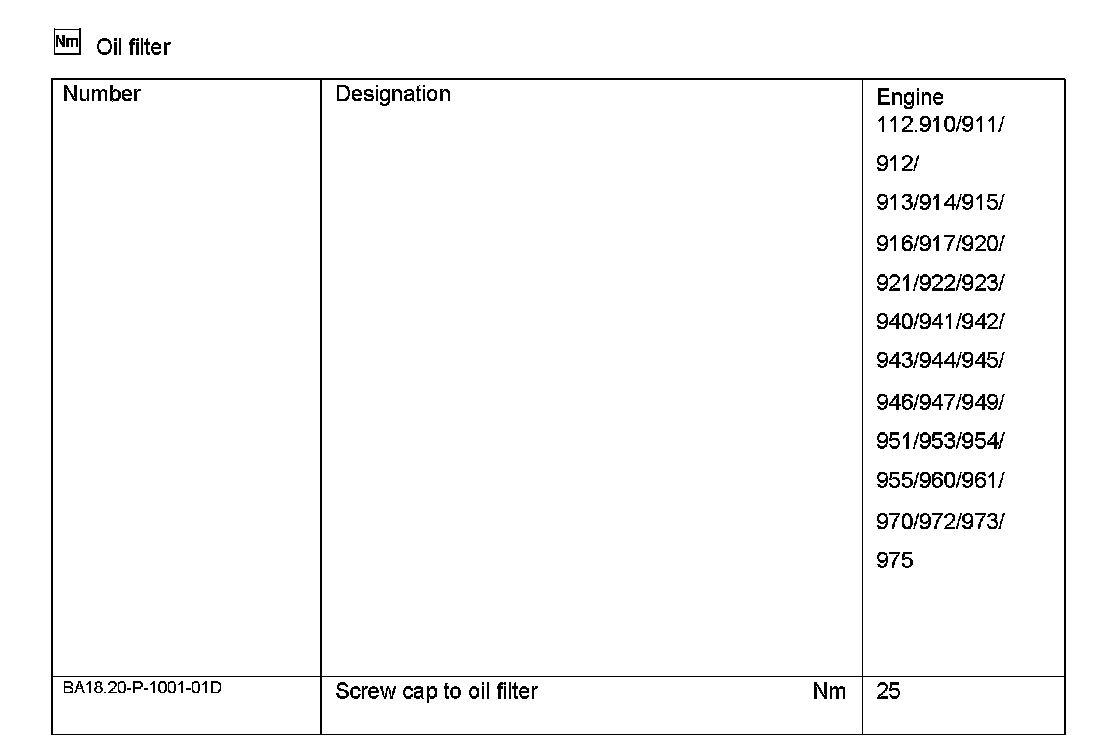

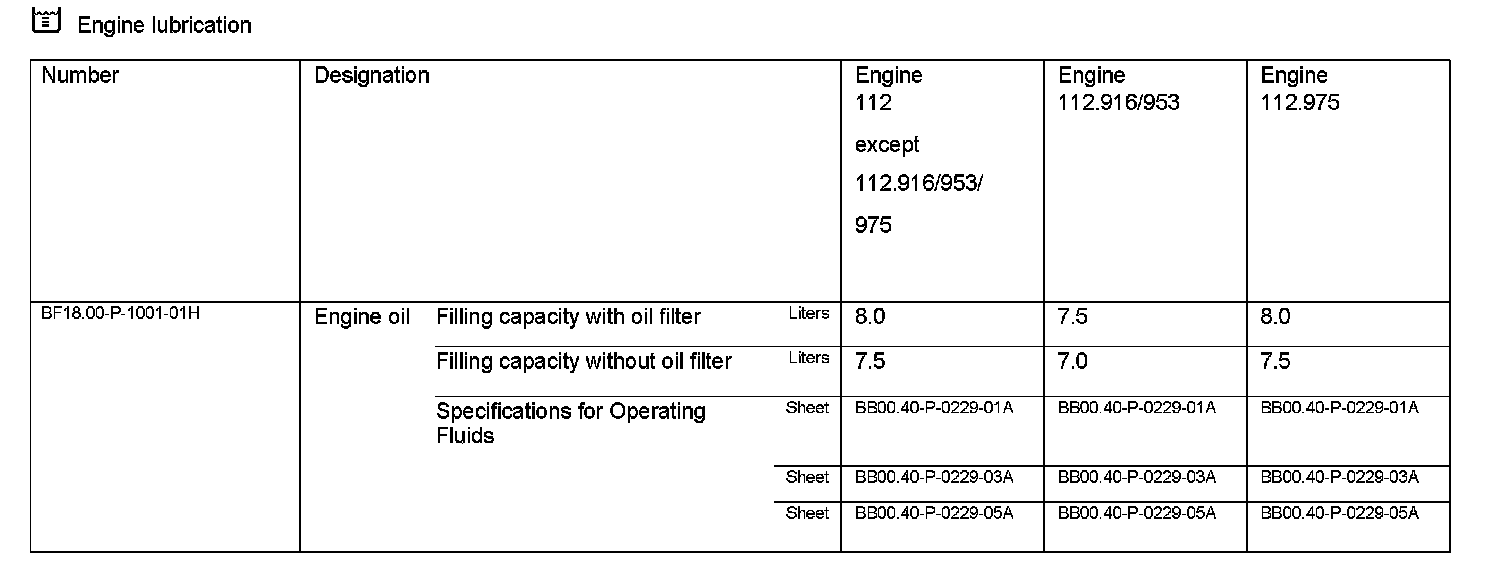

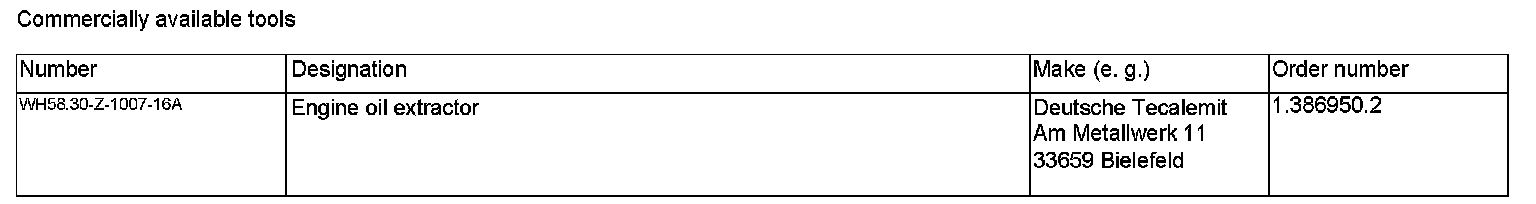

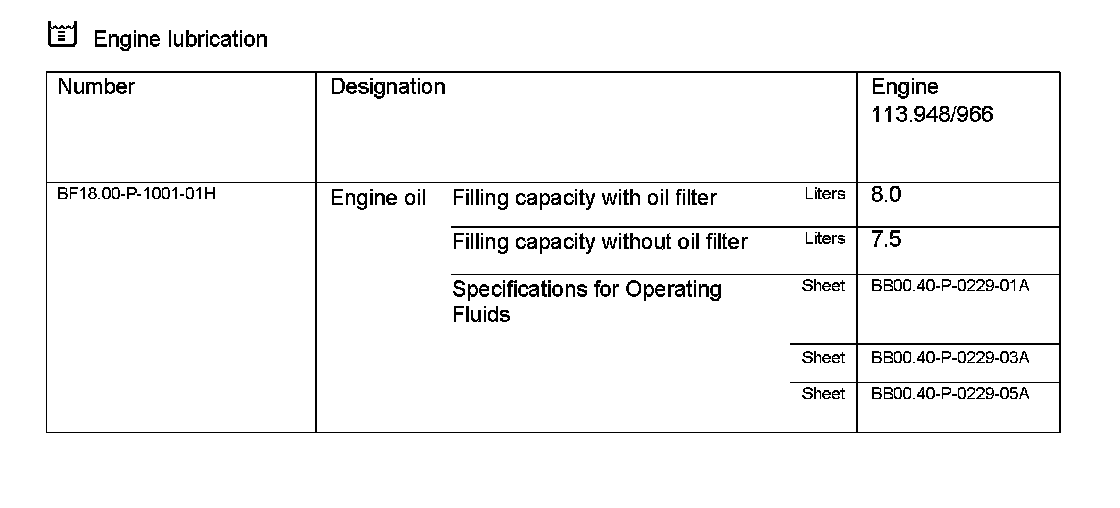

Engine Oil and Filter Change

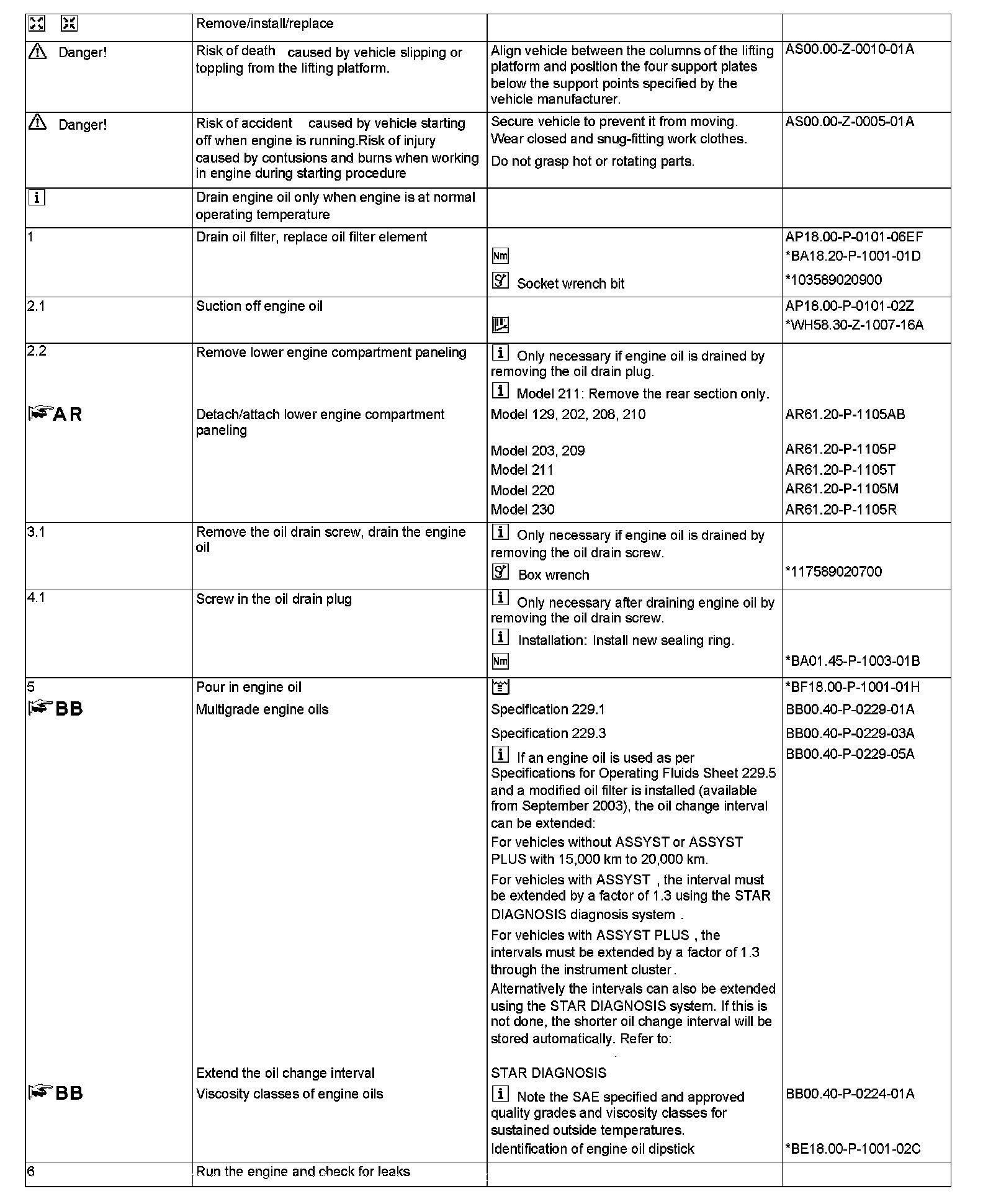

Steps 1-6:

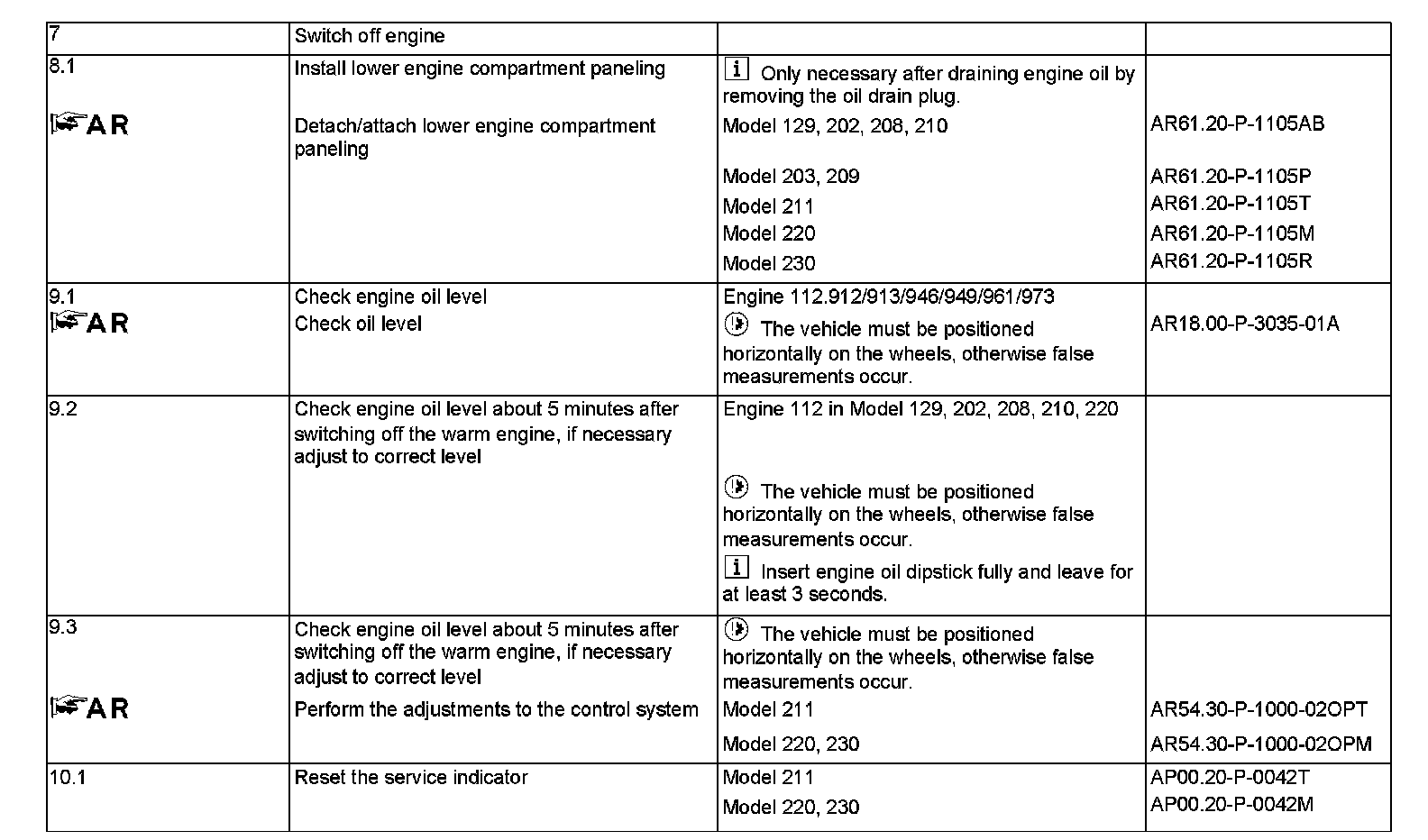

Steps 7-10:
