AR18.10-P-6020PV Remove/Install Oil Pump
AR18.10-P-6020PV Remove/Install Oil Pump
AR18.10-P-6020PV Remove/install oil pump

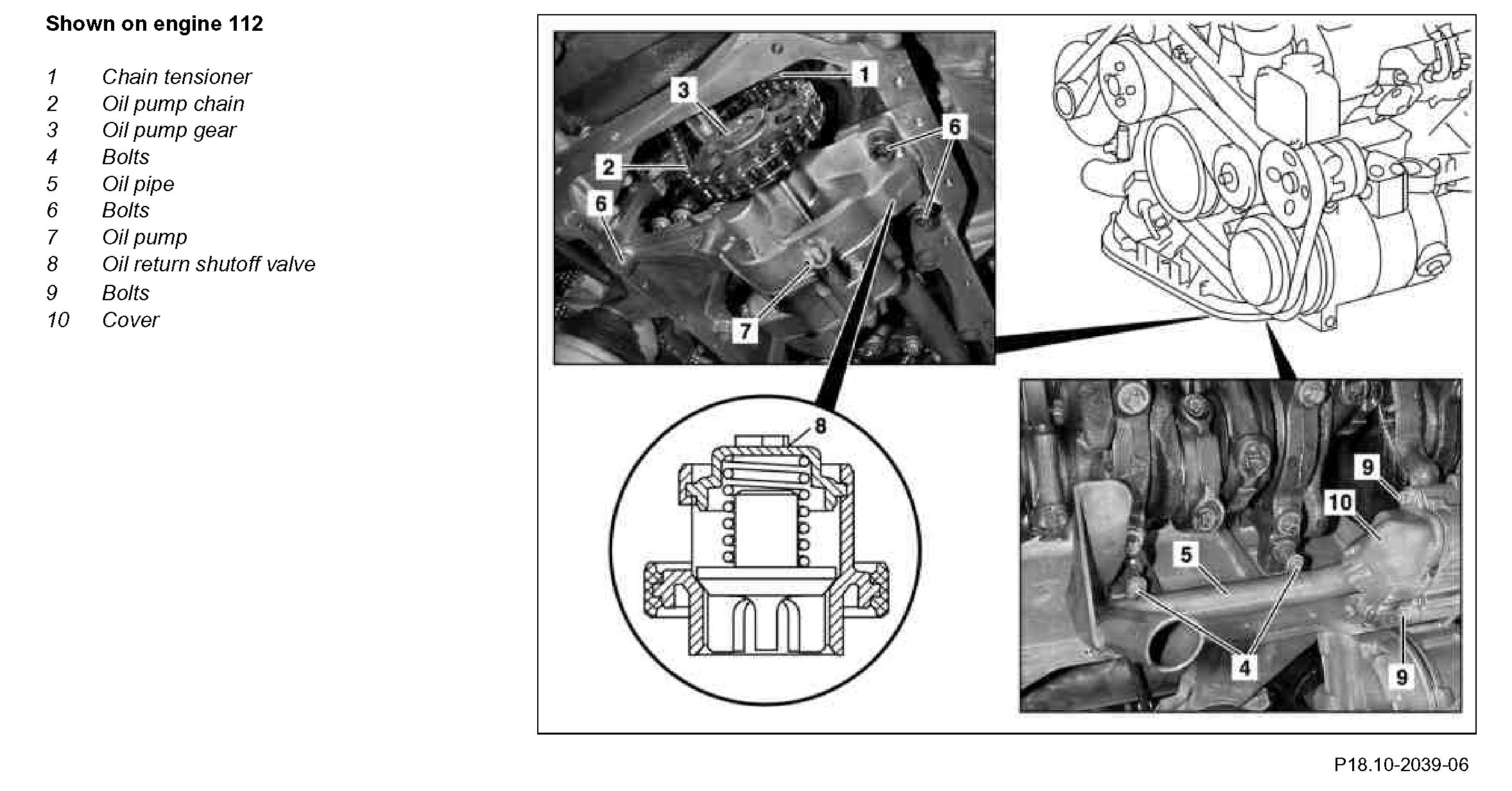

Component Identification:

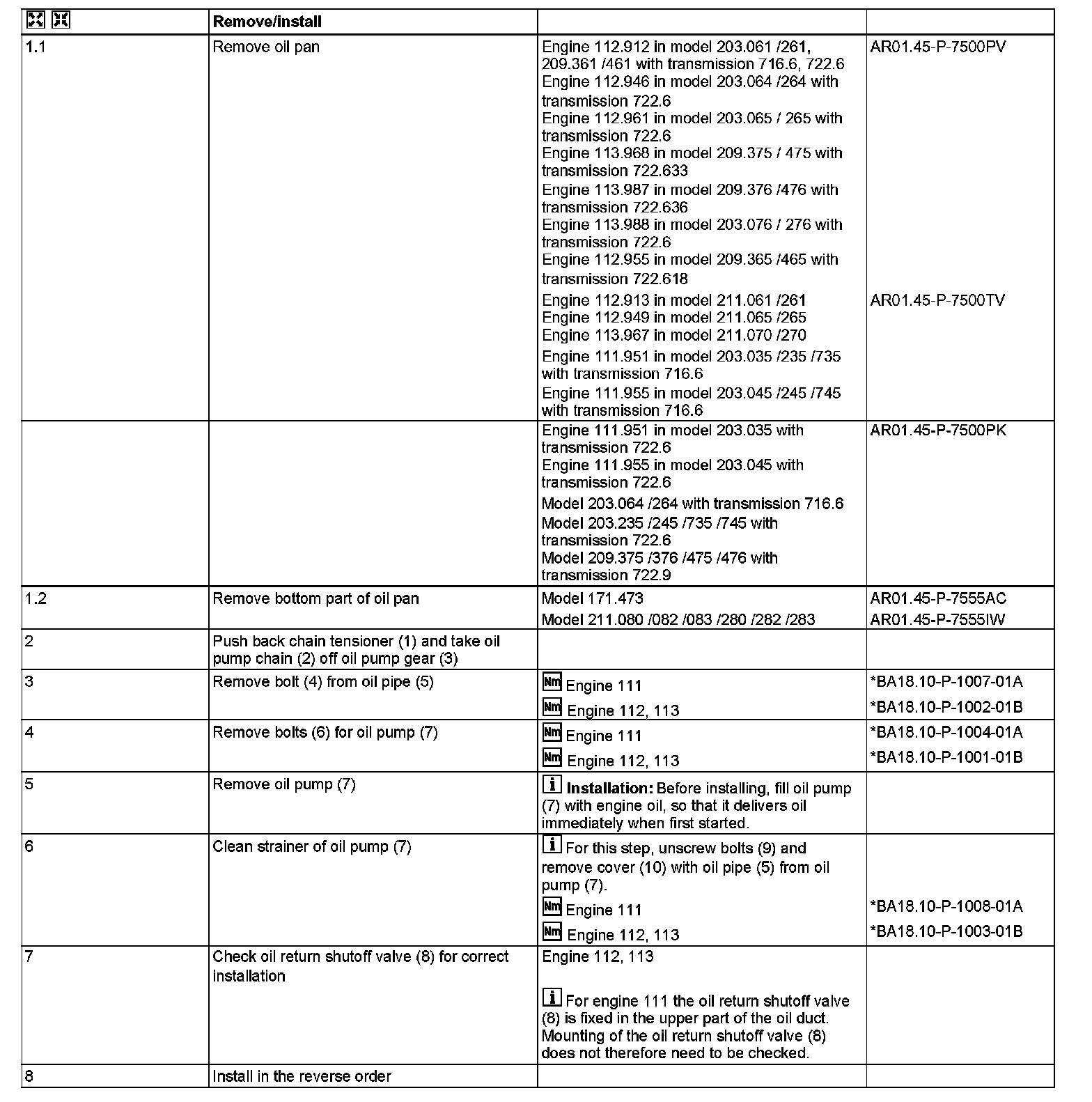

Steps 1.1-8:

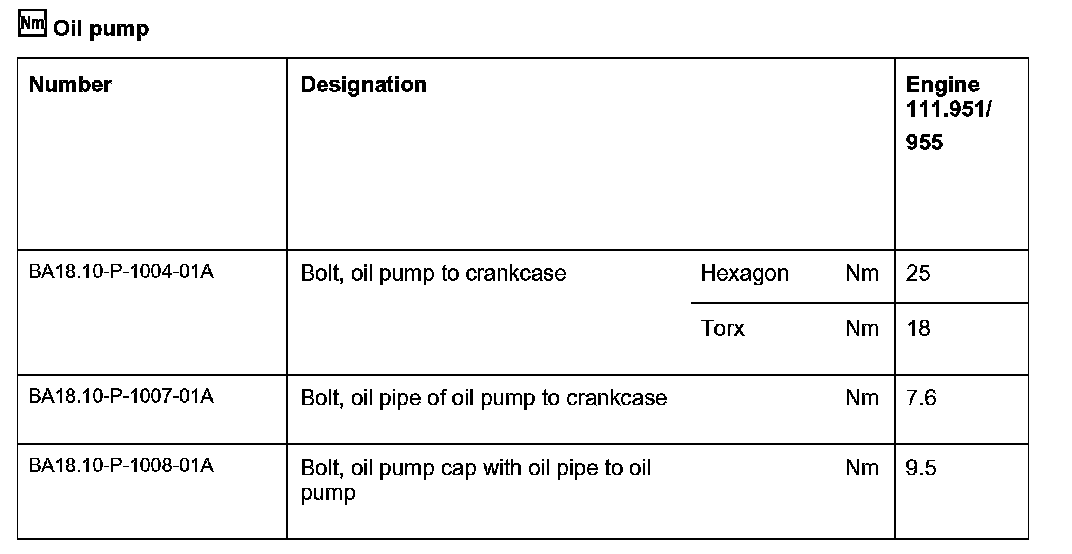

Oil pump:

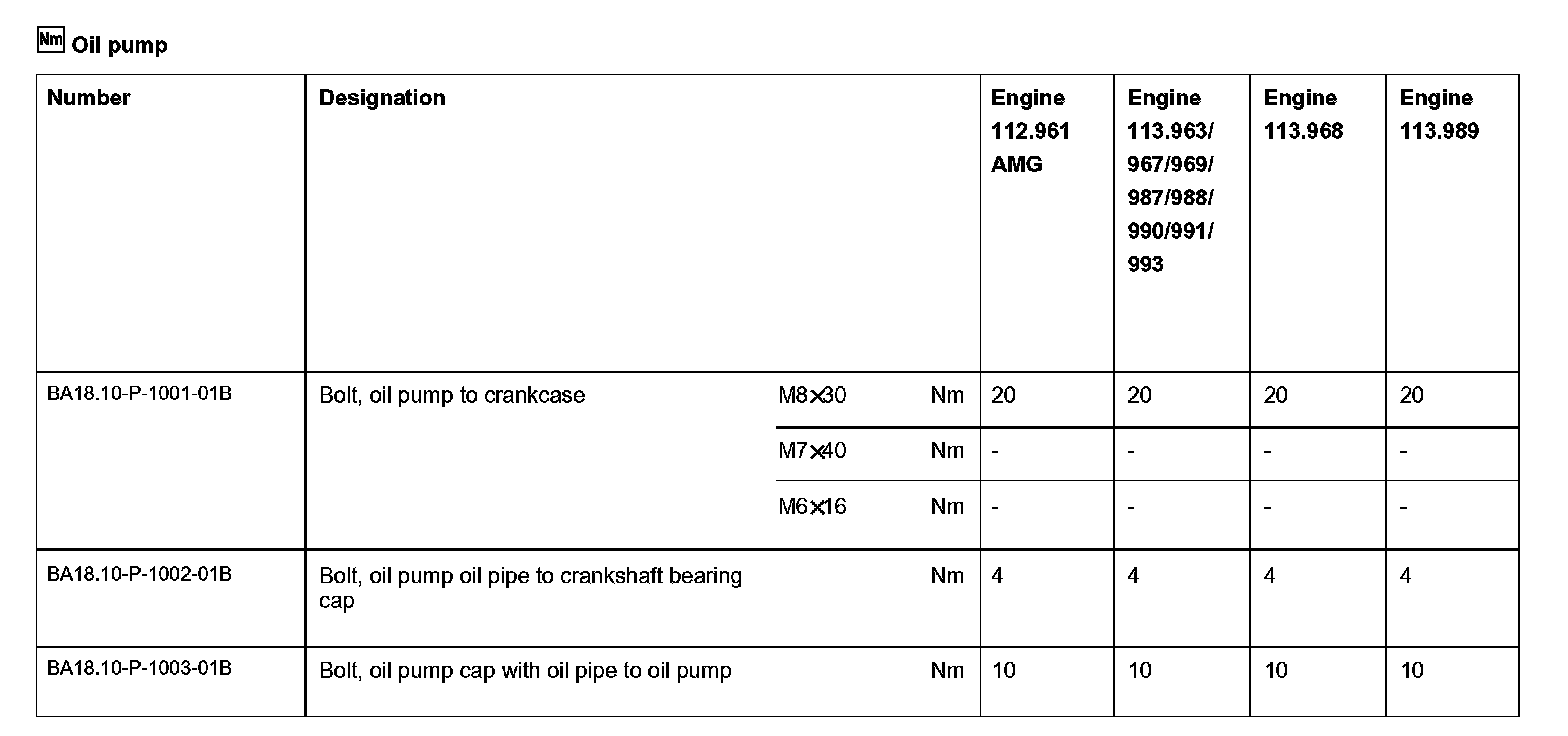

Oil pump:

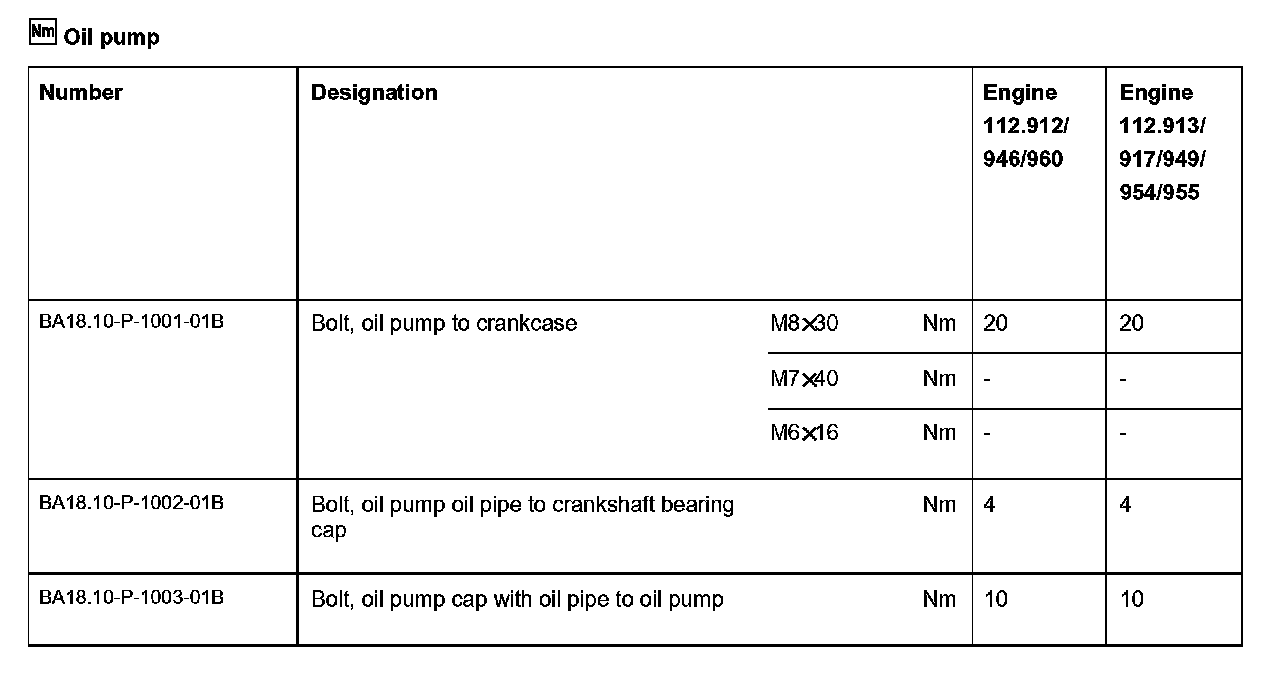

Oil pump:
