AR03.10-P-7311BV Remove/Install Piston Rings

AR03.10-P-7311BV Remove/Install Piston Rings
ENGINES 113 in MODEL 129, 163, 202, 203, 208, 209, 210, 211, 215, 220, 230
ENGINES 112 /945, 113.962 /982

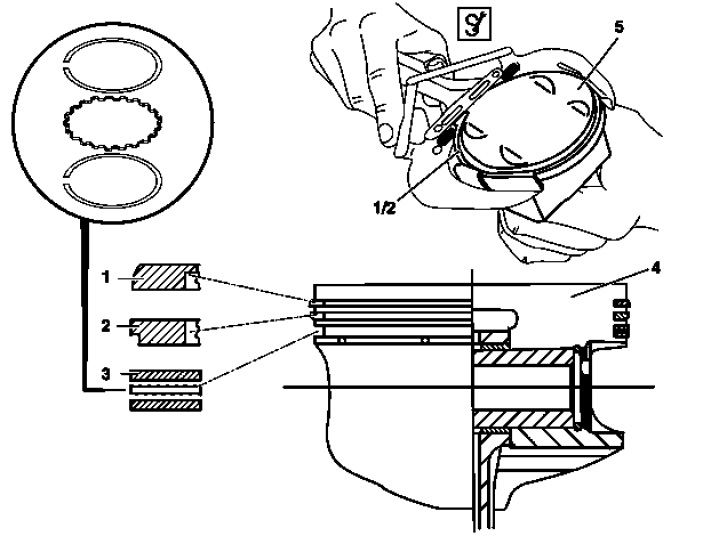

1 Compression ring (plain compression ring)
2 Compression ring (taper-faced hook scraper ring)
3 Oil scraper ring
4 Piston
5 Piston crown











000 589 51 37 00
Pliers
