AR03.10-P-6111-01VT Check Connecting Rod Bolts



AR03.10-P-6111-01VT Check connecting rod bolts

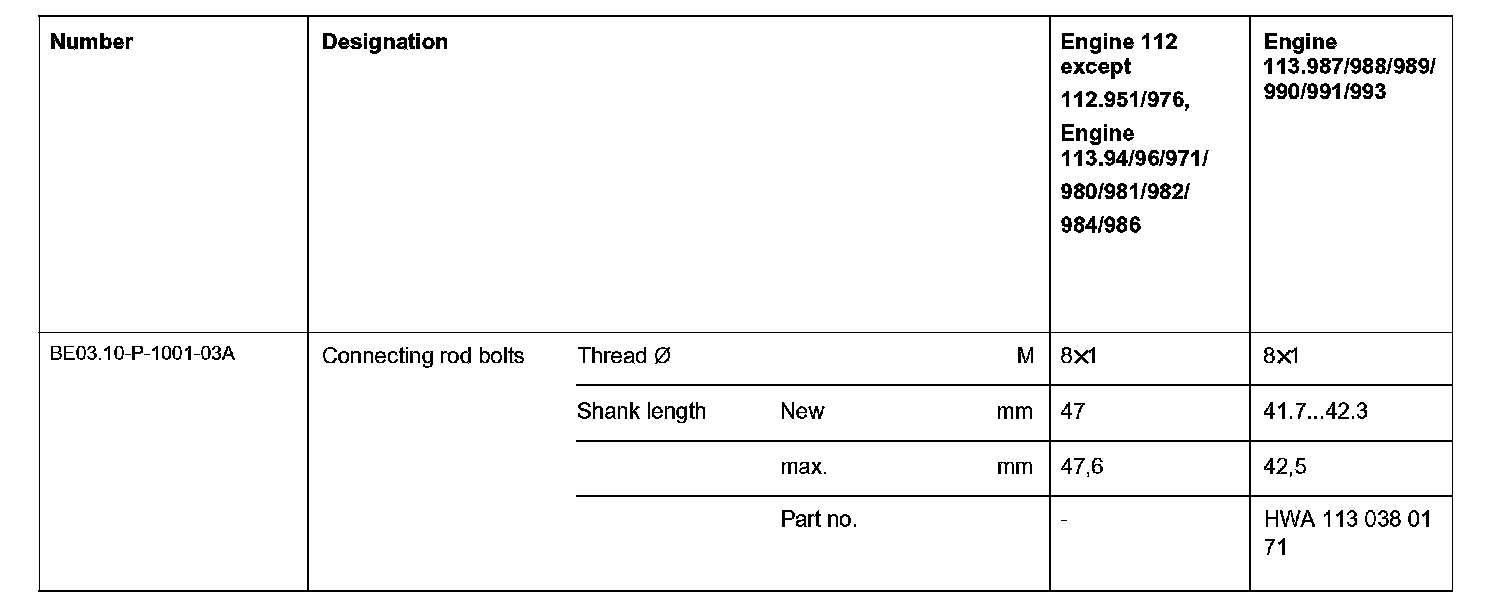

Connecting rod bolts:

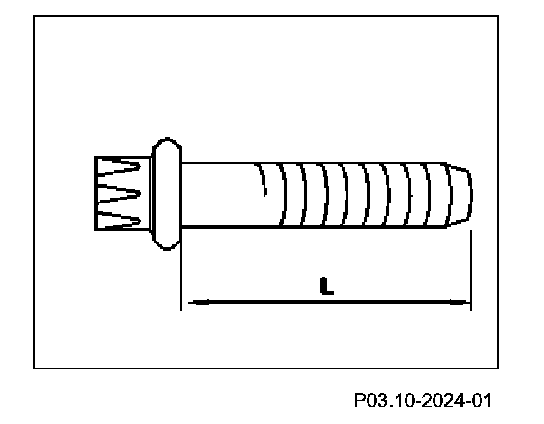

Connecting rod bolt shank length inspection:





1 Measure shank length (L).

If shank length (L) exceeds the maximum permitted length, then the connecting rod bolt must be replaced.
