AR03.10-P-6111-01BV Inspect Conrod Bolts

Inspect conrod bolts

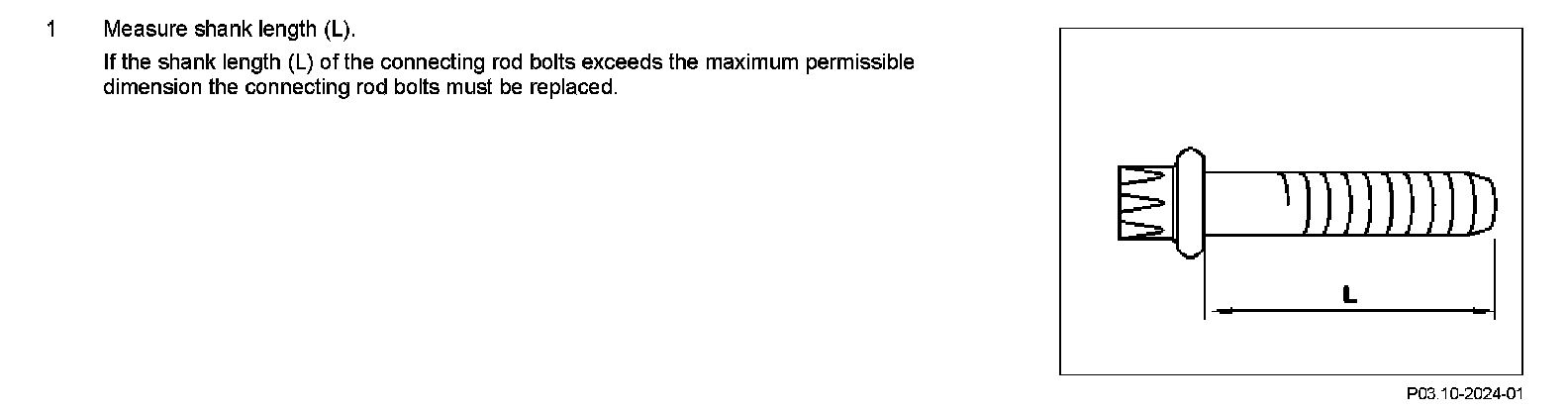

1. Measure shank length (L).

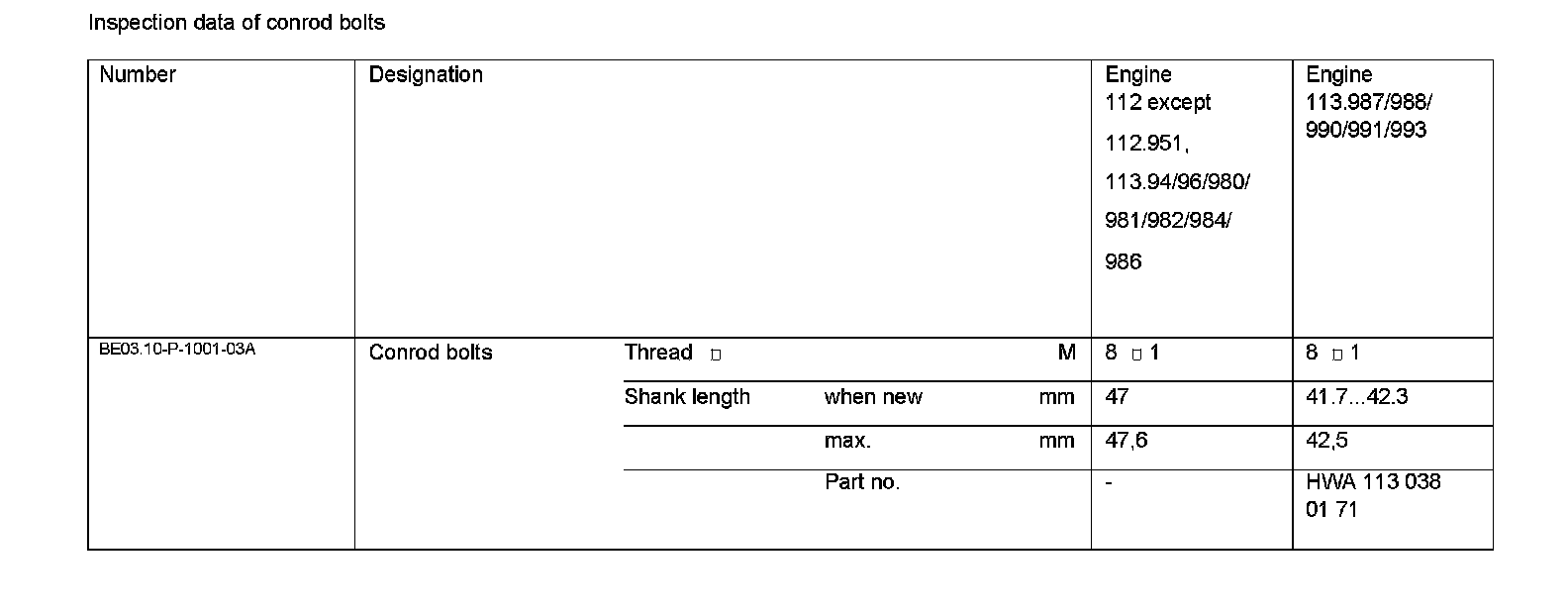

If the shank length (L) of the connecting rod bolts exceeds the maximum permissible dimension the connecting rod bolts must be replaced.
