AR03.10-P-6111-02BV Tightening Conrod Bolts

Tightening conrod bolts

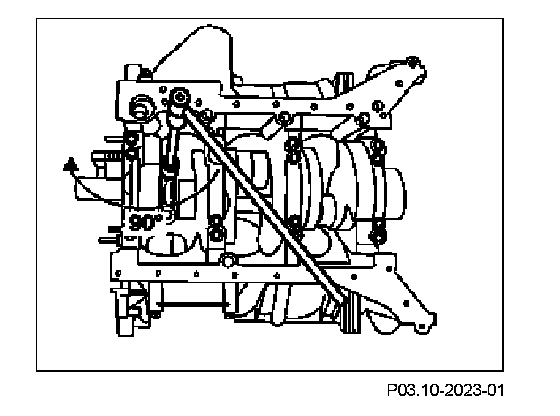

Shown on engine 112

1. Lubricate thread and bolt head contact surface of conrod bolts with engine oil.

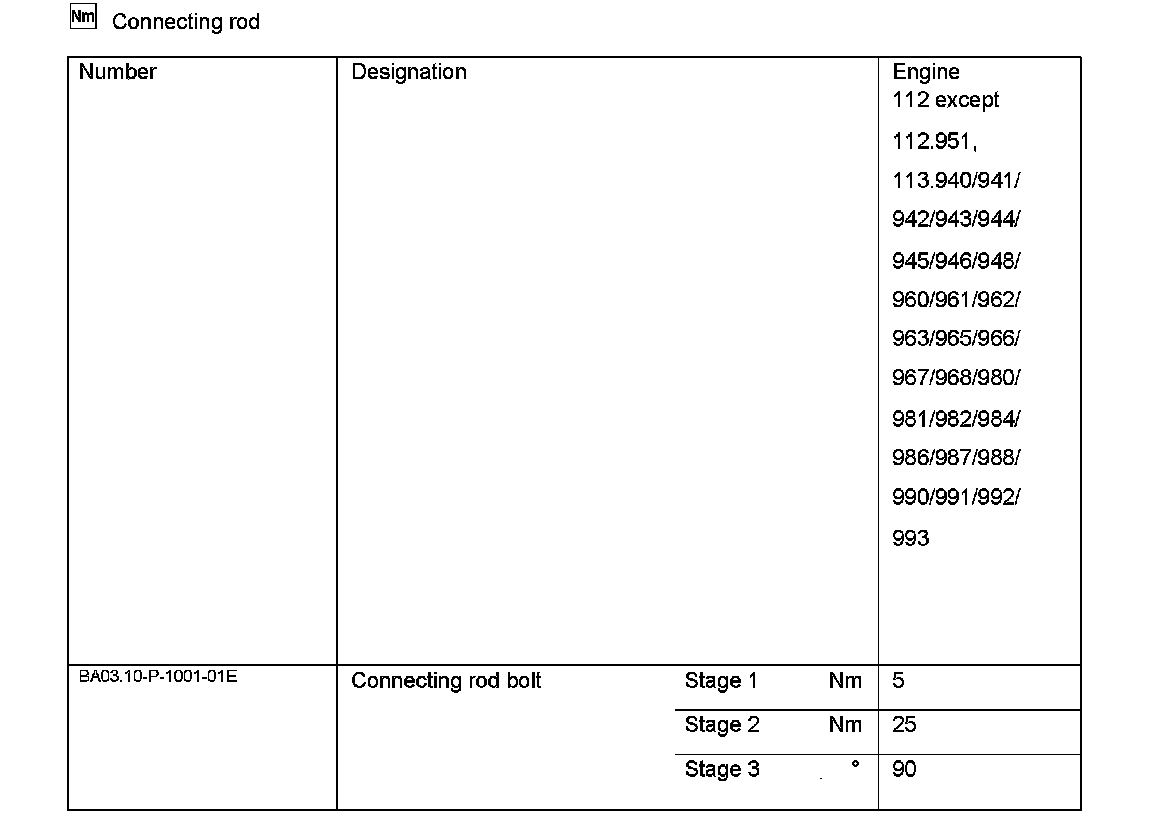

2. Screw in conrod bolts and tighten to step.
3. Tighten conrod bolts to step.
4. Tighten conrod bolts using an angle wrench to step.
If no torquing angle wrench is available, the conrod screws can be torqued further by the specified angle in a single operation using a wrench and tommy bar. Do not use a flexi-rod torque wrench for tightening in order to avoid any angle errors.
