AR20.00-P-1010P Inspecting Cooling System For Leaks
AR20.00-P-1010P Inspecting Cooling System For Leaks
Inspecting
cooling system
for leaks

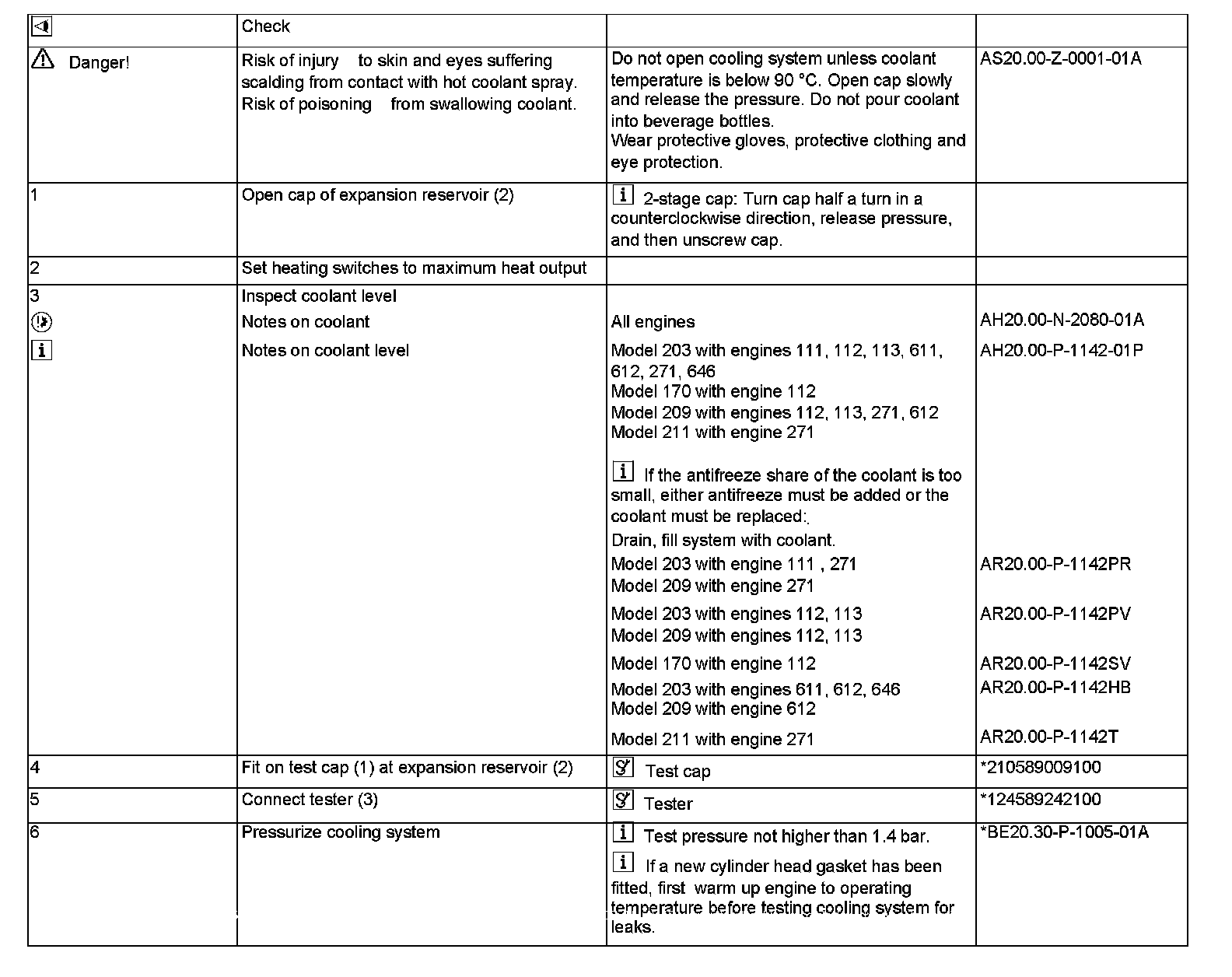

Steps 1-6:

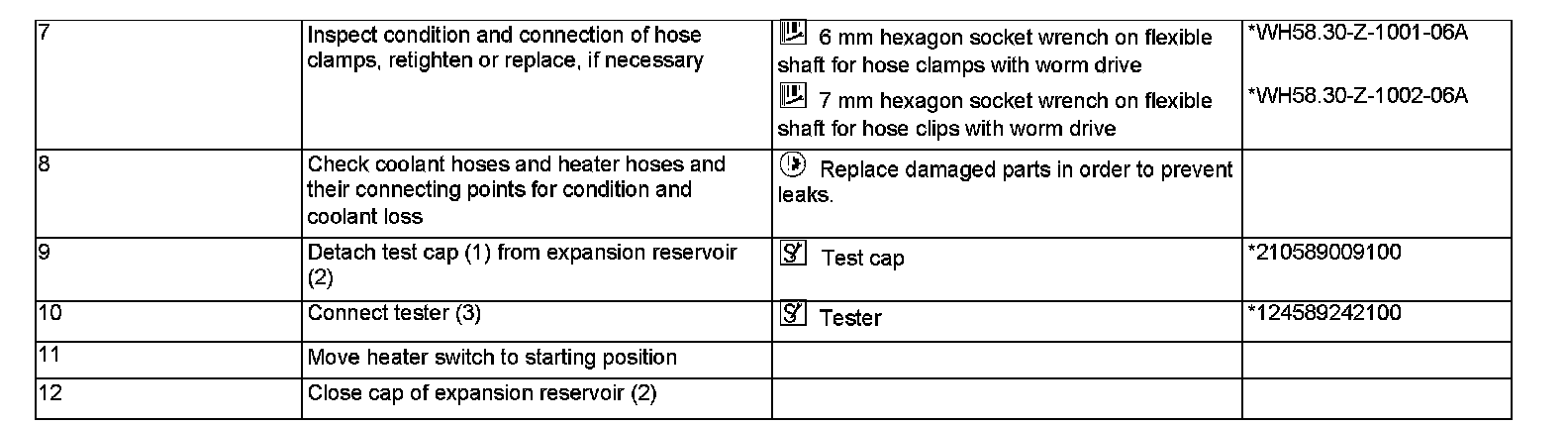

Steps 7-12:
