Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Radiator Cap >> Testing and Inspection

Radiator Cap: Testing and Inspection

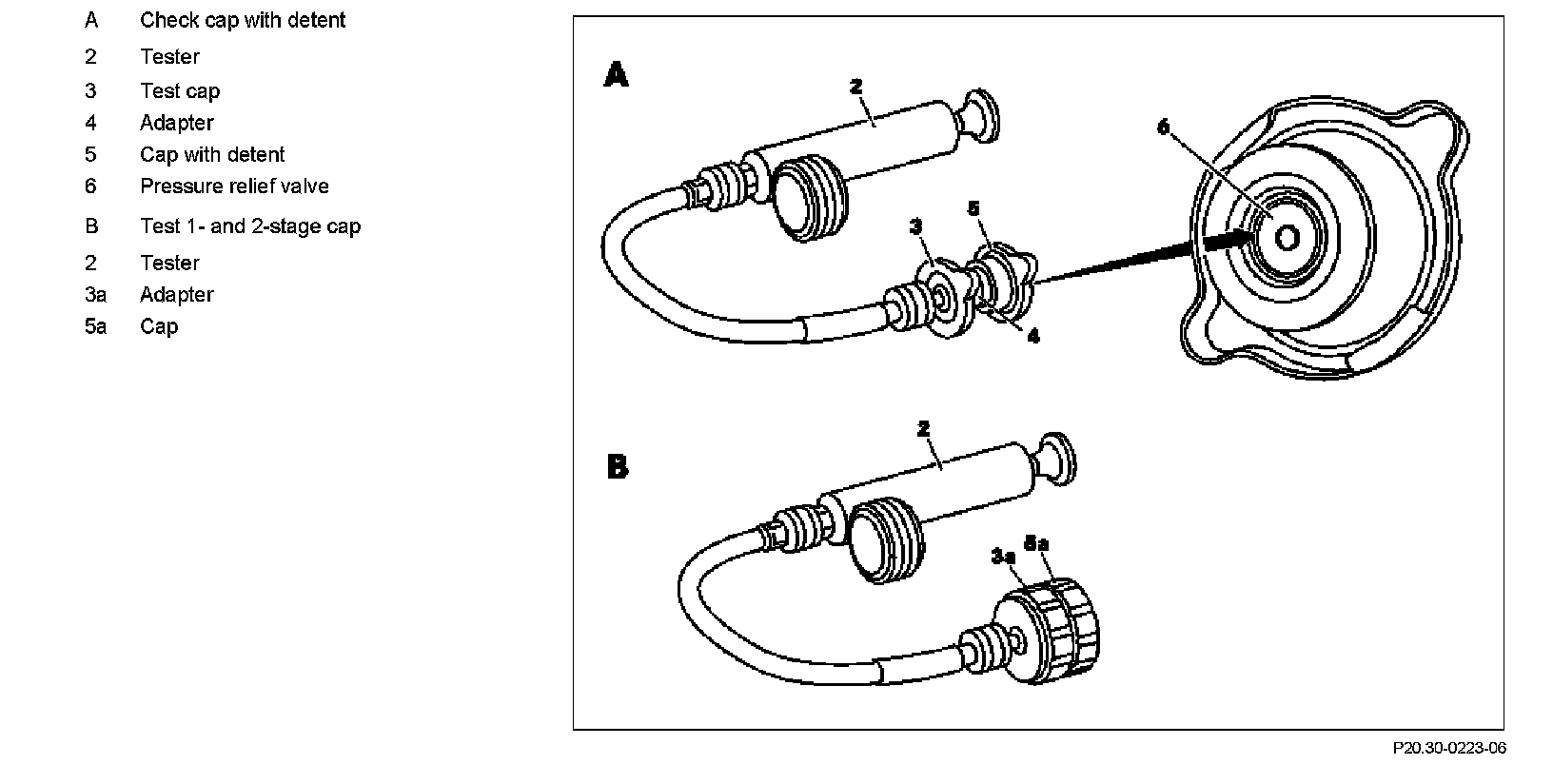

Test Cooling System Cap

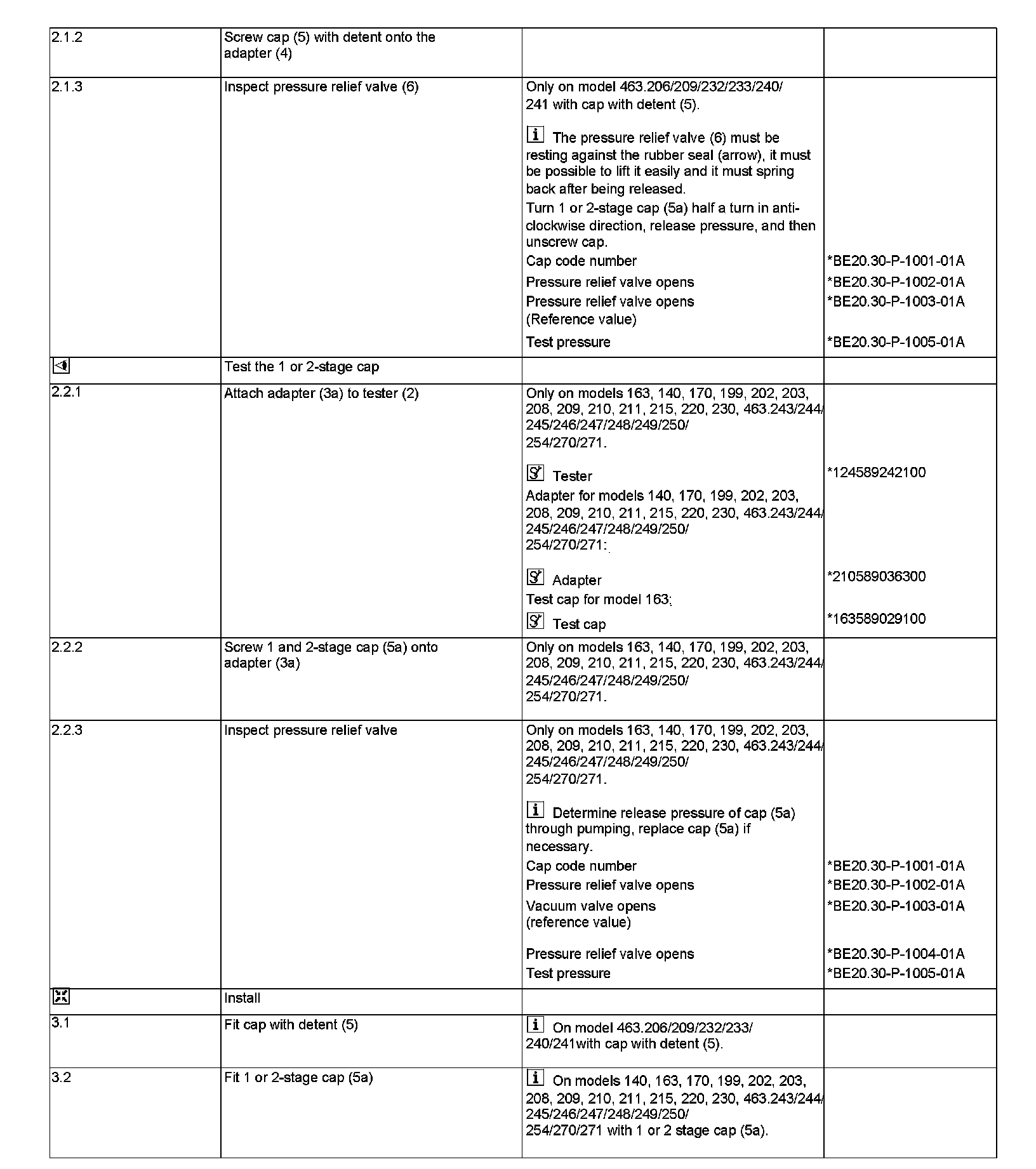

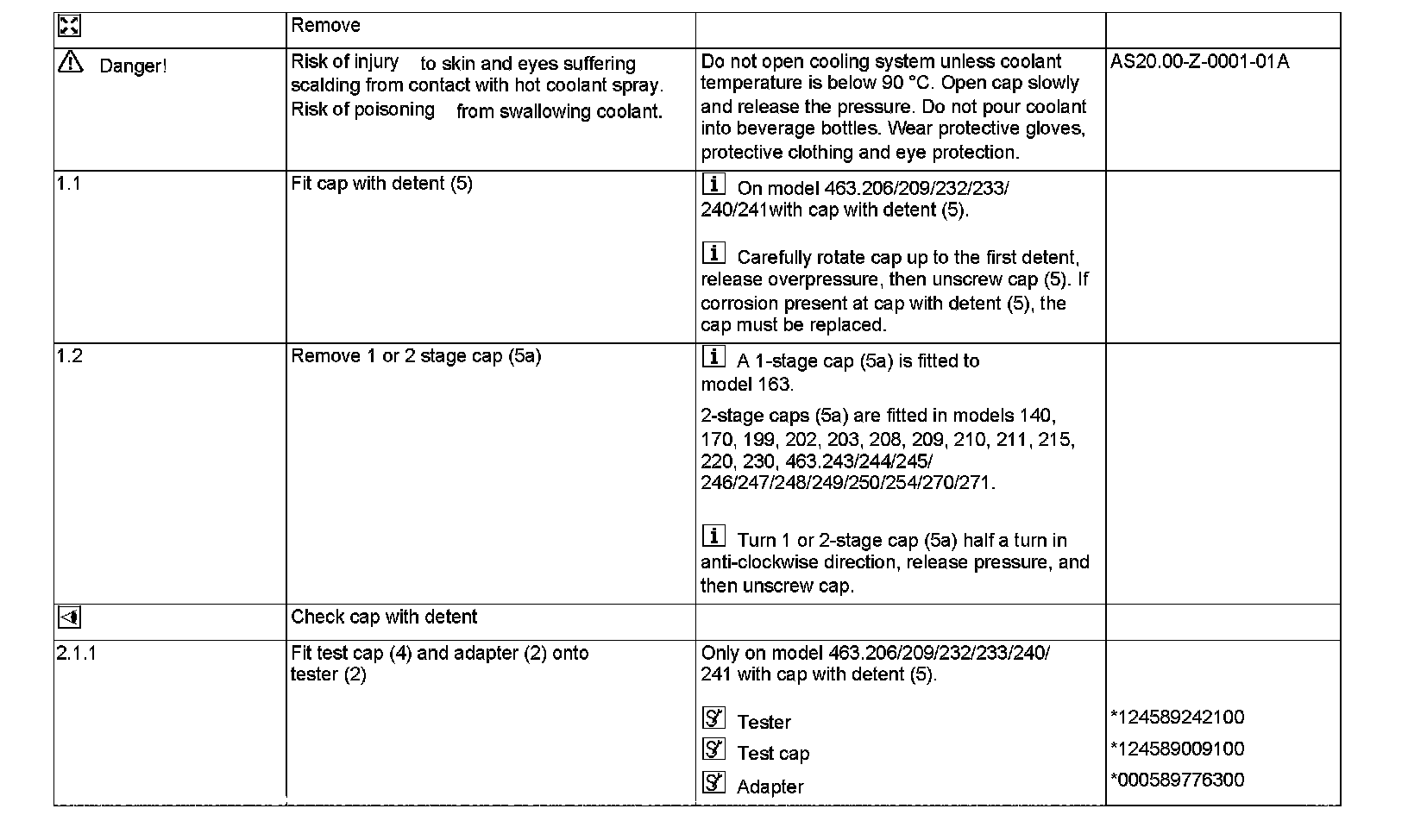

Steps 1-2:





Steps 2-3:





Part 1 Of 2:





Part 2 Of 2:
