Function Diagram For Windshield Wiper PE82.30-U-2050BA
Function Diagram For Windshield Wiper PE82.30-U-2050BA
Function Diagram For Windshield Wiper PE82.30-U-2050BA

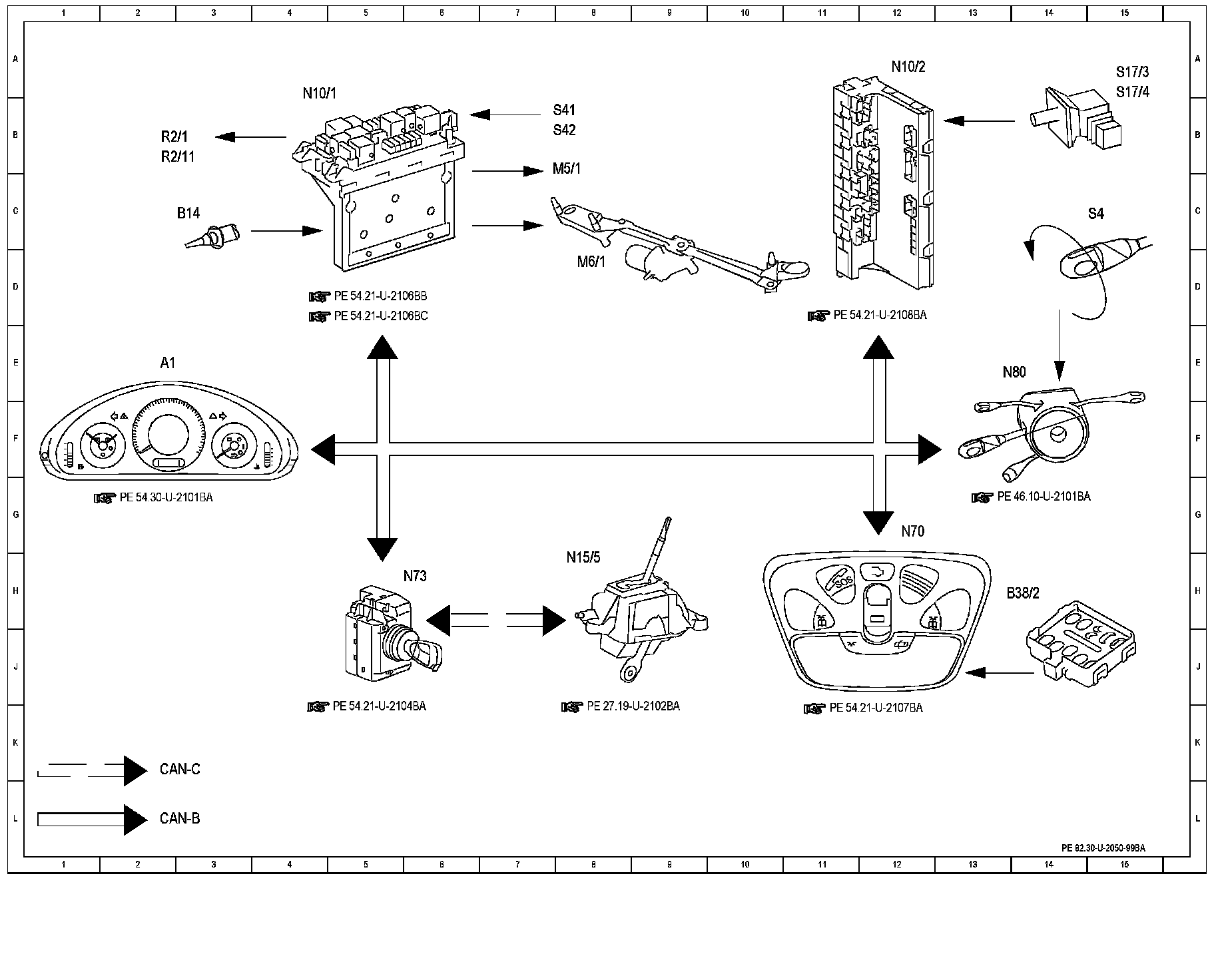

Function Diagram:

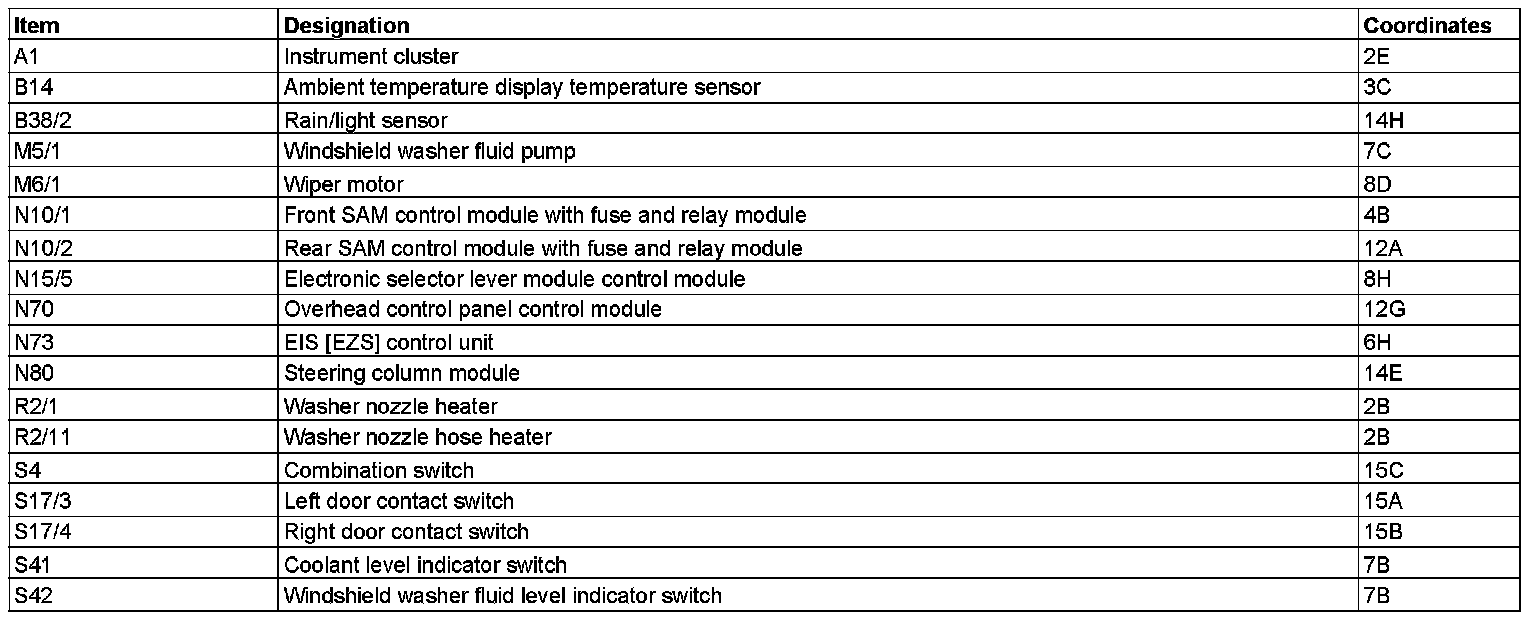

Component Description/Coordinates, A1 To S42:
