Function Diagram For Seat Belt Extender PE91.45-U-2050BA
Function Diagram For Seat Belt Extender PE91.45-U-2050BA
Function Diagram For Seat Belt Extender PE91.45-U-2050BA

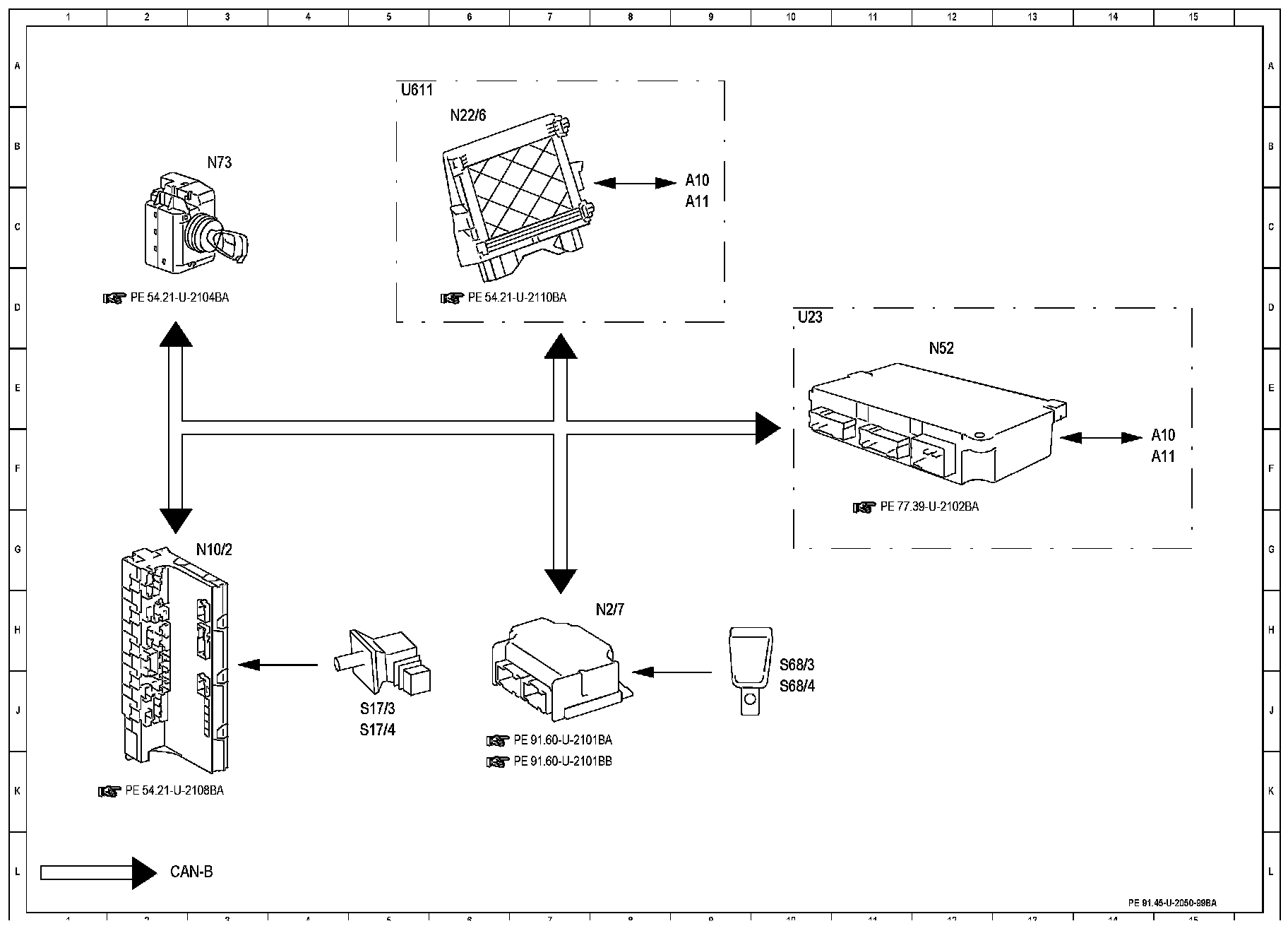

Function Diagram:

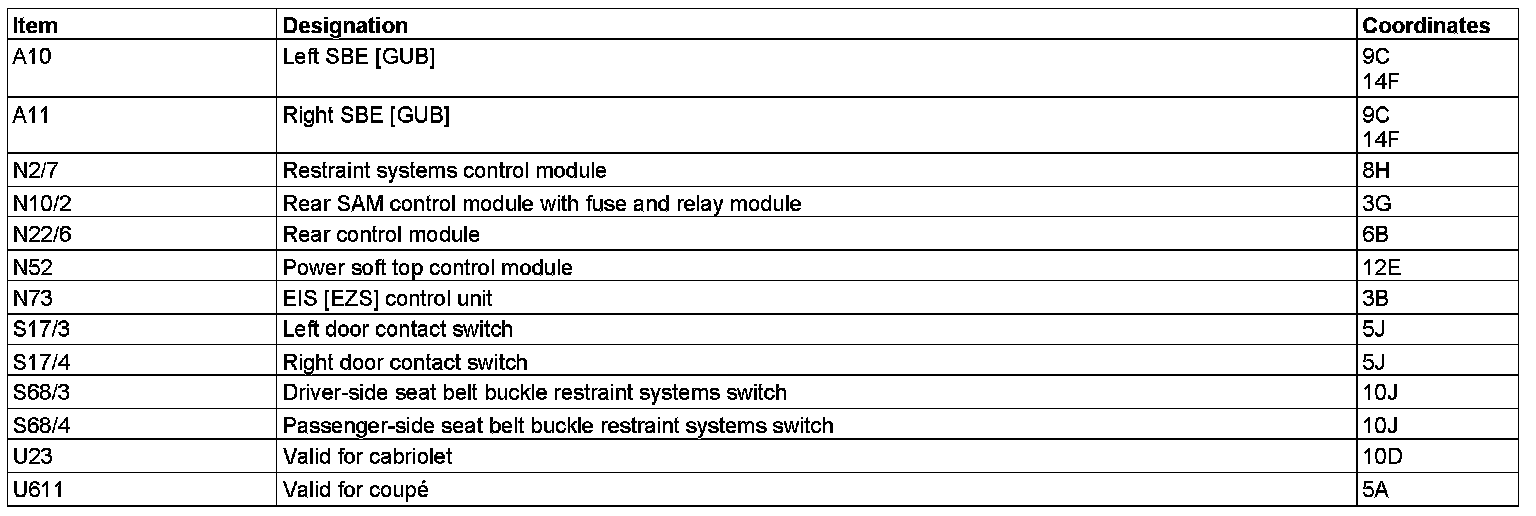

Component Description/Coordinates, A10 To U611:
