Function Diagram For Airbag PE91.60-U-2051BA



Function Diagram For Airbag PE91.60-U-2051BA
- with CODE (290) Windowbag
- with CODE (292) Left and right front sidebag
- with CODE (293) Left and right rear sidebag

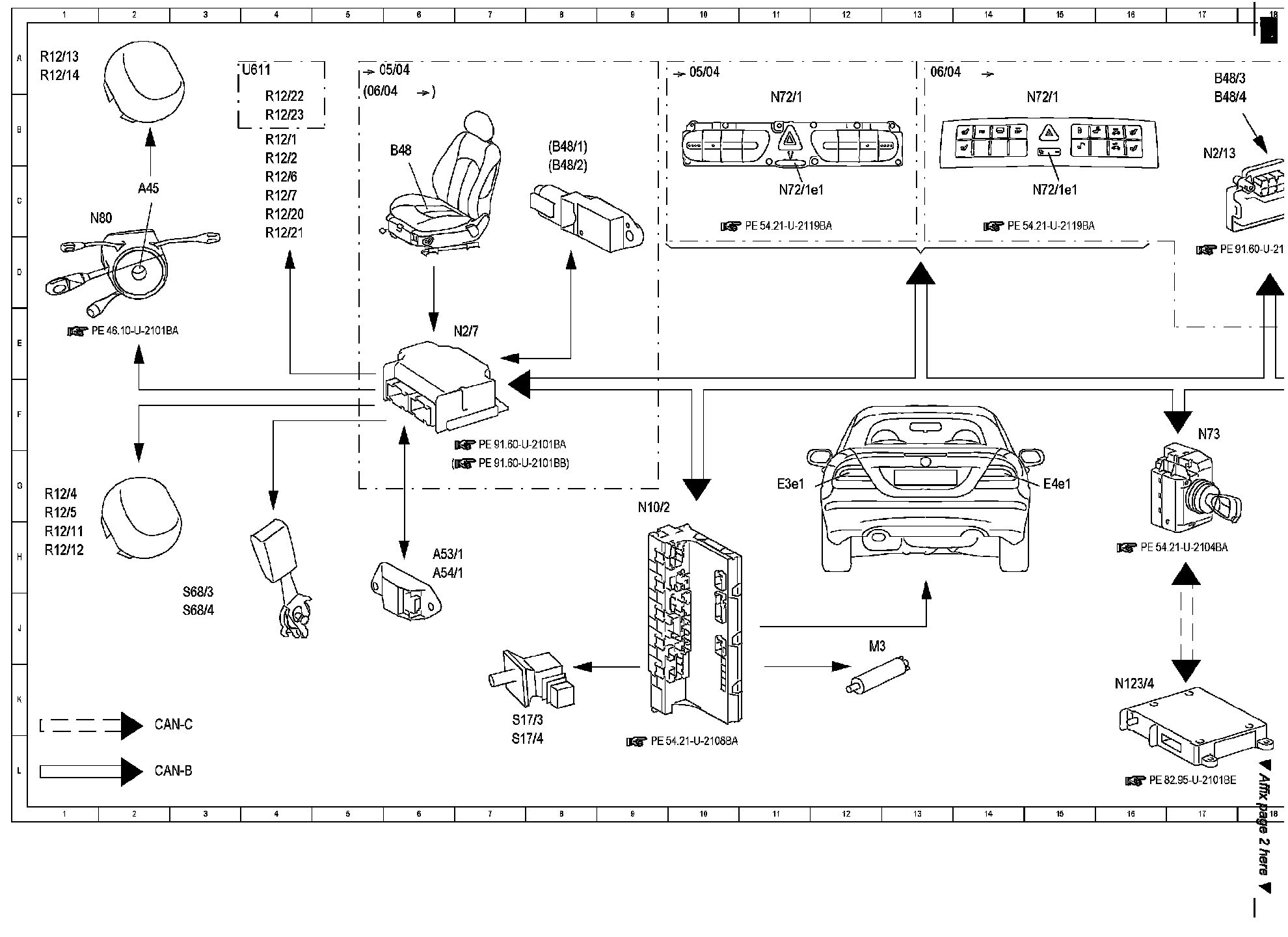

Function Diagram (Part 1):

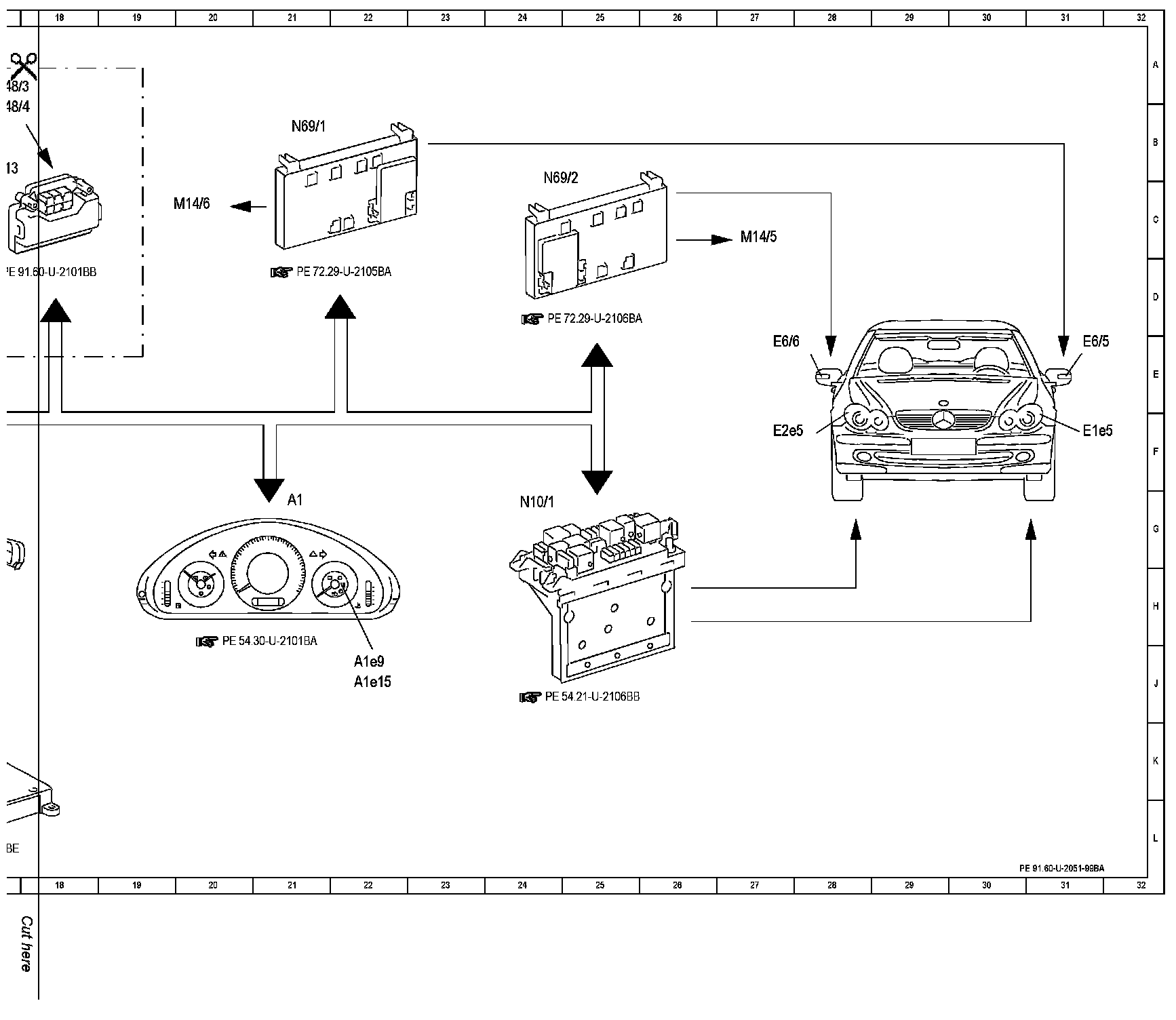

Function Diagram (Part 2):

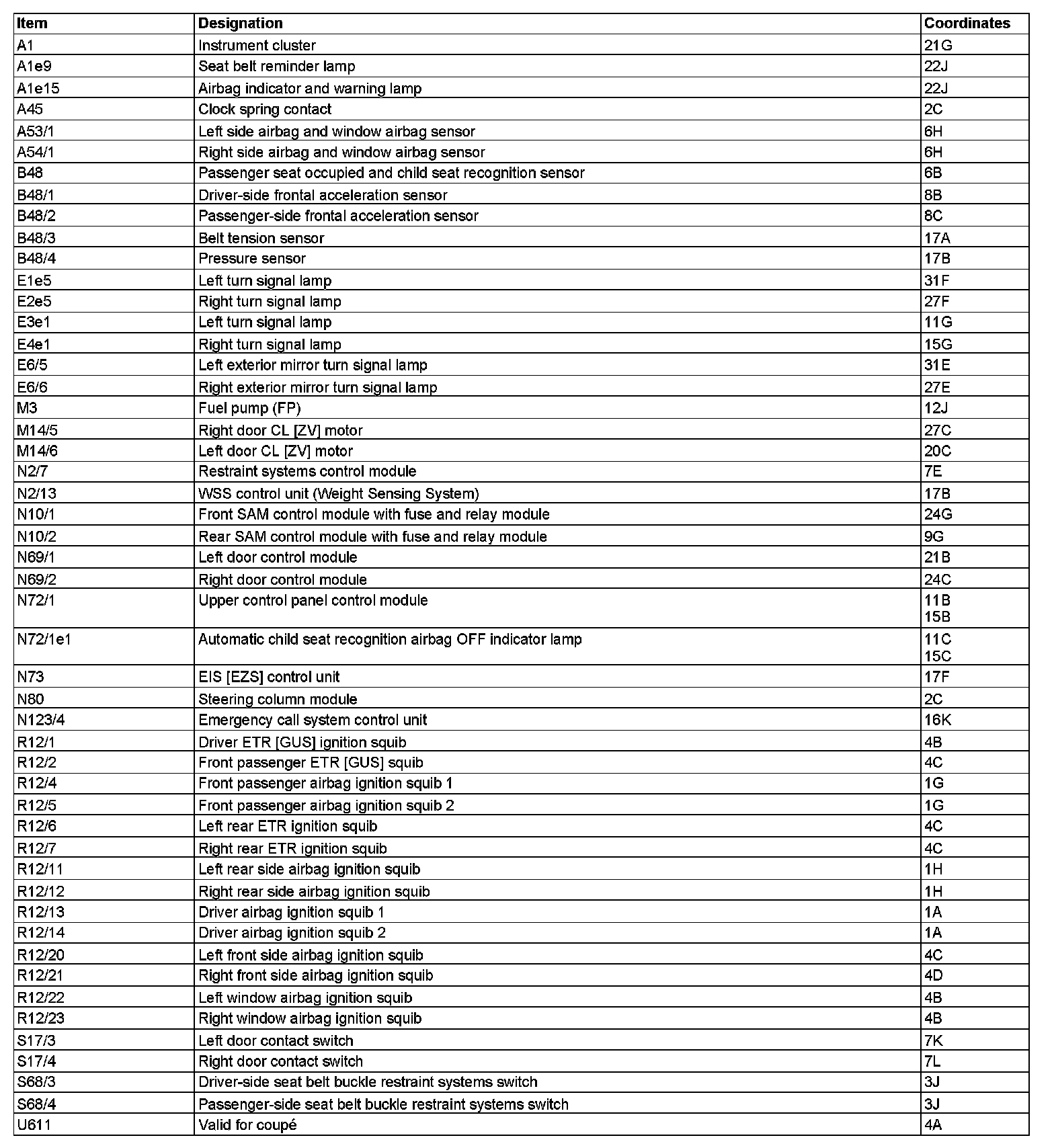

Component Description/Coordinates, A1 To U611:
