Sound Amplifier Control Module PE82.62-U-2101BA

Sound Amplifier Control Module PE82.62-U-2101BA
- with CODE (810) Sound system control module A2/13 with D2-bus

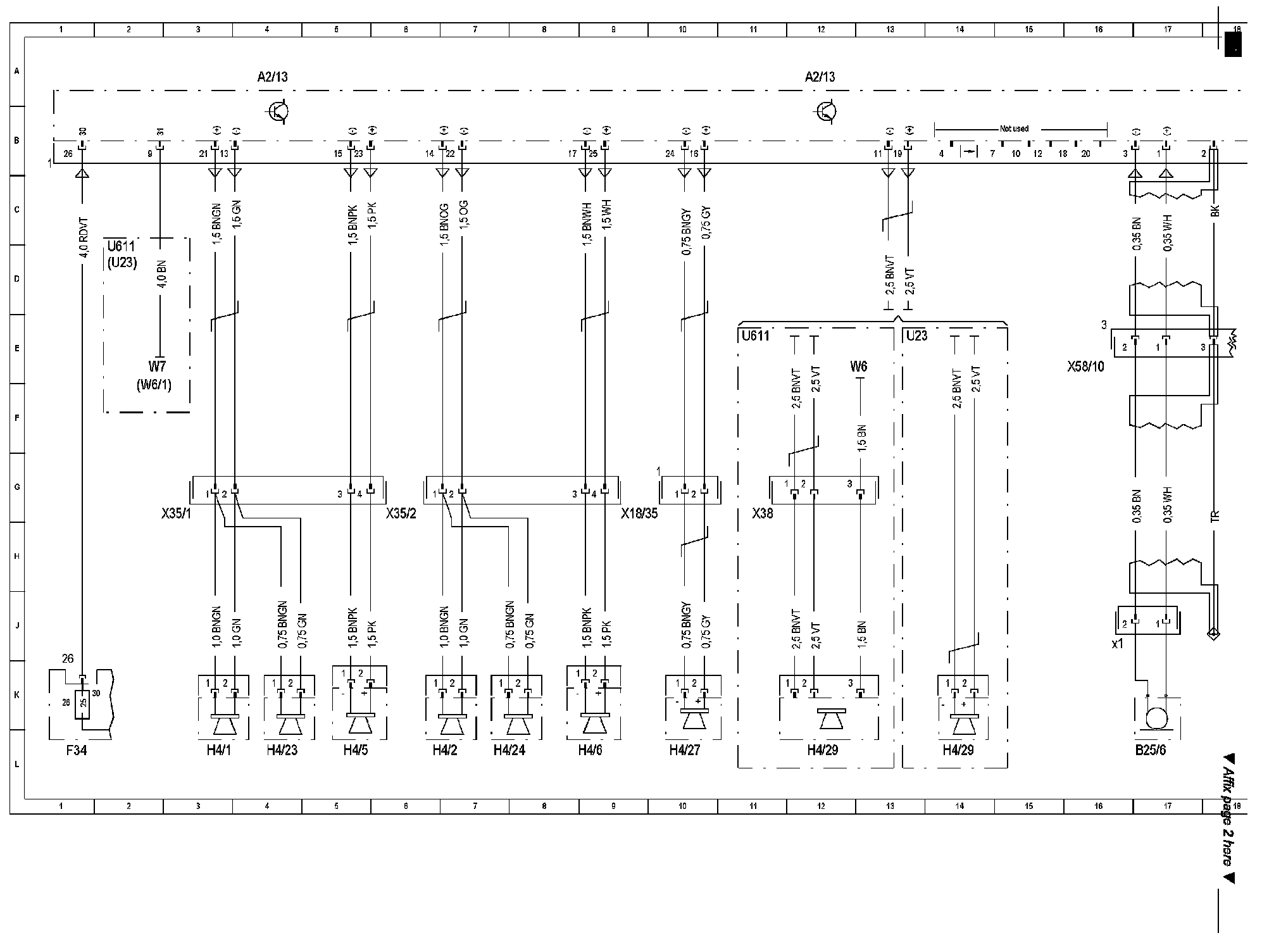

Wiring Diagram (Part 1):

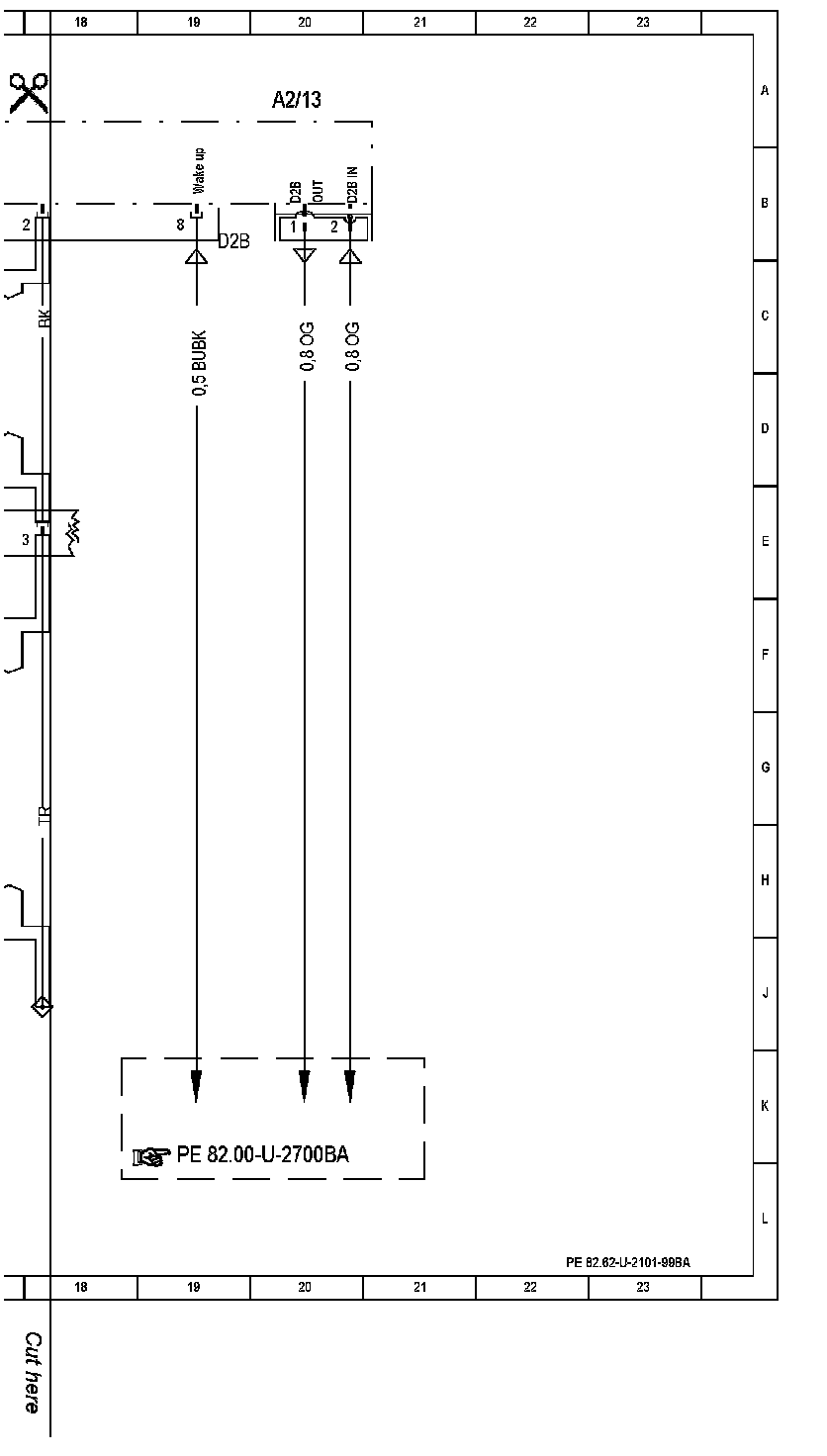

Wiring Diagram (Part 2):

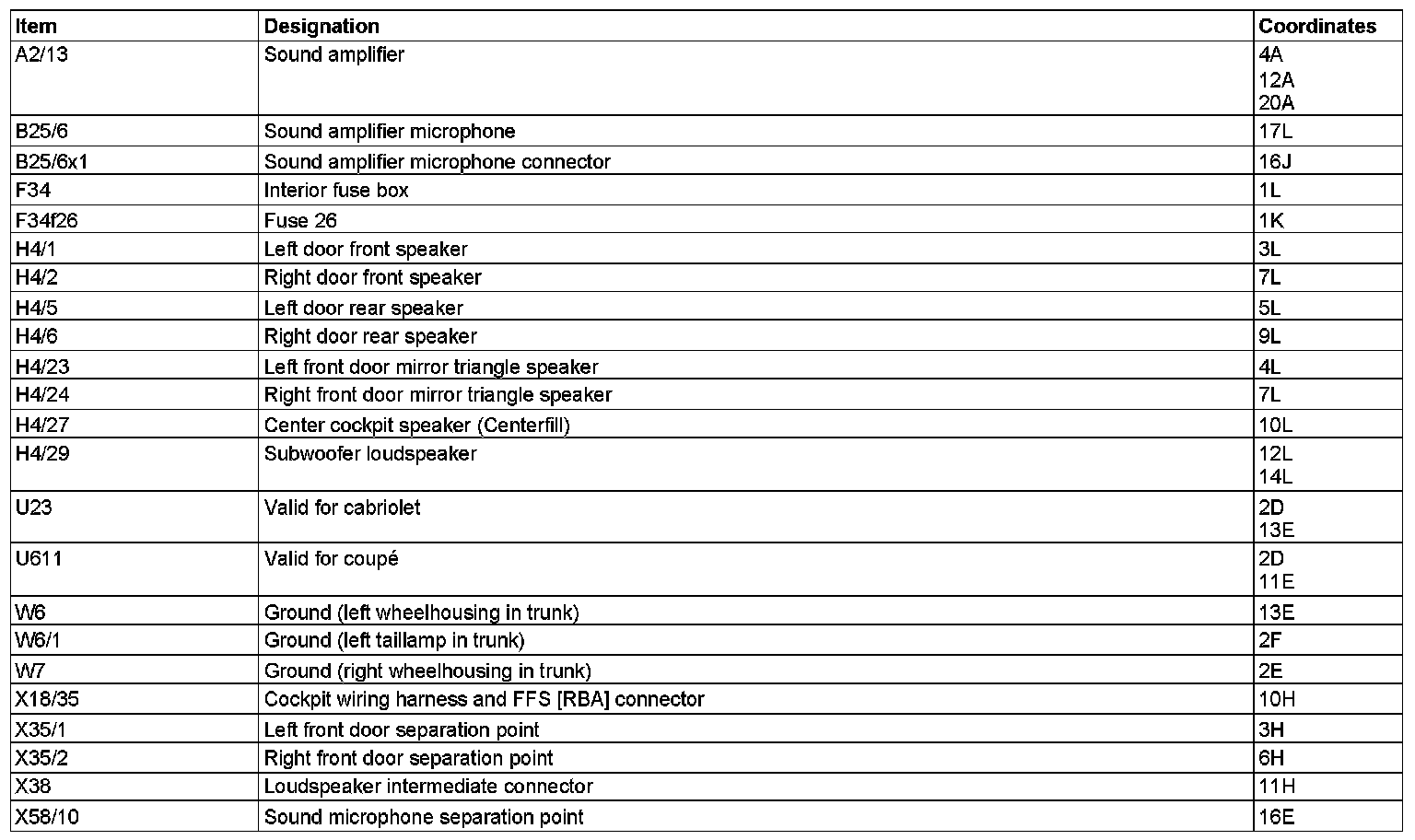

Component Description/Coordinates, A2/13 To X58/10:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
