Function Diagram of Electrical System For ME Engine Control PE07.61-U-2050BA



Function diagram of electrical system for ME engine control PE07.61-U-2050BA
- ME 2.8

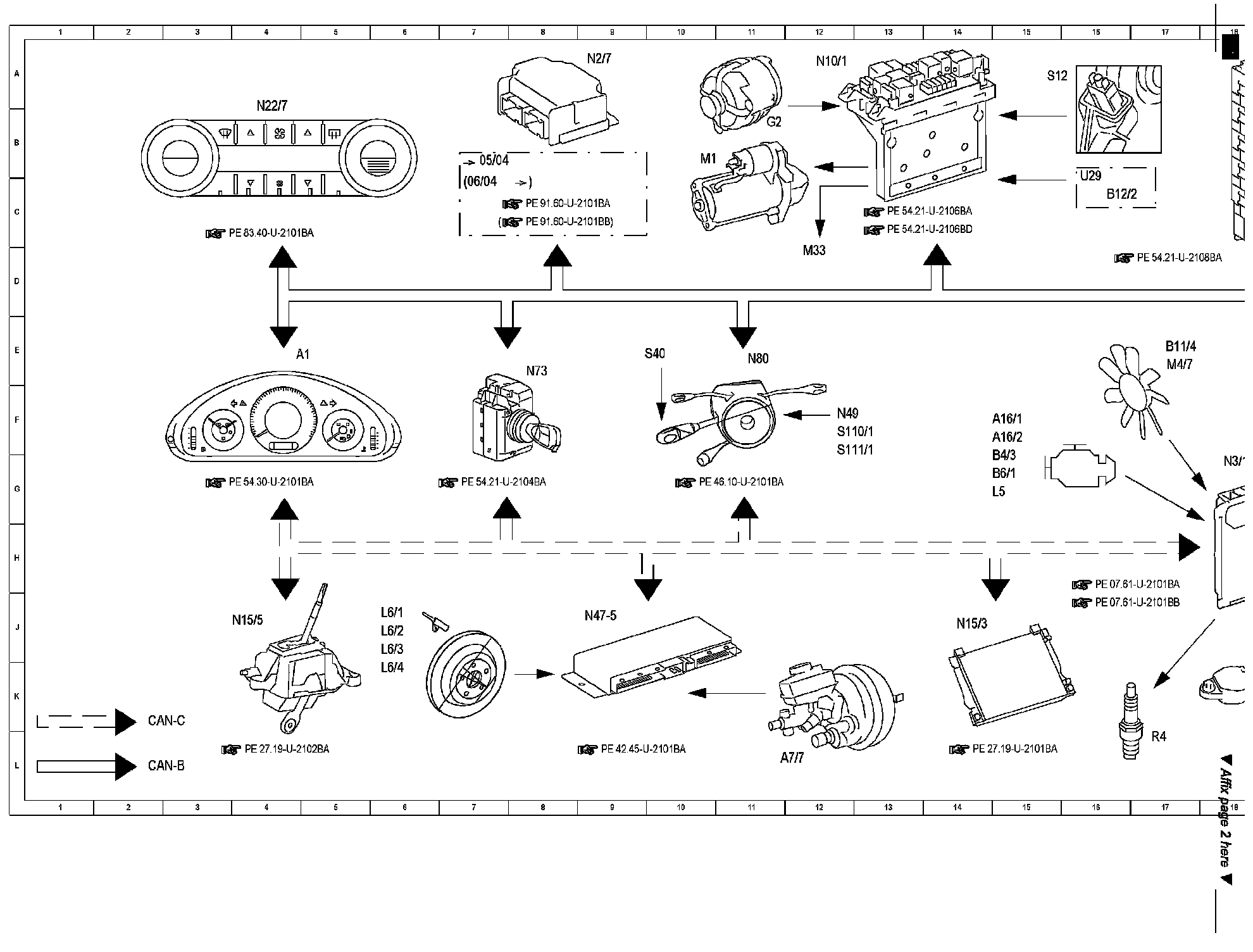

Function Diagram (Part 1):

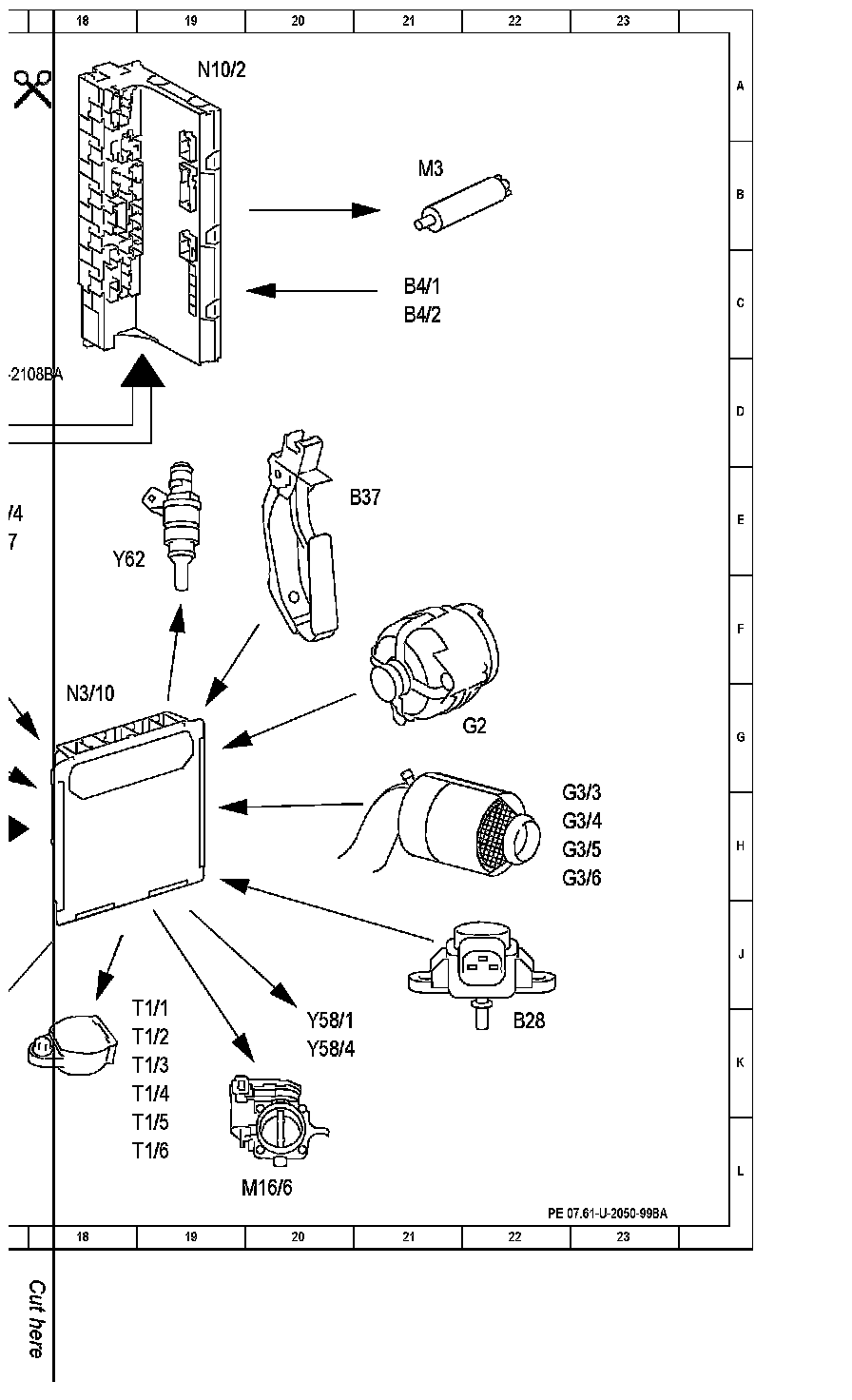

Function Diagram (Part 2):

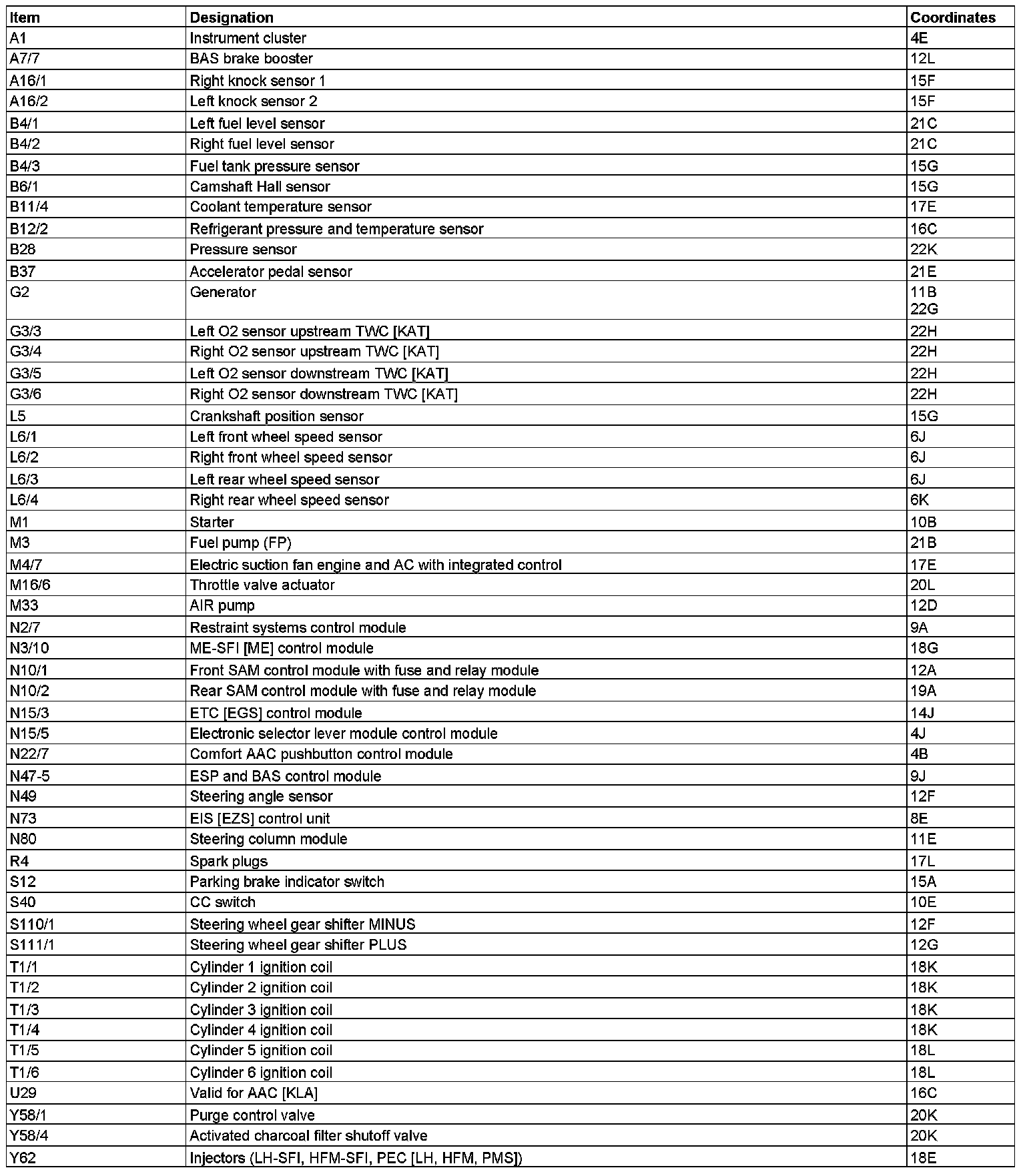

Component Description/Coordinates, A1 To Y62:
