Function Diagrams



Function Diagram Of Instrument Cluster (KI) Electrical System PE54.30-U-2051BA

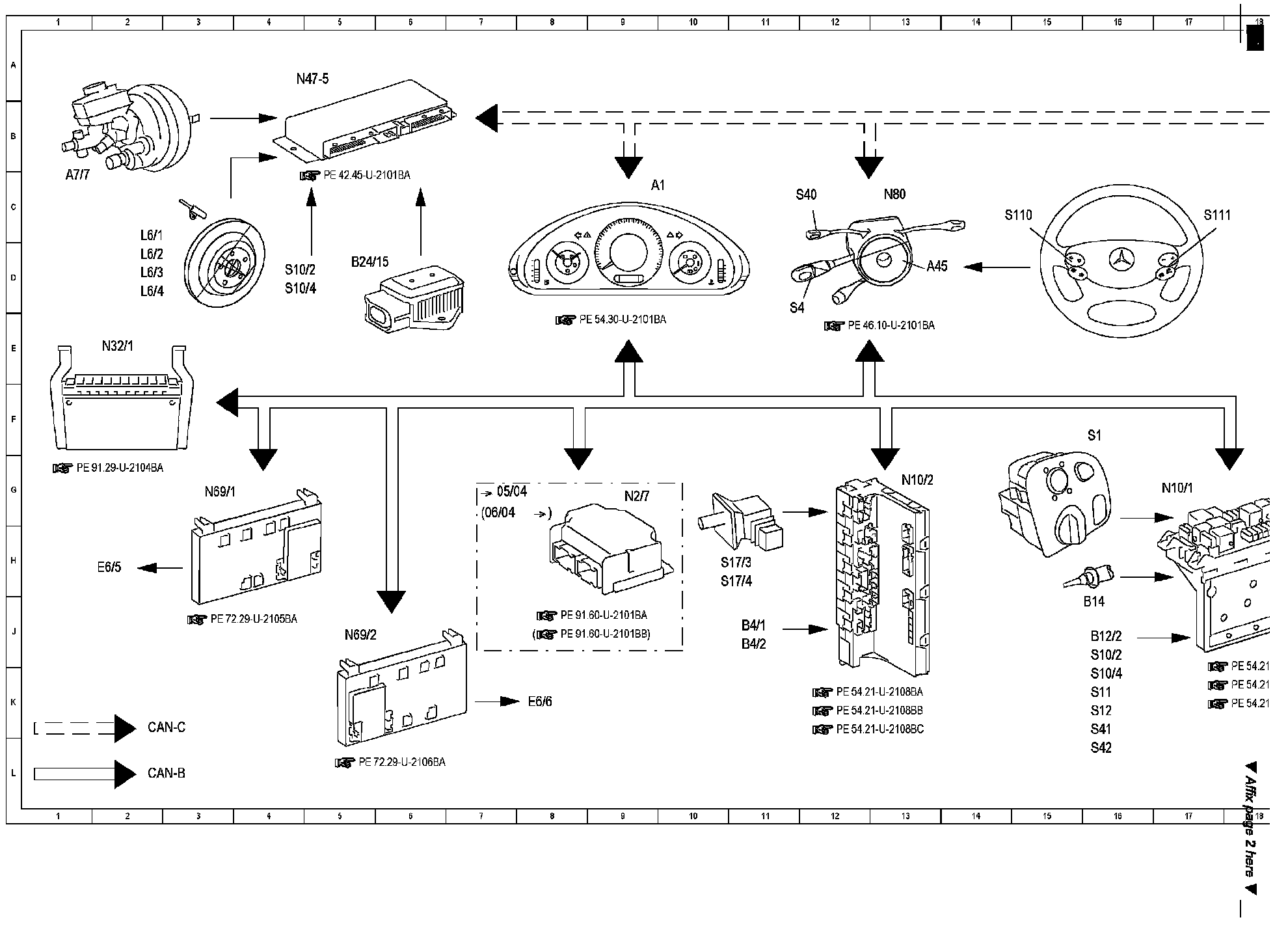

Function Diagram (Part 1):

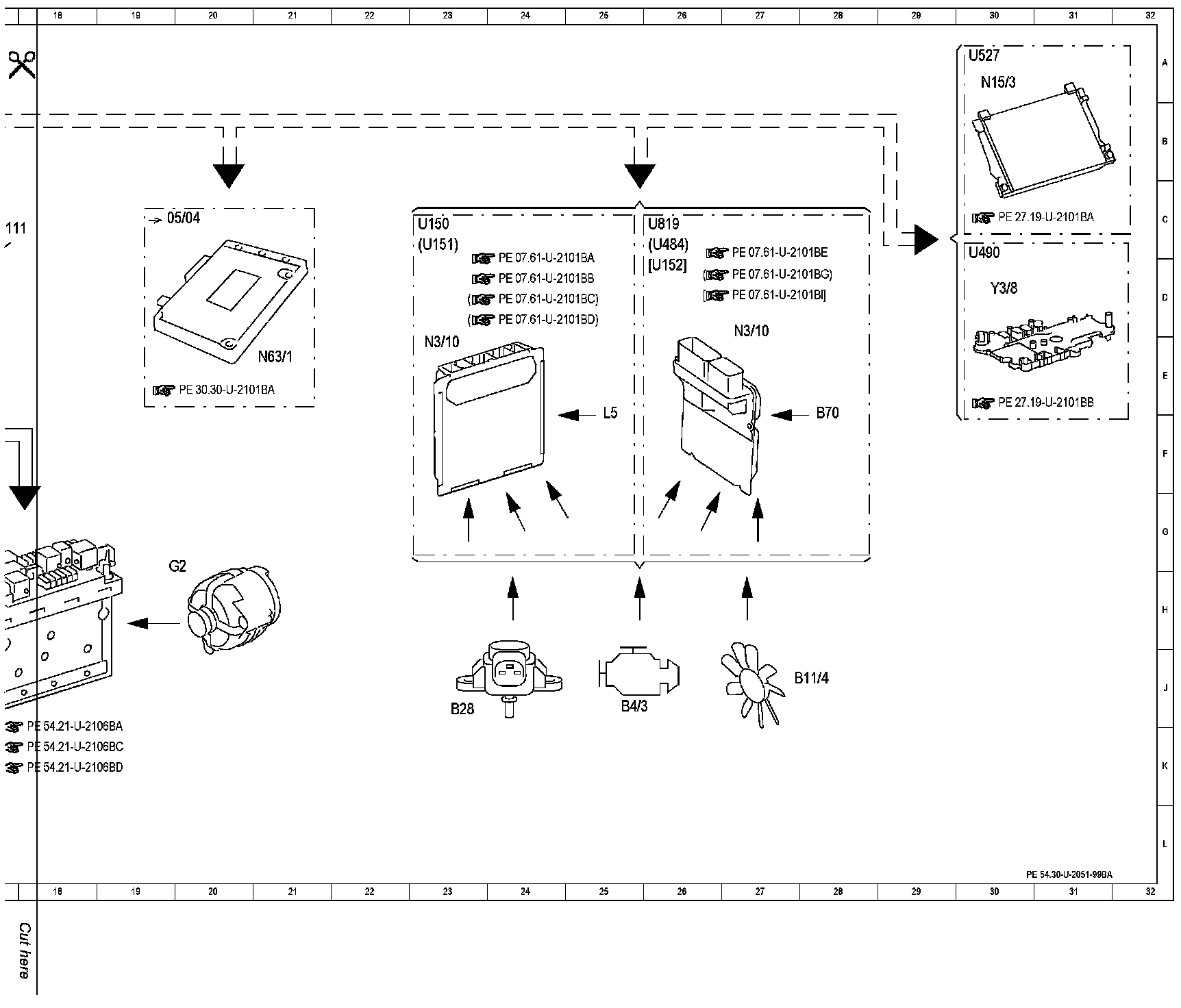

Function Diagram (Part 2):

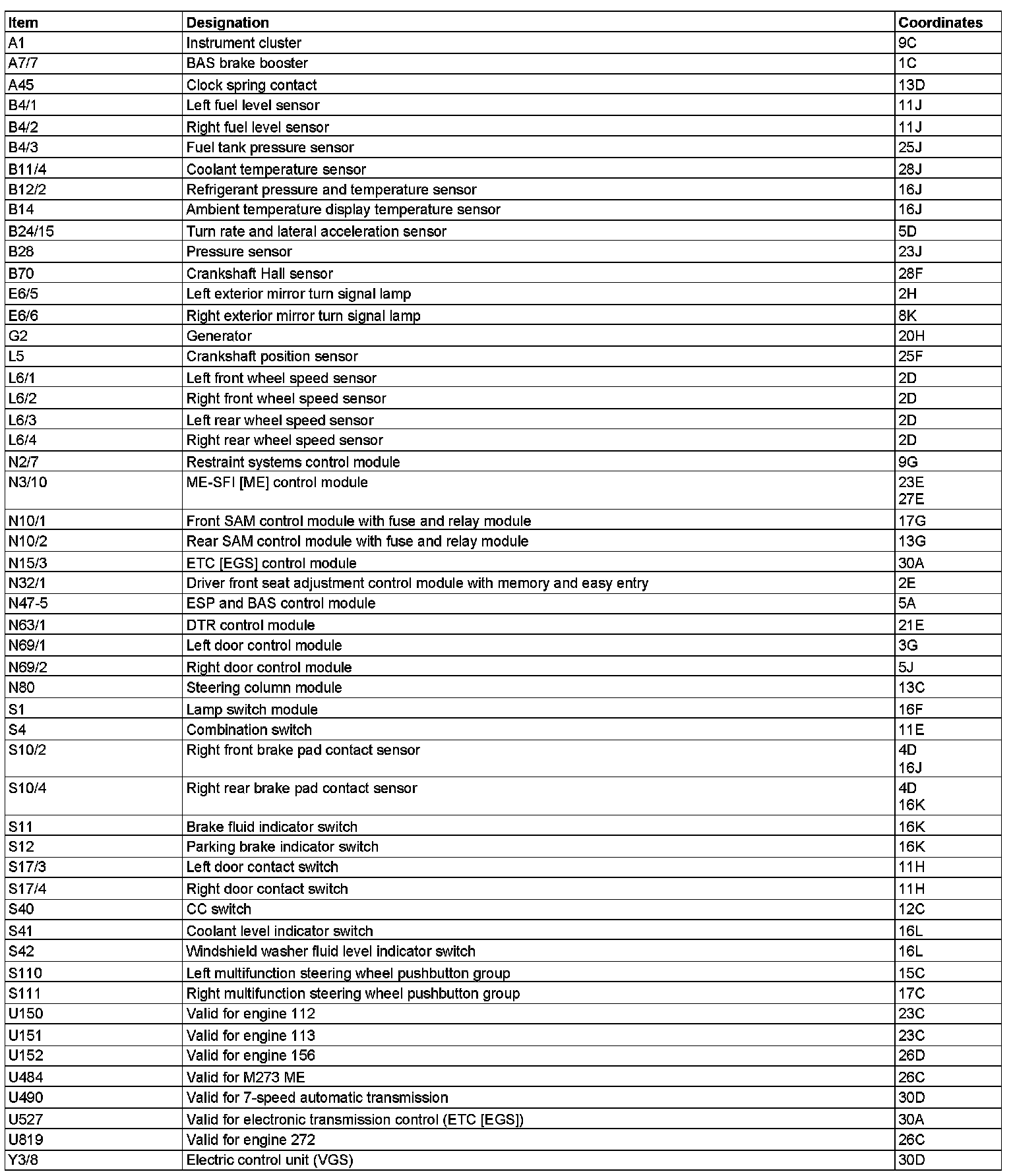

Component Description/Coordinates, A1 To Y3/8:
