Emergency Call System Control Module PE82.95-U-2101BD

Emergency Call System Control Module PE82.95-U-2101BD
- control module A35/17 with D2-bus

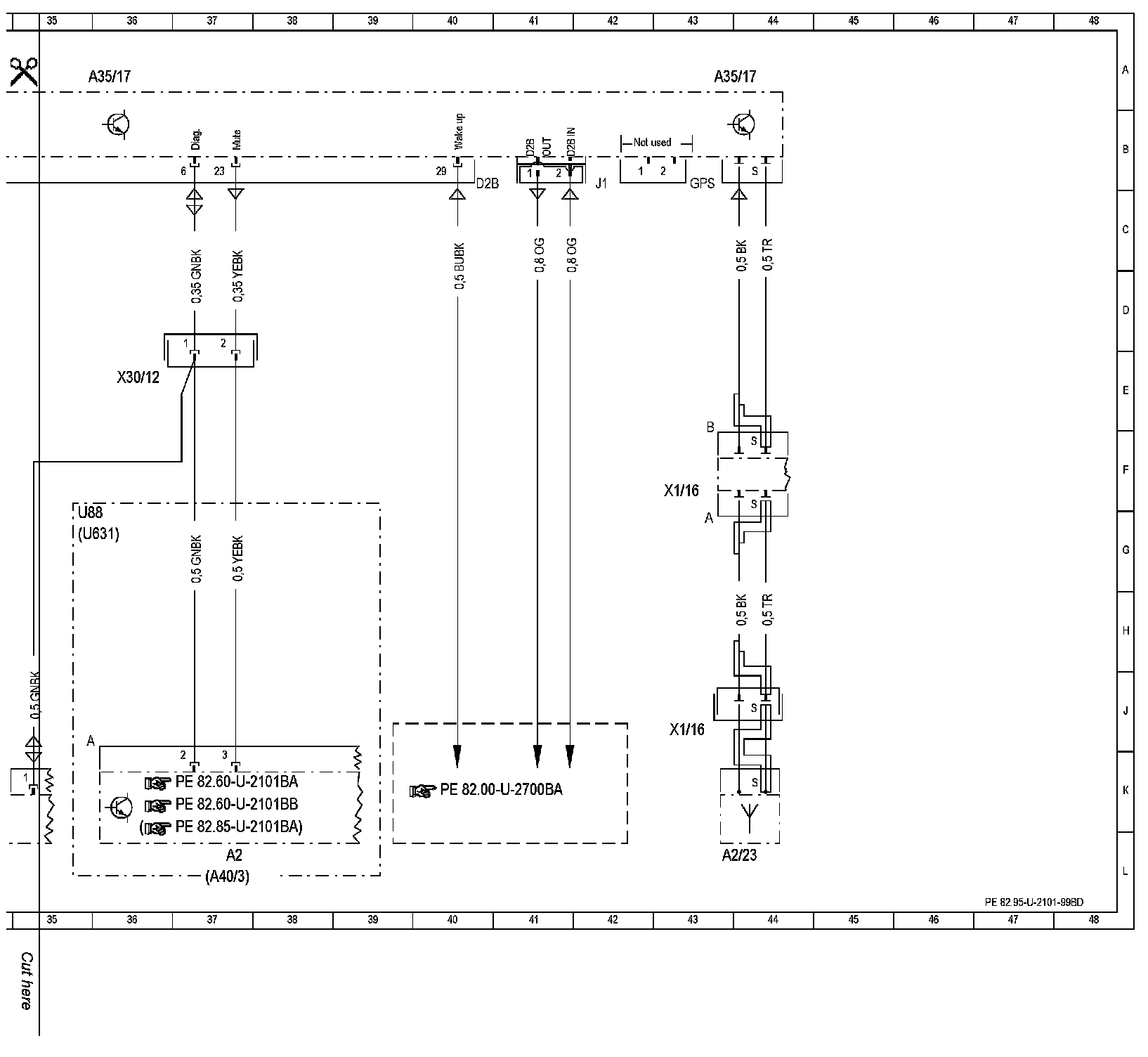

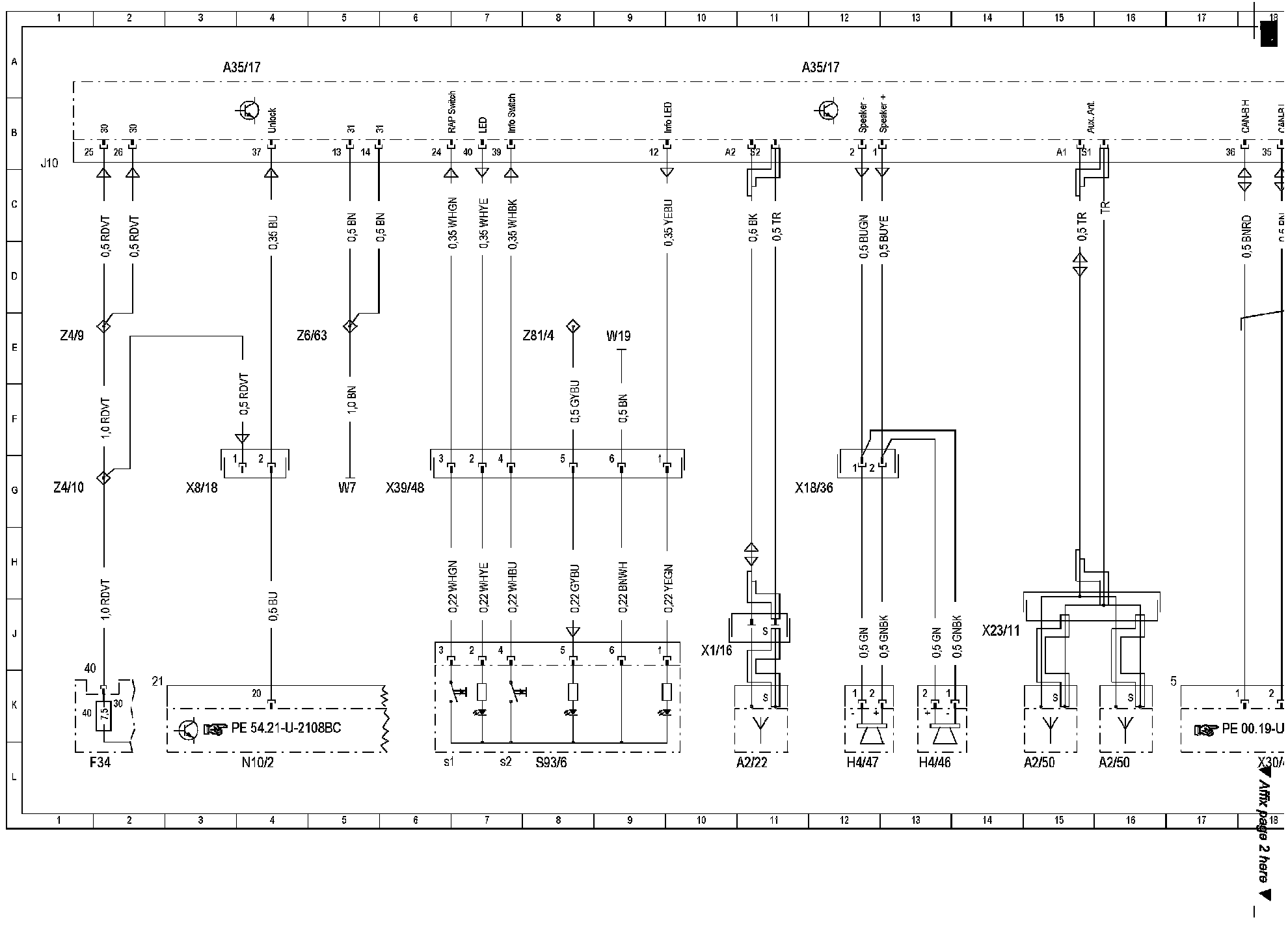

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

Wiring Diagram (Part 3):

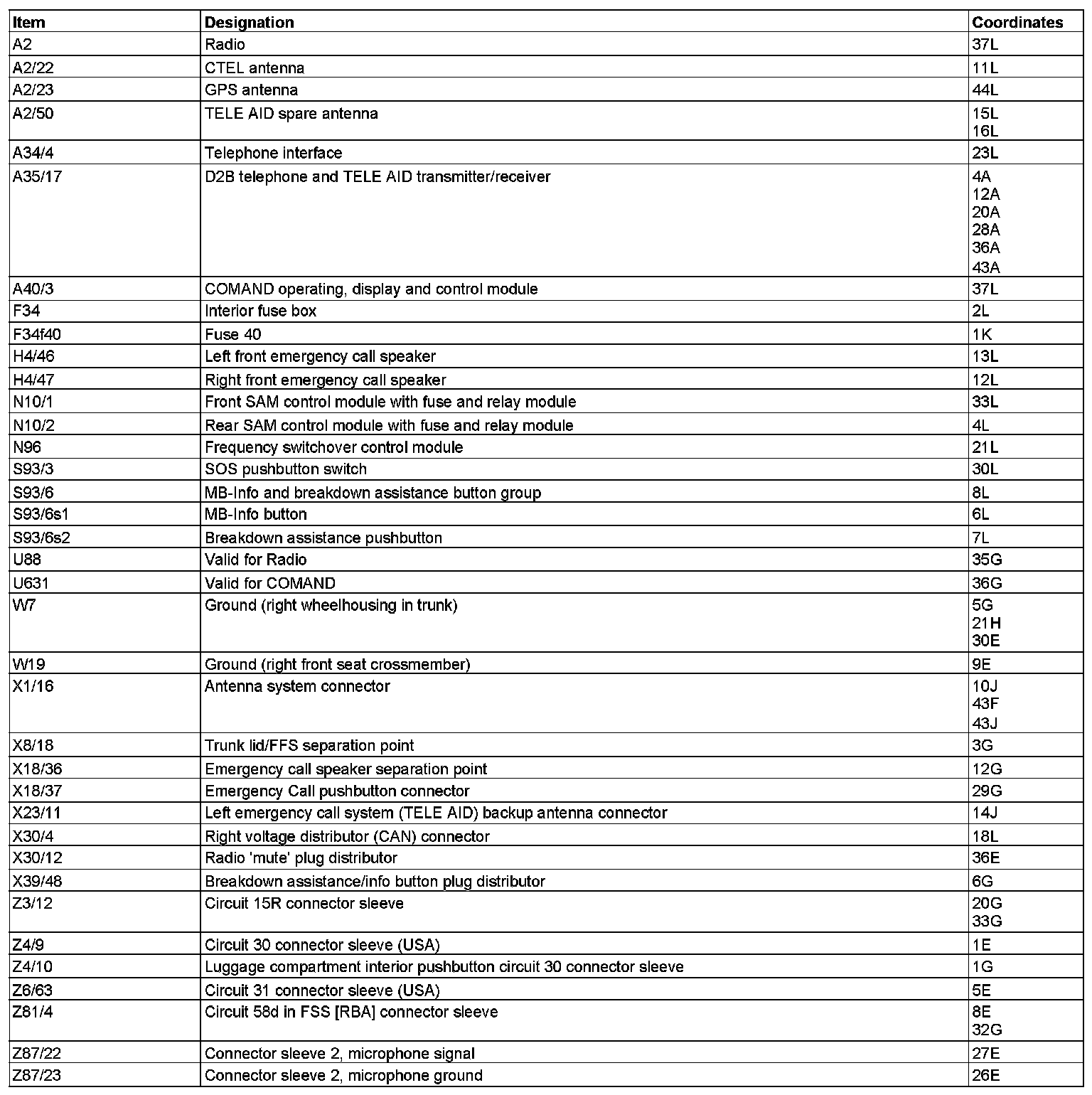

Component Description/Coordinates, A2 To Z87/23:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
