Cellular Telephone (CTEL) Control Module PE82.70-U-2101BB

Cellular Telephone (CTEL) Control Module PE82.70-U-2101BB
- control module A34/4 with D2-bus

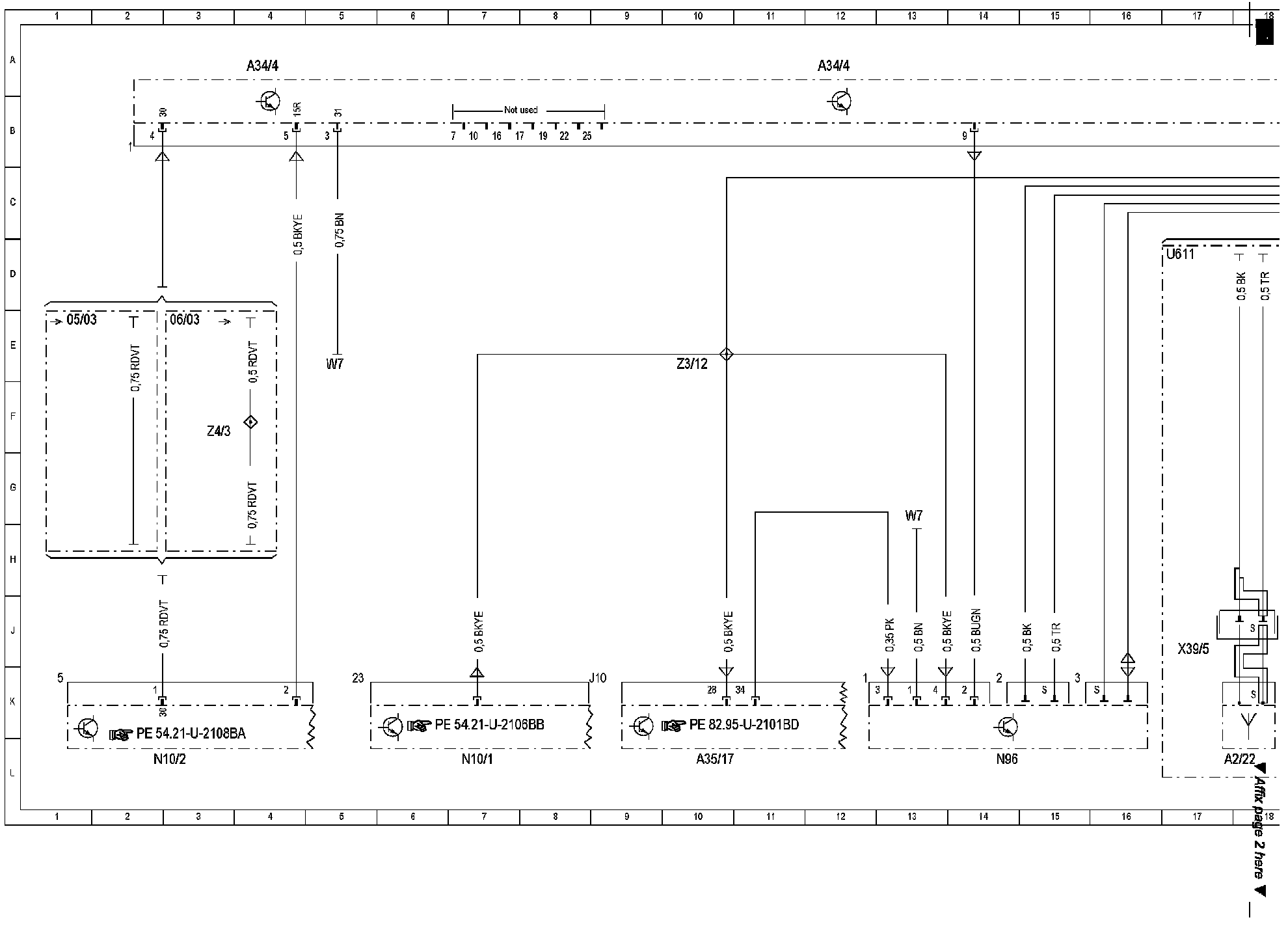

Wiring Diagram (Part 1):

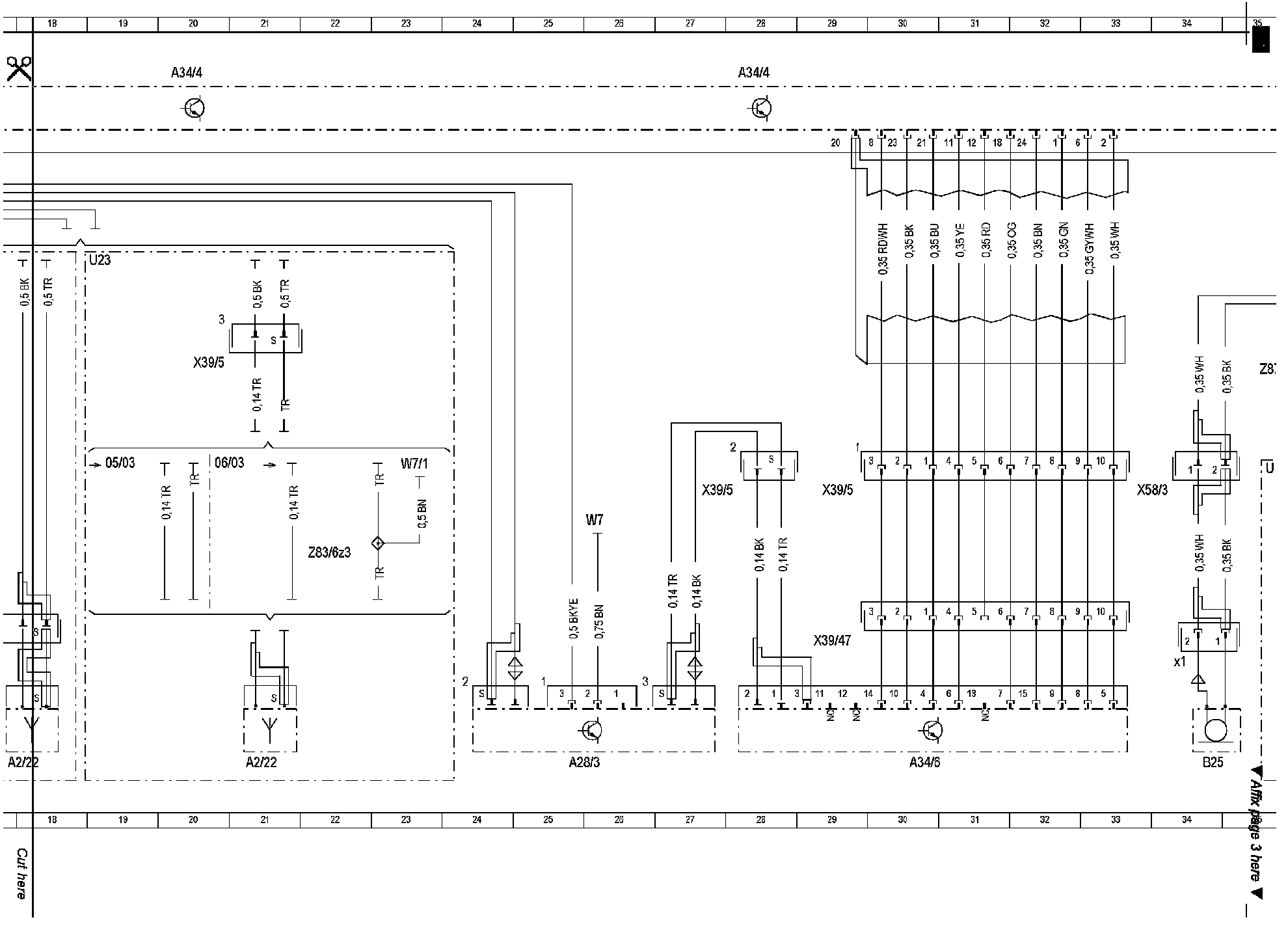

Wiring Diagram (Part 2):

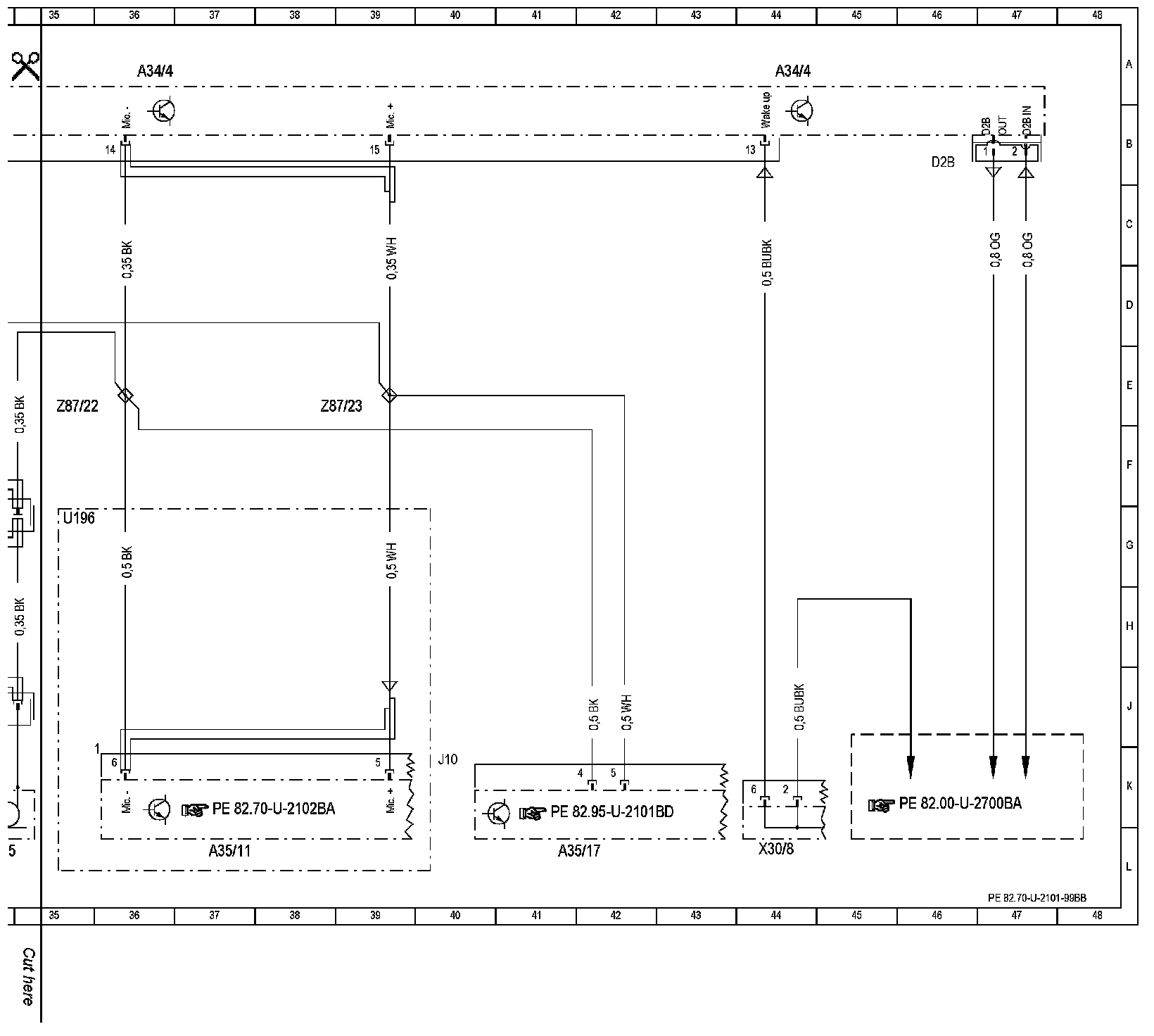

Wiring Diagram (Part 3):

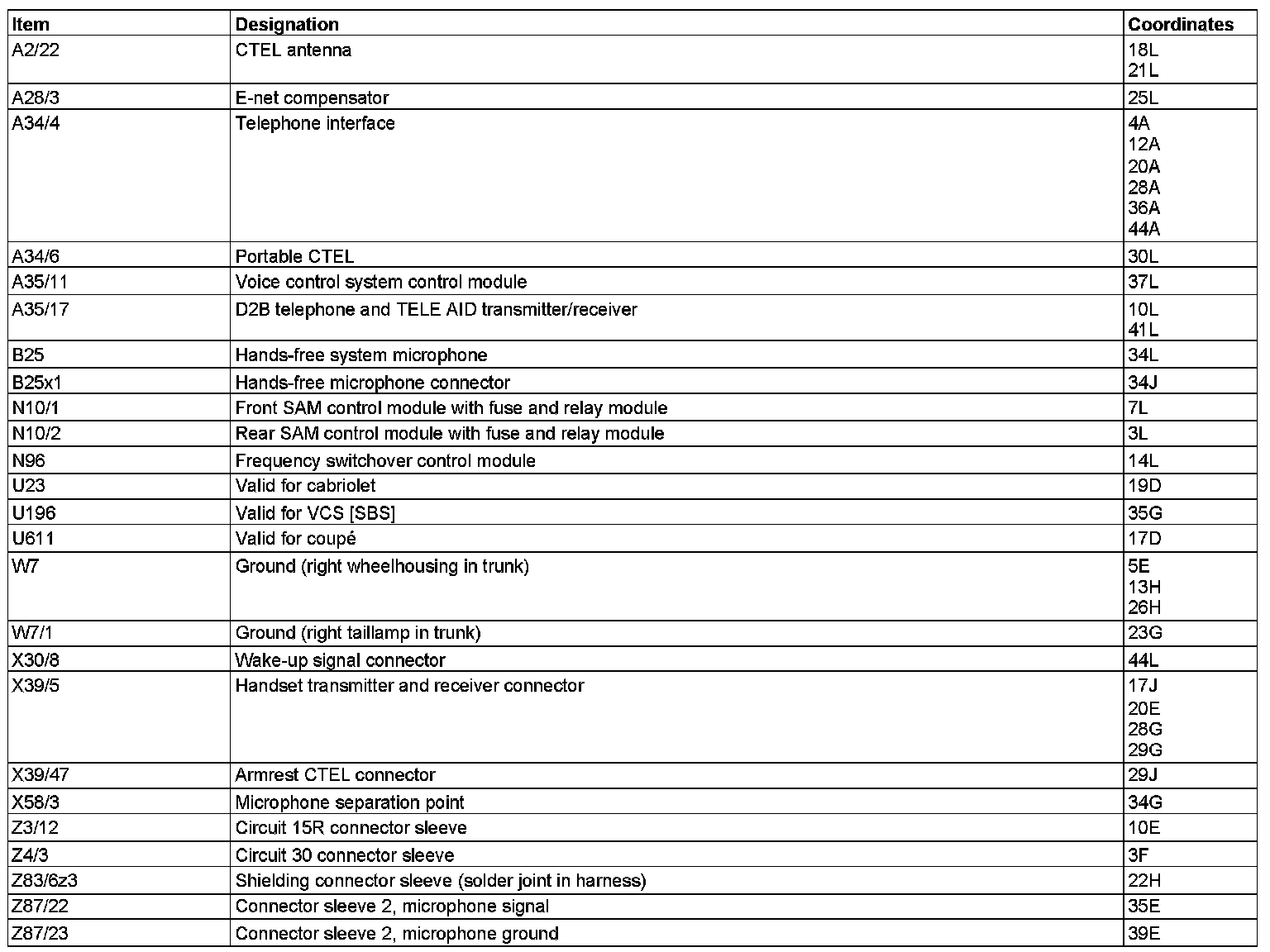

Component Description/Coordinates, A2/22 To Z87/23:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
