Function Schematic For Drive Authorization System (DAS) Electrical System PE80.57-U-2050BA



Function Schematic For Drive Authorization System (DAS) Electrical System PE80.57-U-2050BA

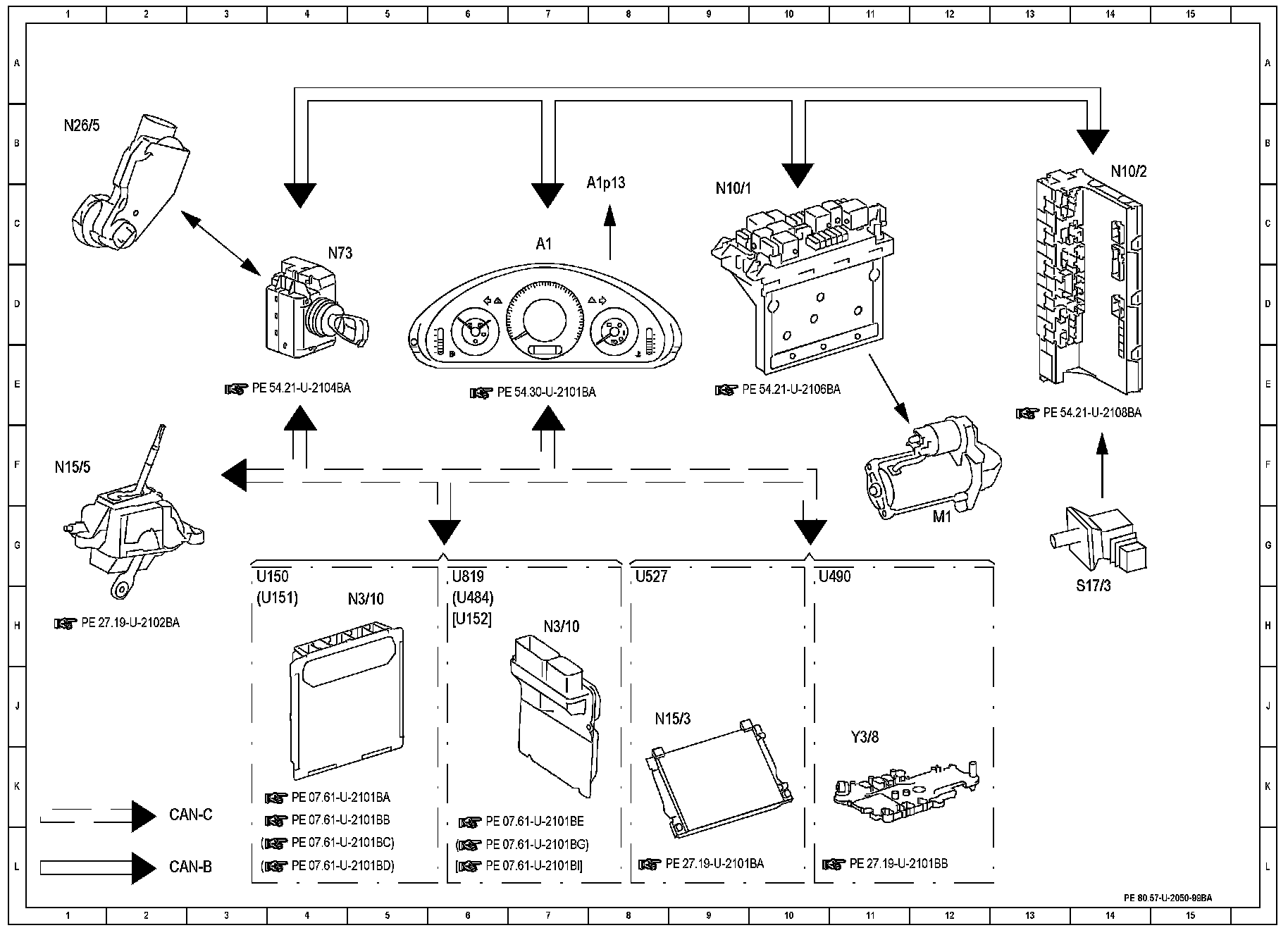

Function Diagram:

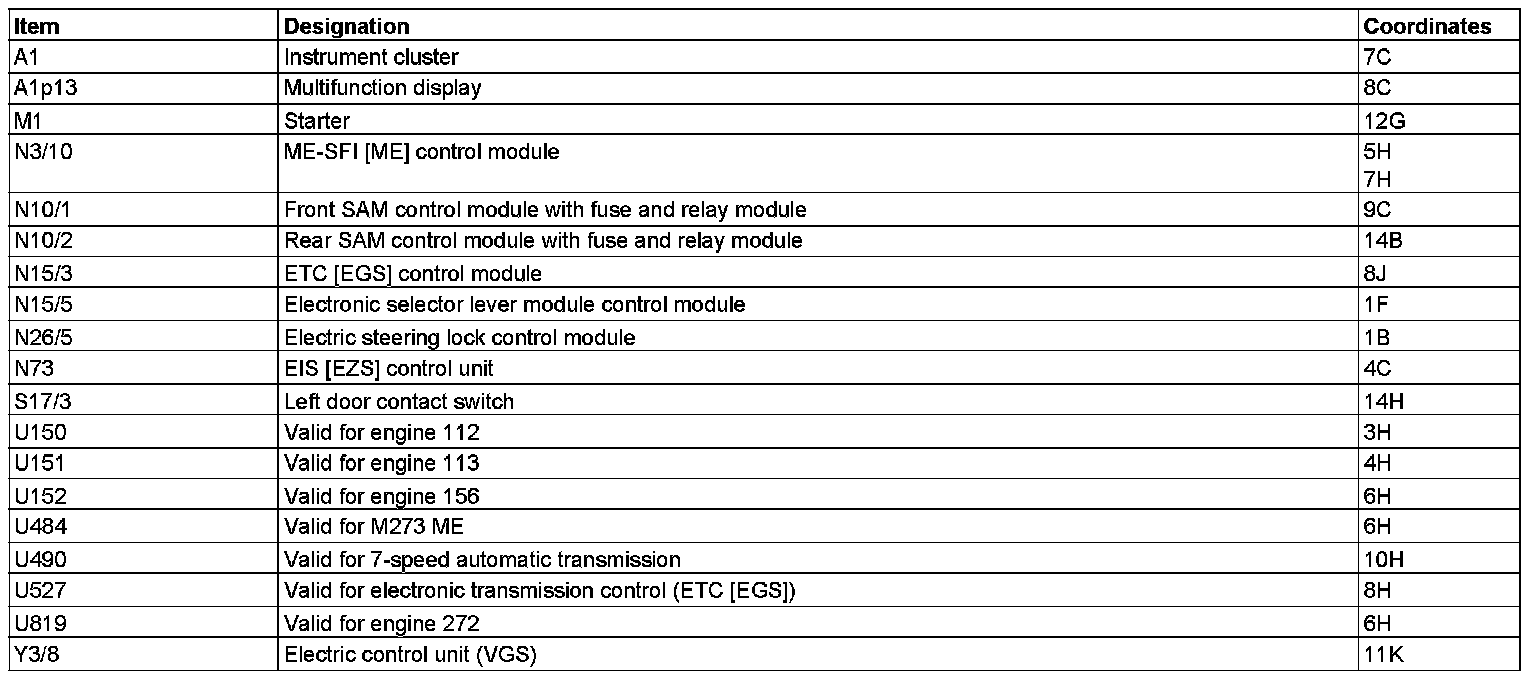

Component Description/Coordinates, A1 To Y3/8:
