Function Schematic For Anti-Theft Alarm (ATA) Electrical System PE80.50-U-2050BA



Function Schematic For Anti-theft Alarm (ATA) Electrical System PE80.50-U-2050BA

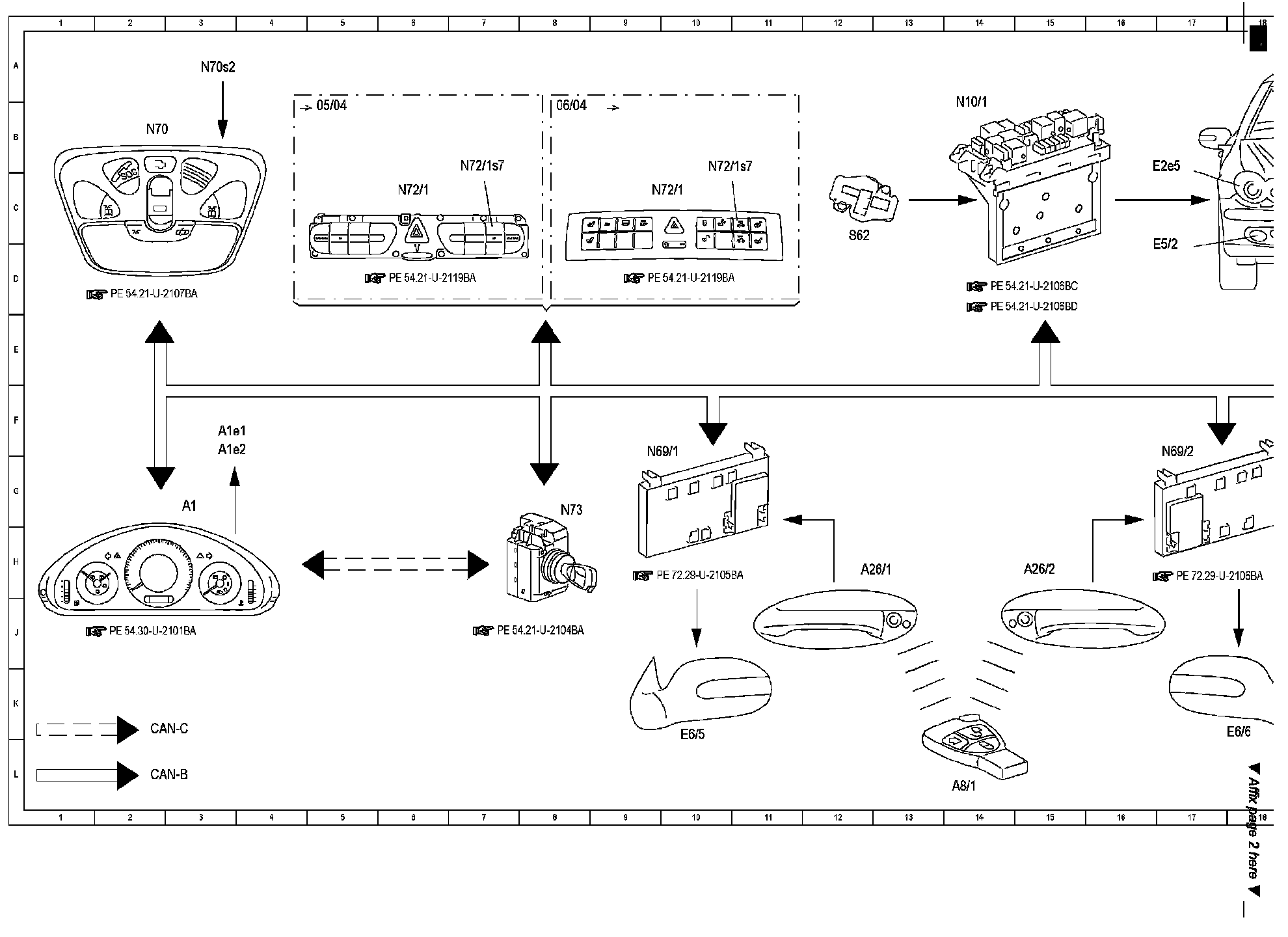

Function Diagram (Part 1):

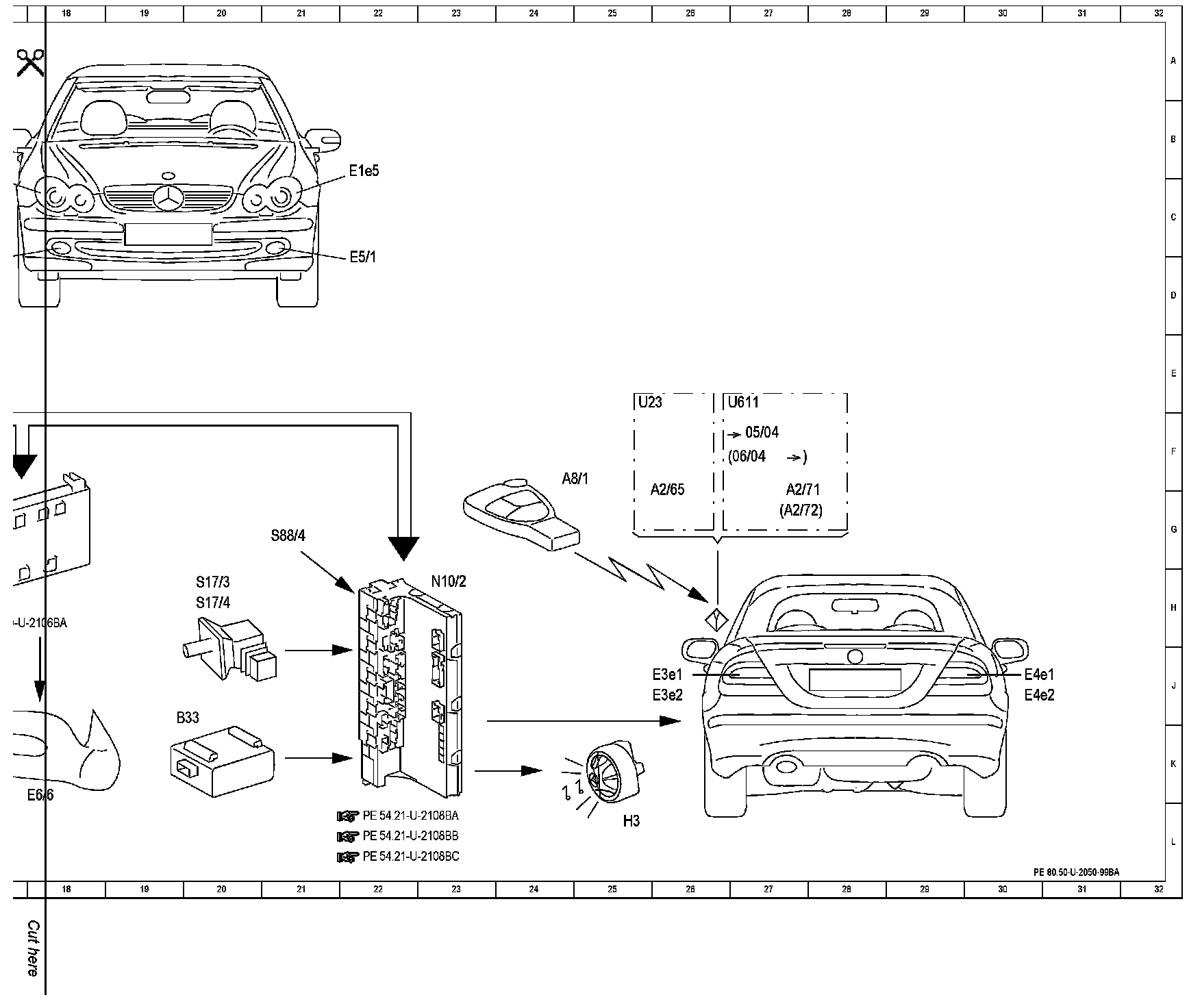

Function Diagram (Part 2):

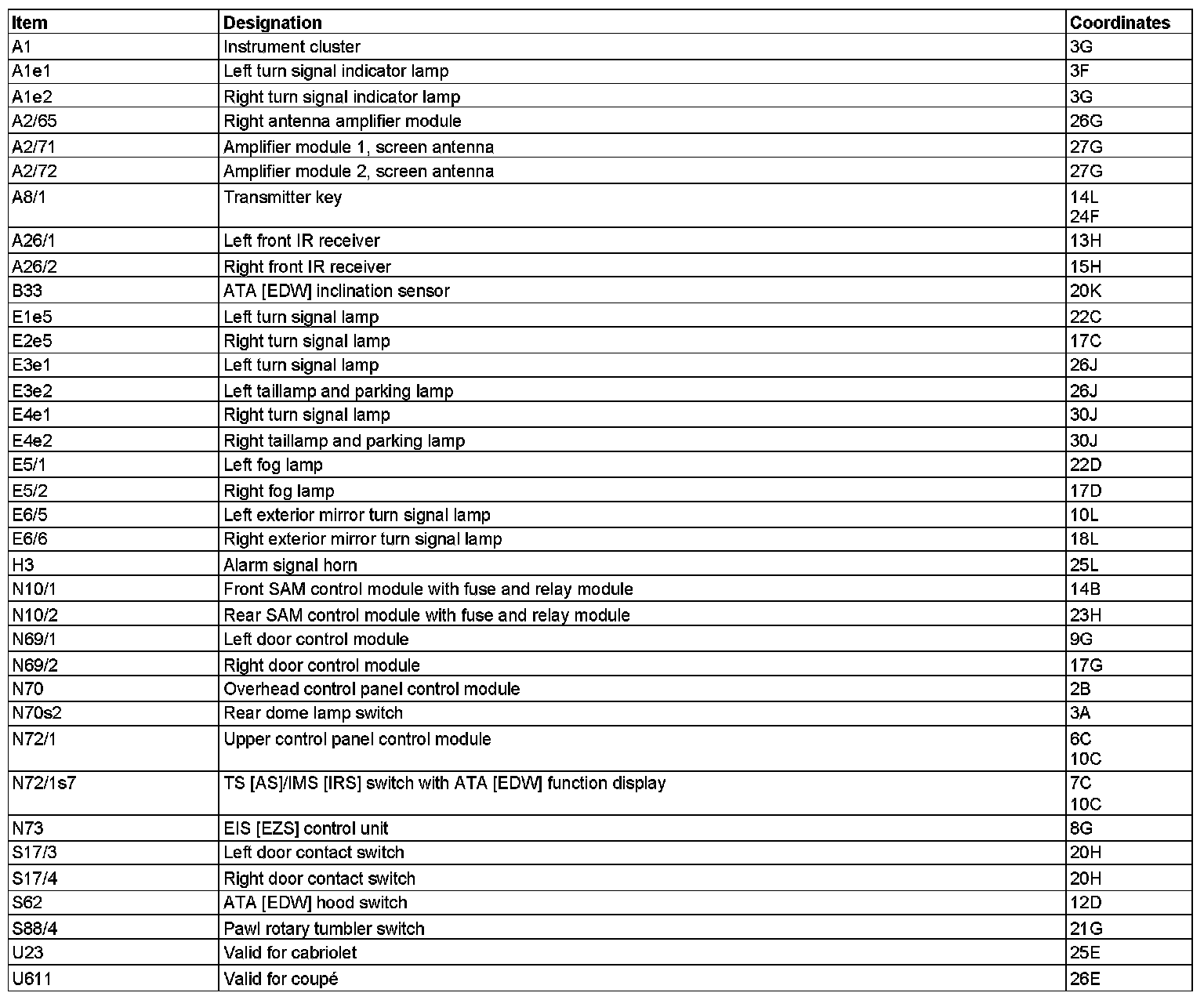

Component Description/Coordinates, A1 To U611:
