Function Diagram For Electronic Stability Program (ESP) PE42.45-U-2050BA

PE42.45-U-2050BA Function Diagram For Electrical System Of Electronic Stability Program (ESP)
- with CODE (472) Electronic Stability Program (ESP)

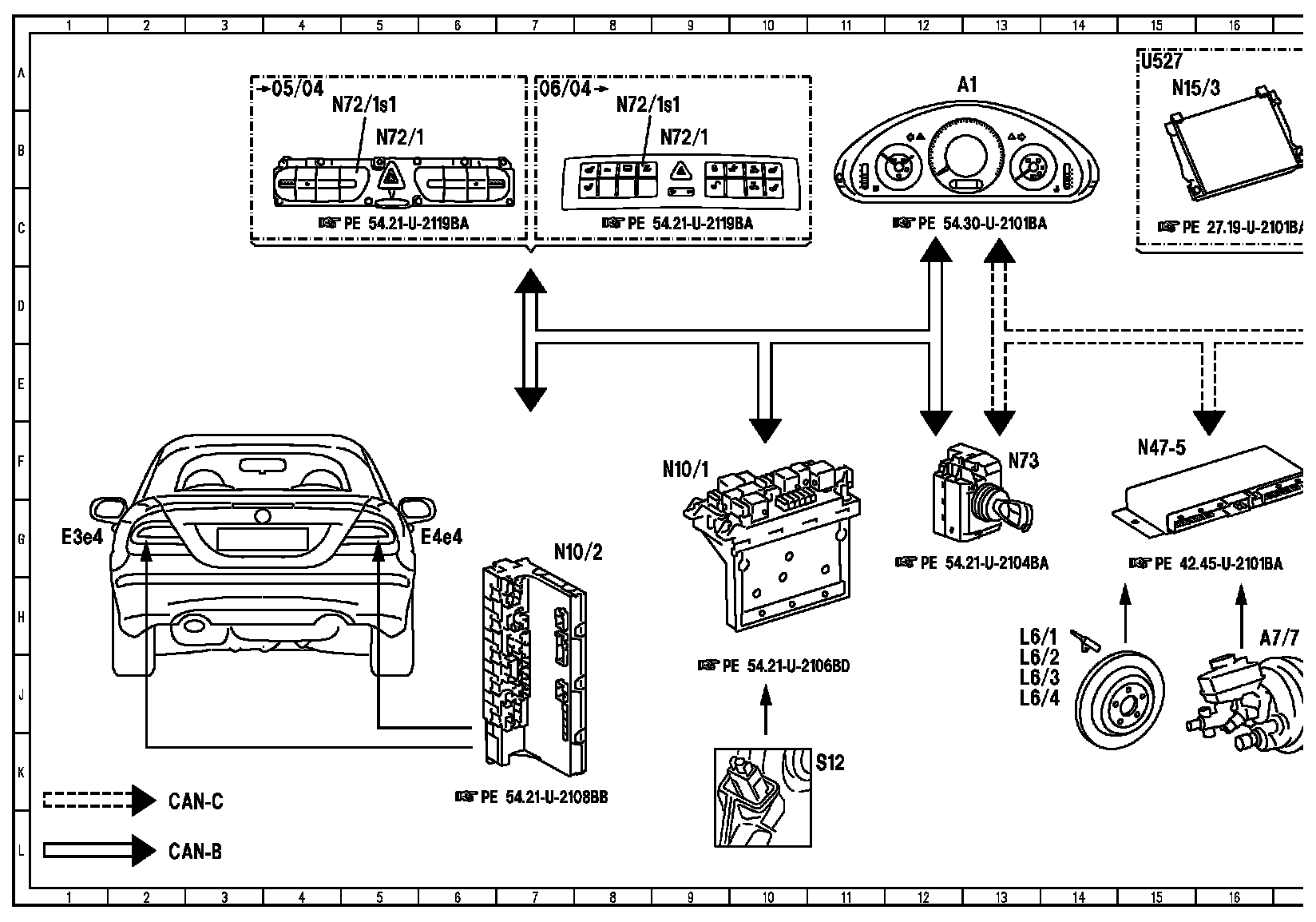

Wiring Diagram, Part 1:

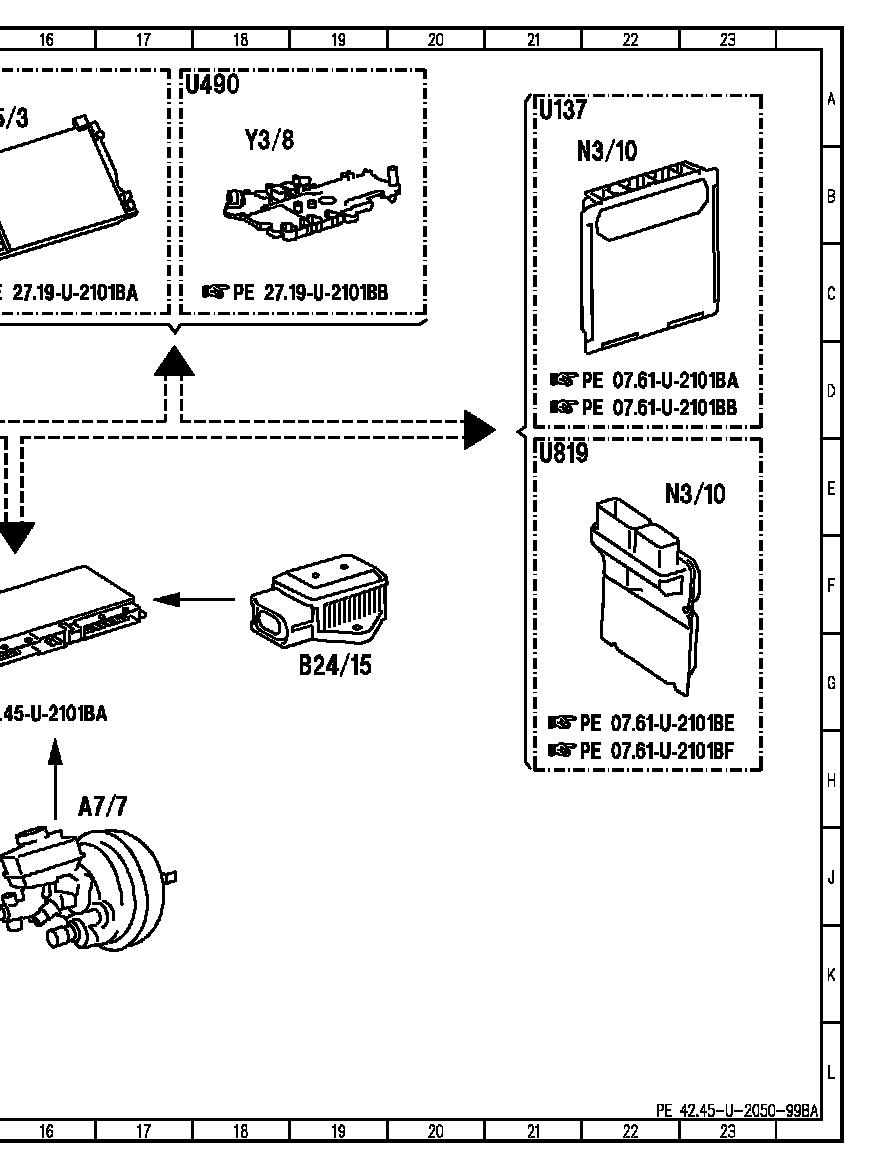

Wiring Diagram, Part 2:

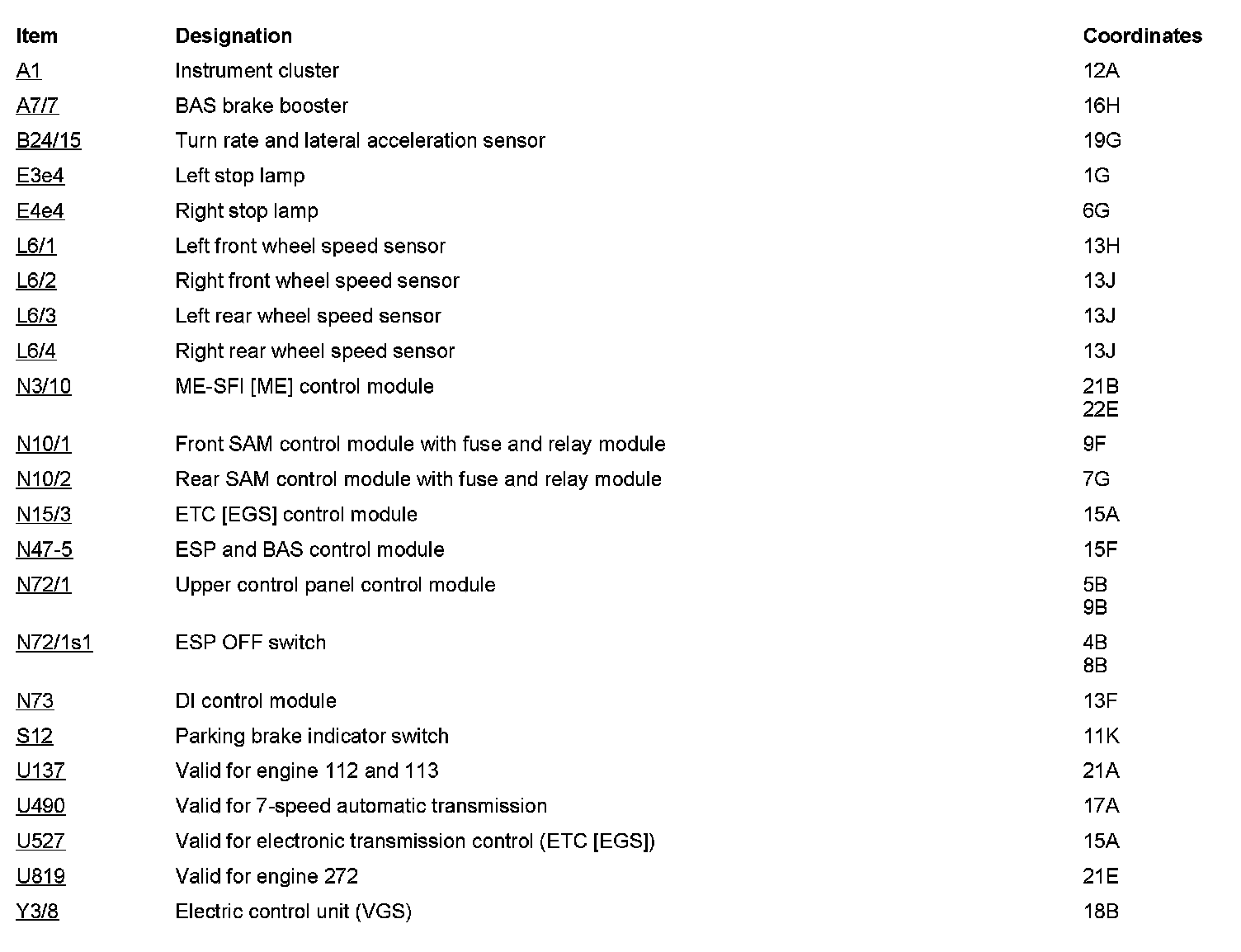

Component Description/Coordinates, A1 To Y3/8:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
