CLK 320 (209.365) V6-3.2L (112.955)
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Fu - Fu
>>
Fuse 1
Fuse 1
Fuse 1

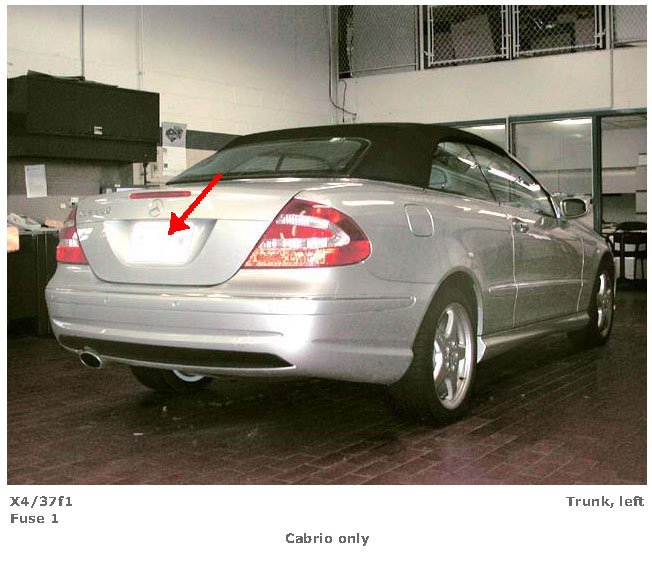

Fuse 1 (View 1):

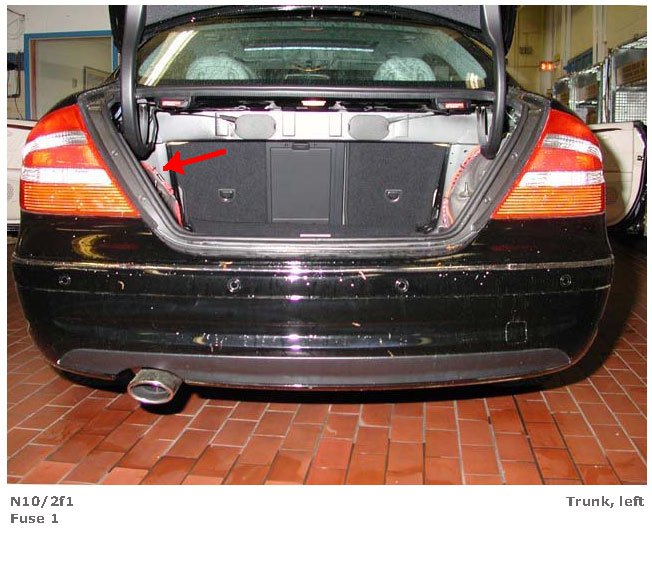

Fuse 1 (View 2):

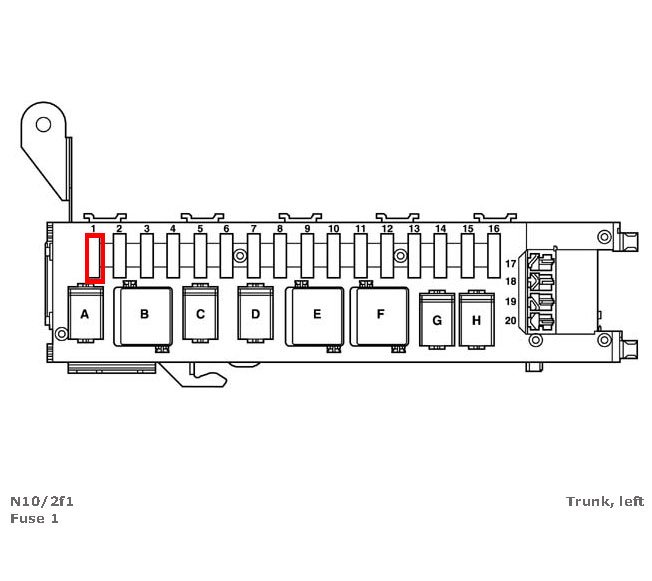

Fuse 1 (View 3):

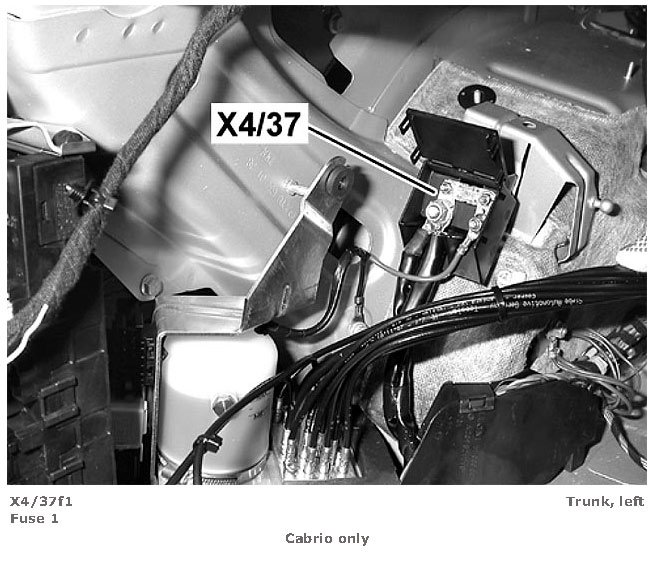

Fuse 1 (View 1):

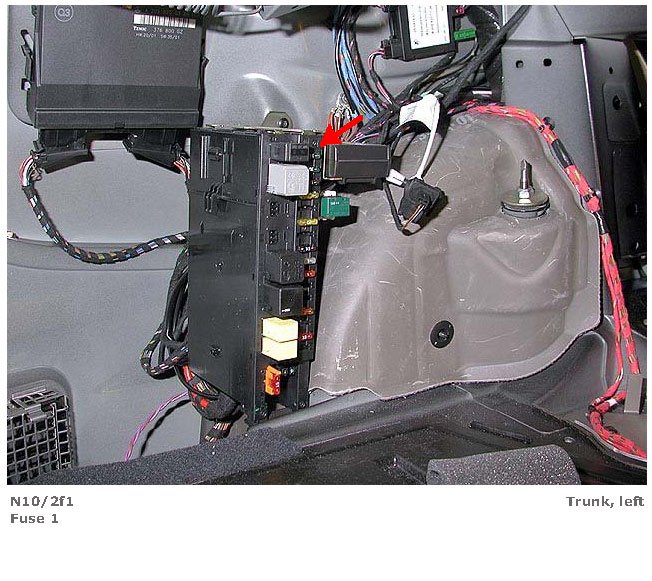

Fuse 1 (View 2):
