AR43.10-P-0350P Remove/Install Brake Booster



AR43.10-P-0350P Remove/install brake booster

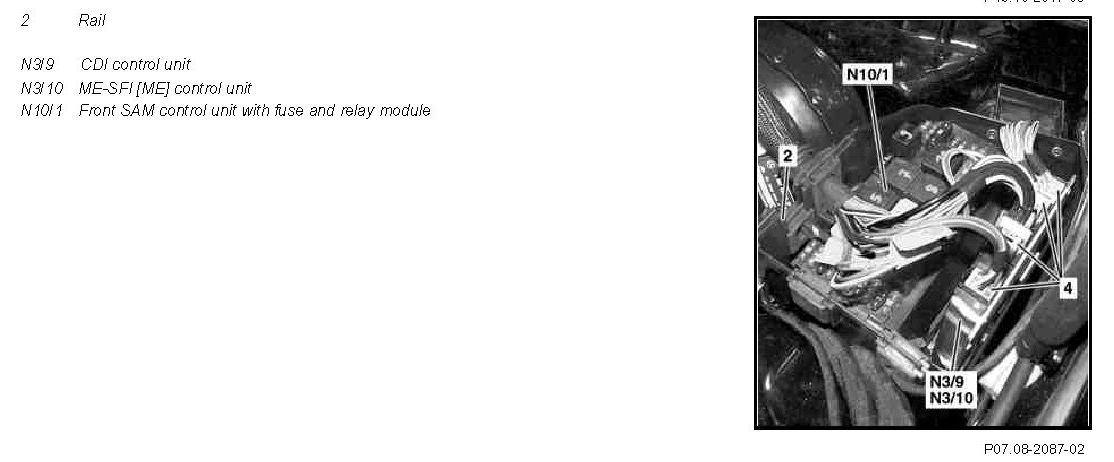

Component Identification:

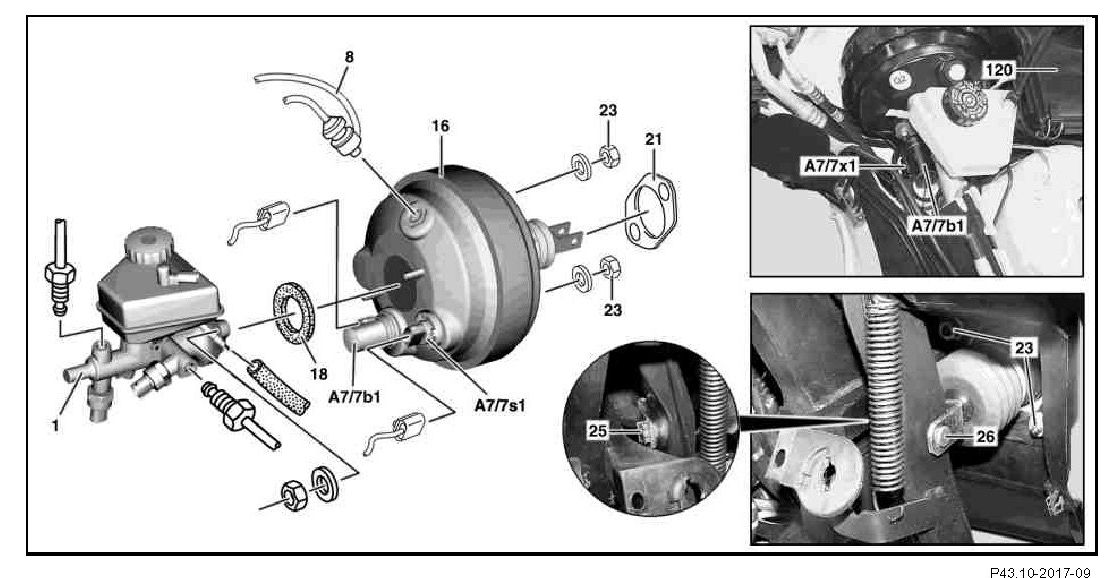

Component Identification:

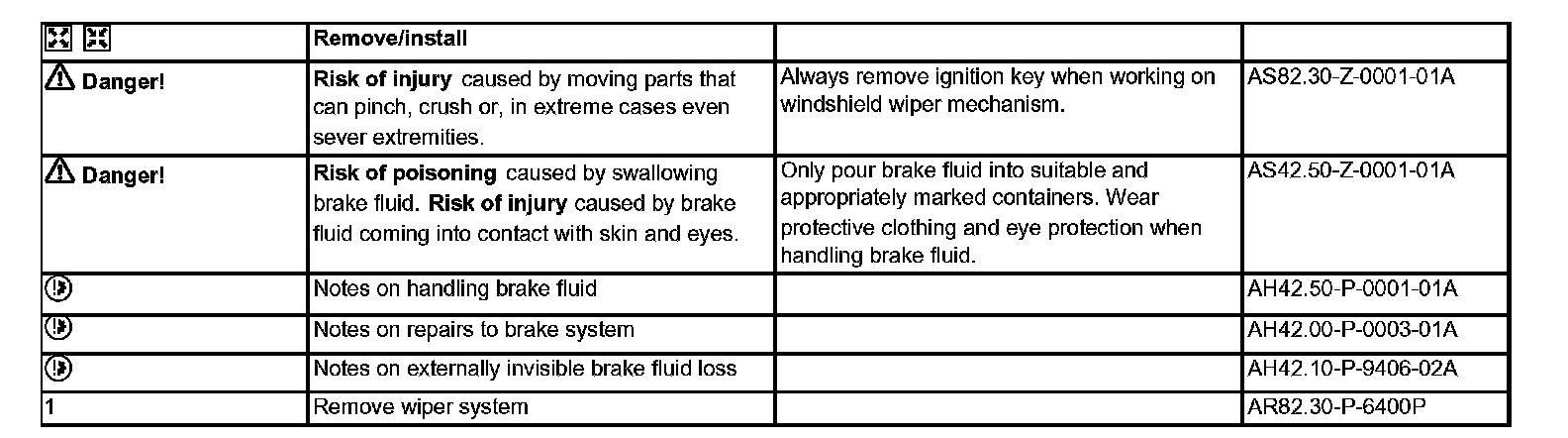

Remove/install Step 1:

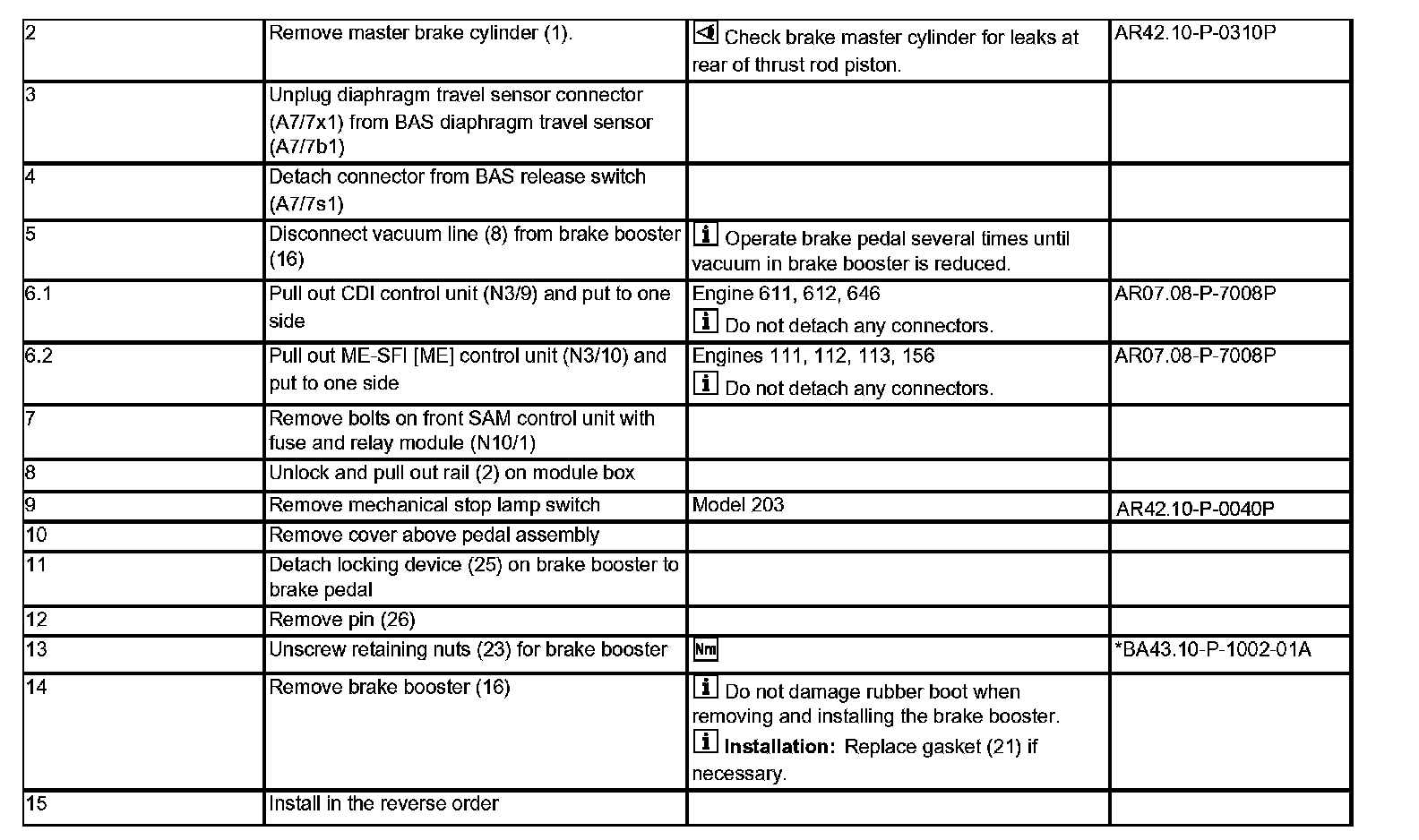

Remove/install Steps 2-15:

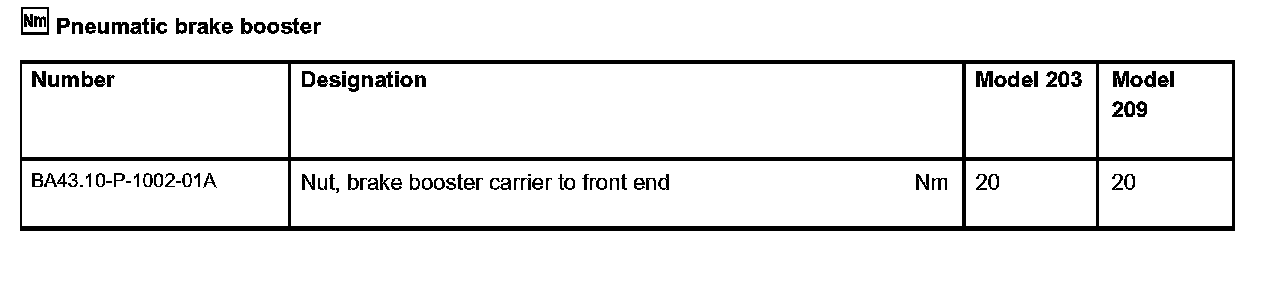

Pneumatic brake booster:
