AR42.20-P-0525P Remove/Install Rear Brake Control Cable

Remove/install Rear Brake Control Cable

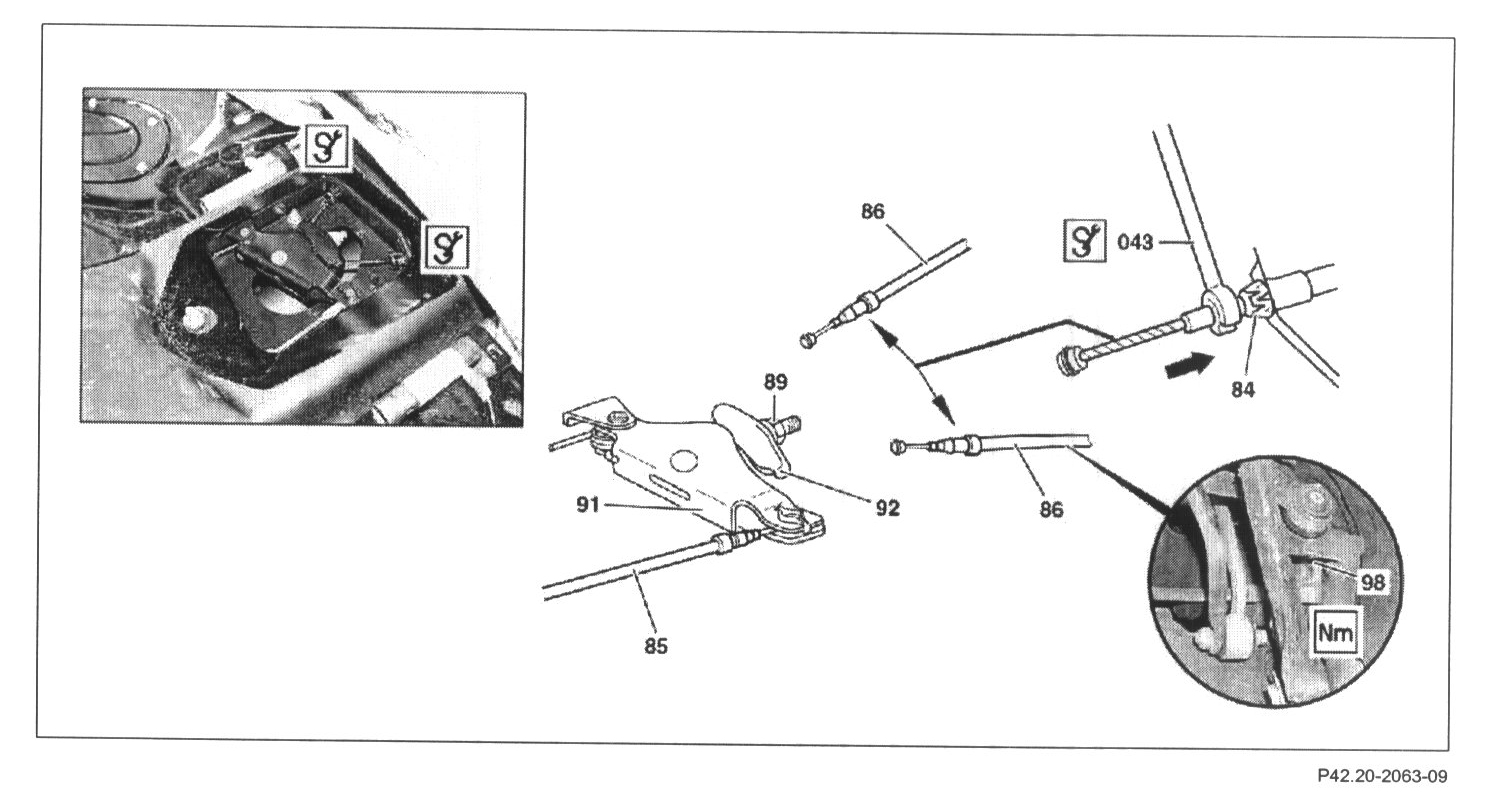

1 Remove brake shoes of parking brake
2 Loosen adjusting bolt (89) at adjustment
3 Detach front brake cable (85) at intermediate lever (91)
4 Detach brake control cable (86) at equalizer arm (92) and at adjustment
5 Unscrew self-locking bolt (98) on wheel carrier.

NOTE: Replace self-locking bolt (98)

6 Remove brake control cable (86)
7 Install in the reverse order
