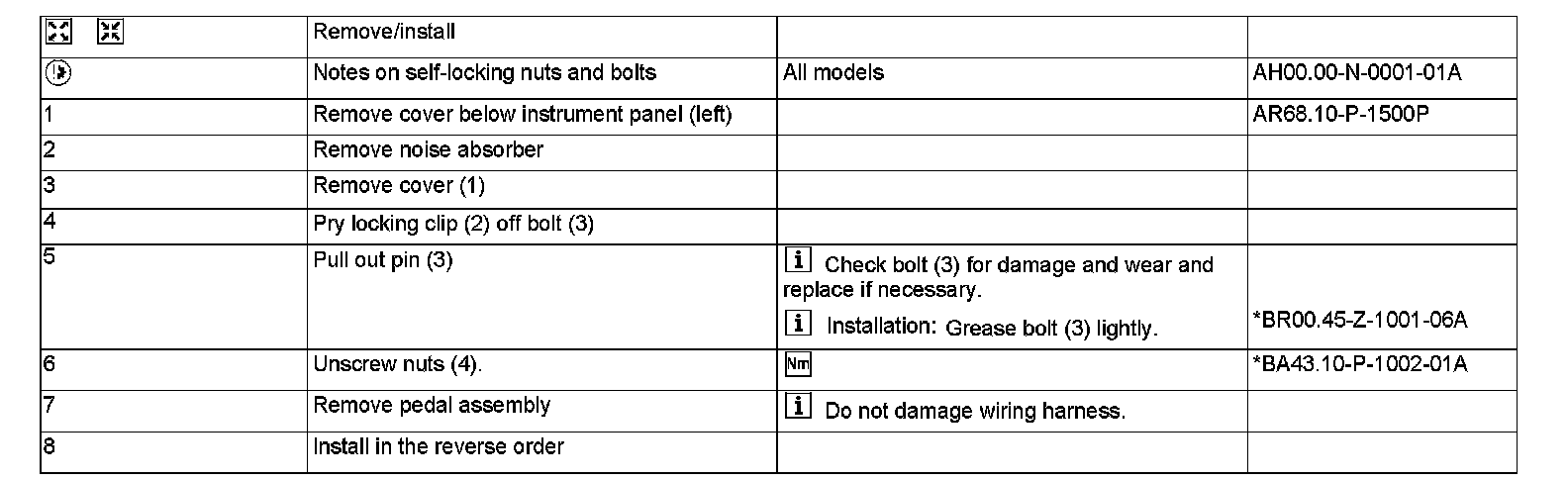

AR29.10-P-0300QA Remove/Install Pedal Assembly




AR29.10-P-0300QA Remove/Install Pedal Assembly
- with transmission 722.6
- with transmission 716.6 with CODE (424) Sequentronic (SEQ) manual transmission
