Electronic Stability Program (ESP) Control Module PE42.45-U-2101BA

Electronic Stability Program (ESP) Control Module PE42.45-U-2101BA
- with CODE (472) Electronic Stability Program (ESP) control module N47-5

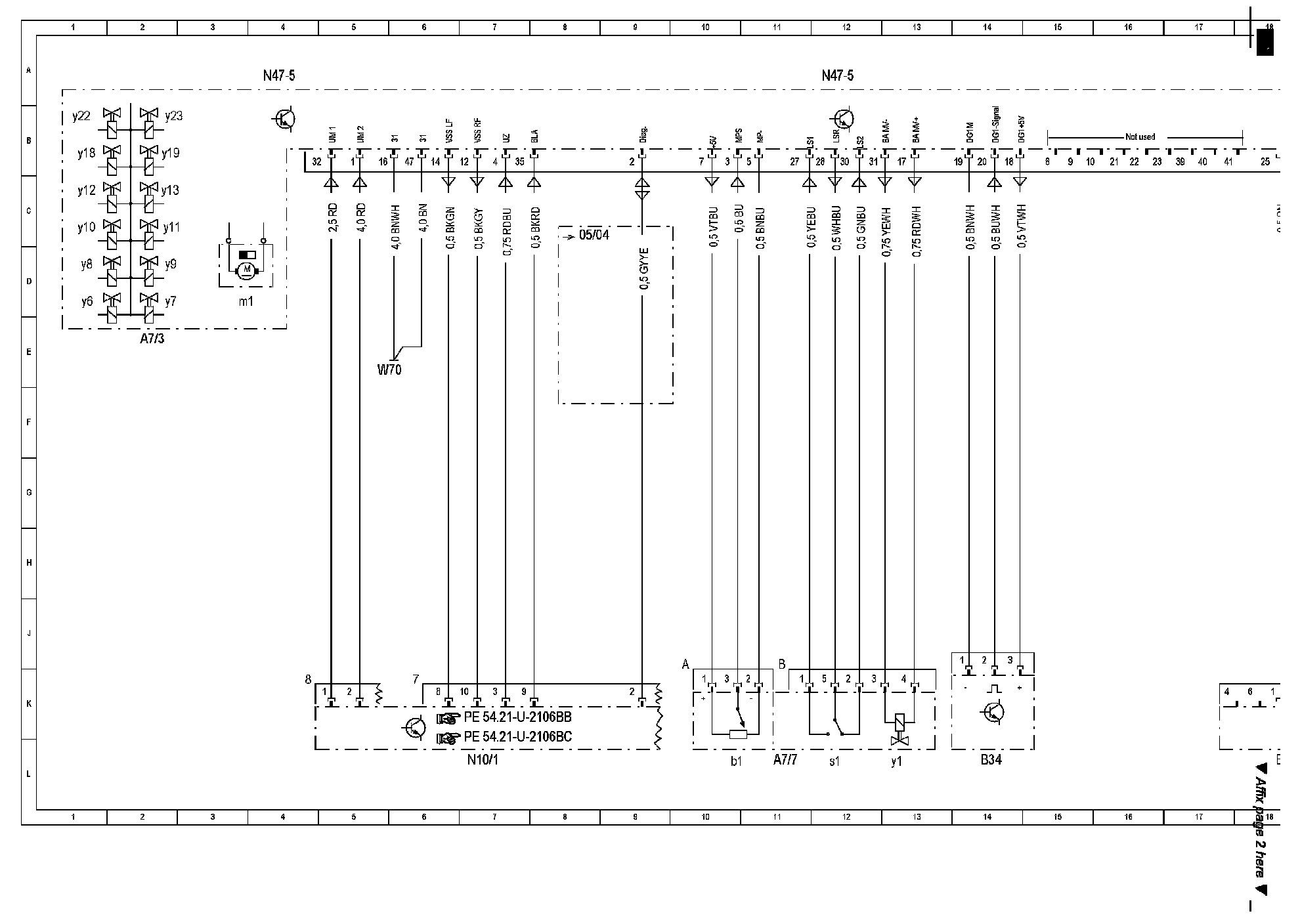

Wiring Diagram (Part 1):

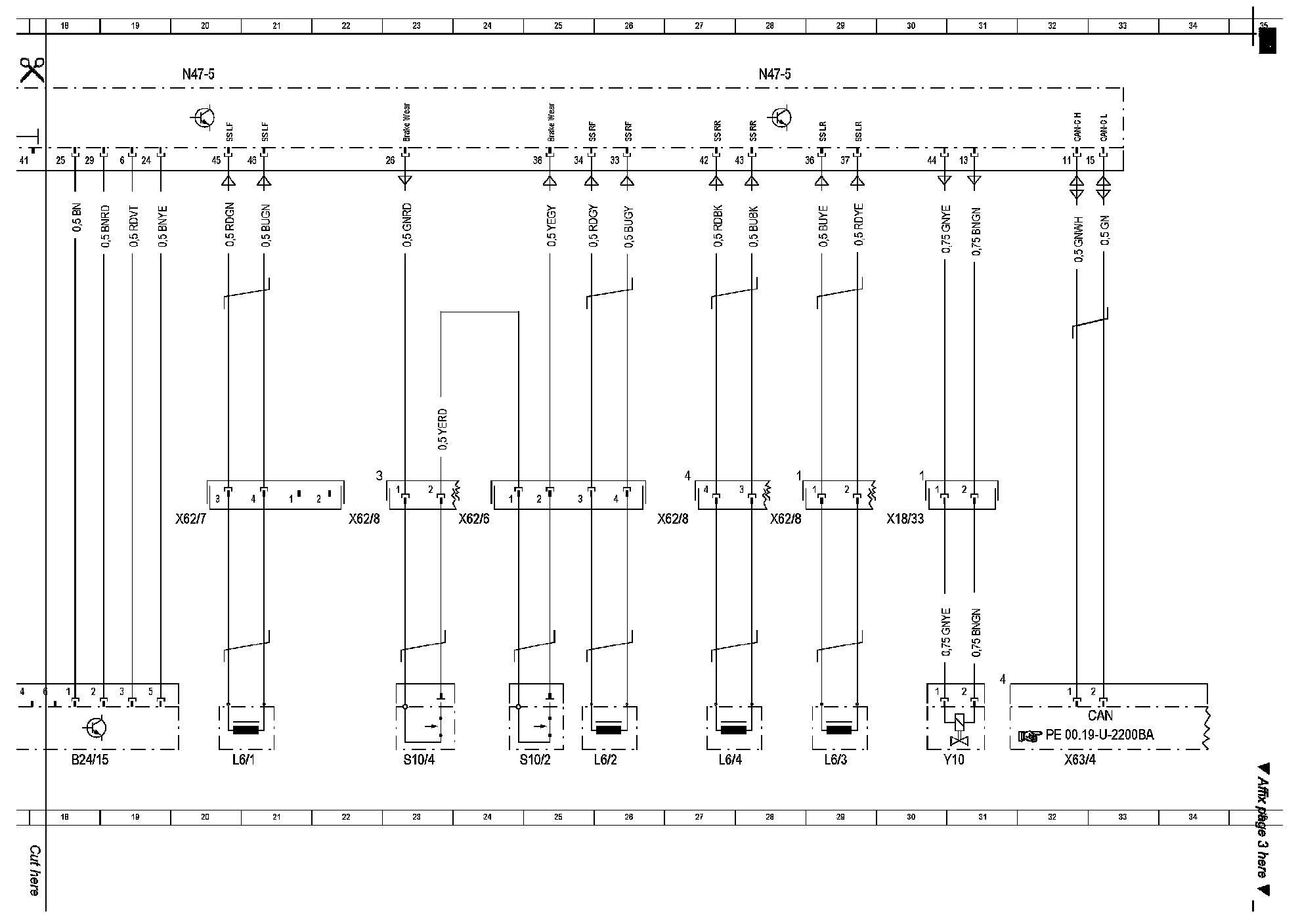

Wiring Diagram (Part 2):

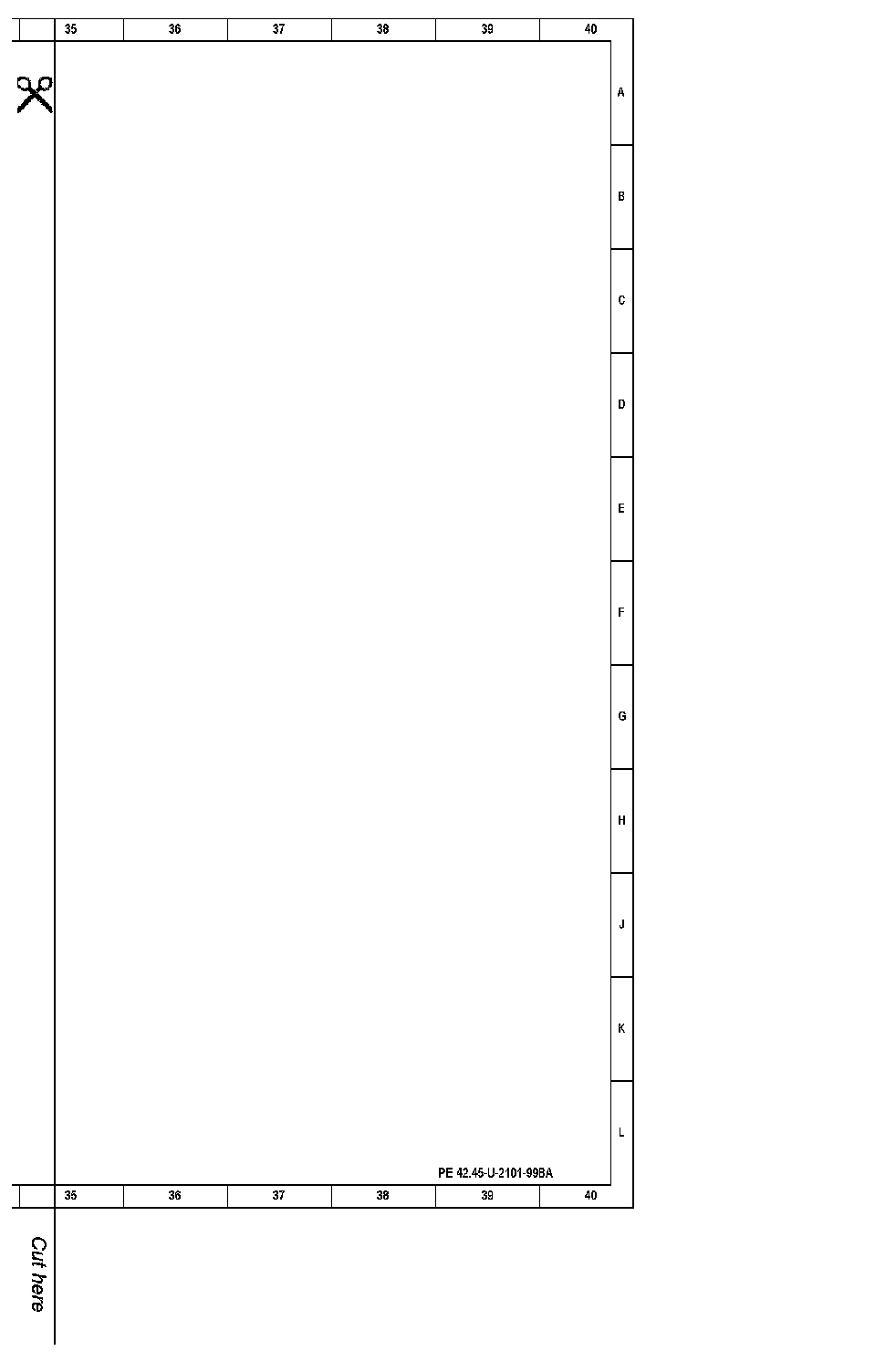

Wiring Diagram (Part 3):

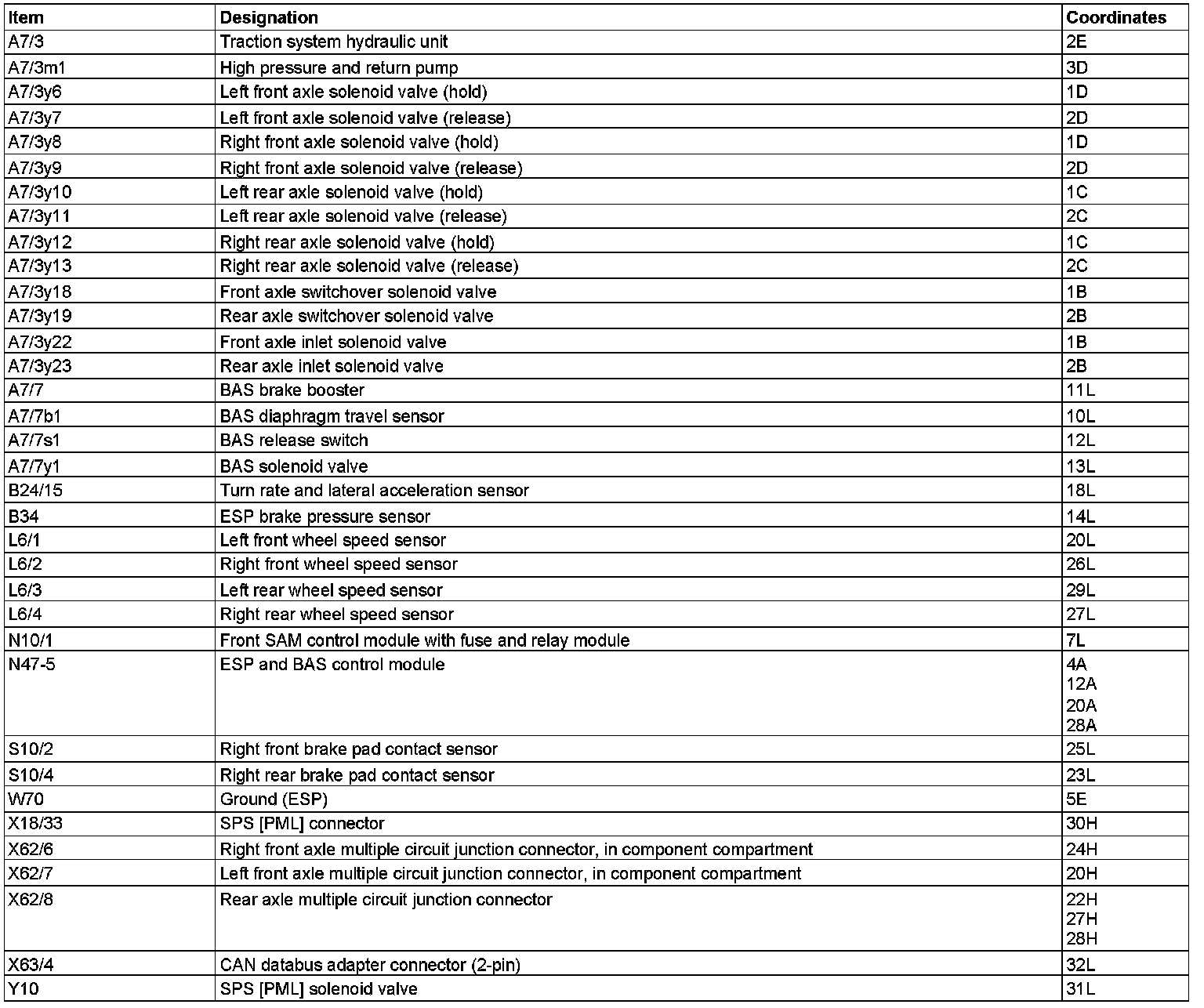

Component Description/Coordinates, A7/3 To Y10:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
