Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Description and Operation >> Electronic Stability Program (ESP) >> GF42.45-P-4900D ESP brake pressure sensor, location task function

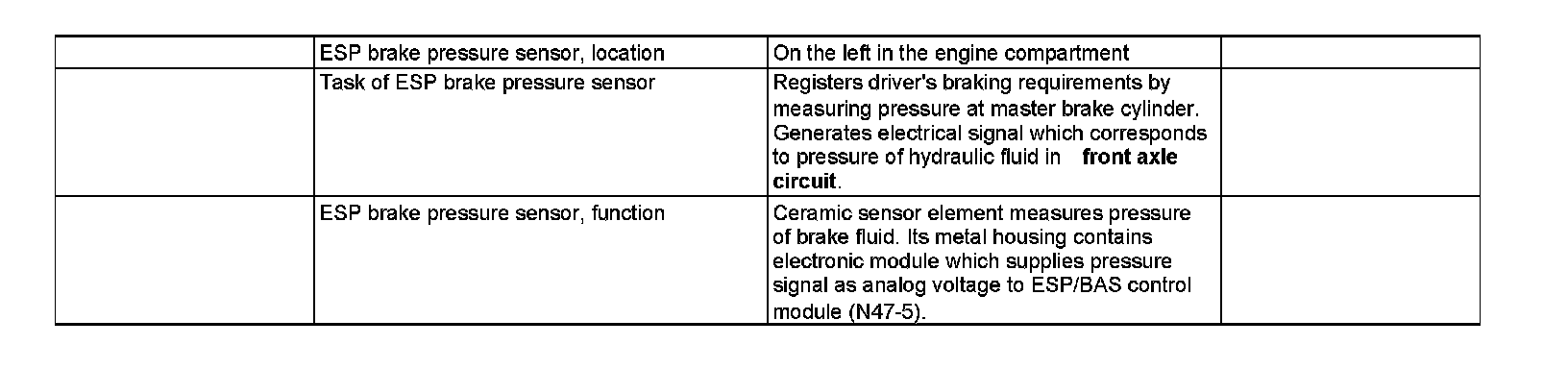

GF42.45-P-4900D ESP brake pressure sensor, location task function



GF42.45-P-4900D ESP brake pressure sensor, location task function
- with CODE (472) Electronic Stability Program (ESP)

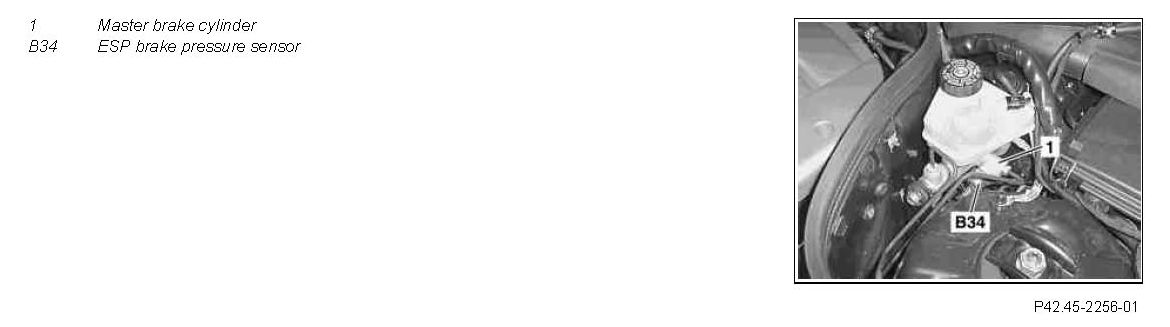

Component Identification:




Component Identification:
