AR72.10-P-1610Q Remove/Install Sealing Rail
AR72.10-P-1610Q Remove/Install Sealing Rail
AR72.10-P-1610Q Remove/Install sealing rail

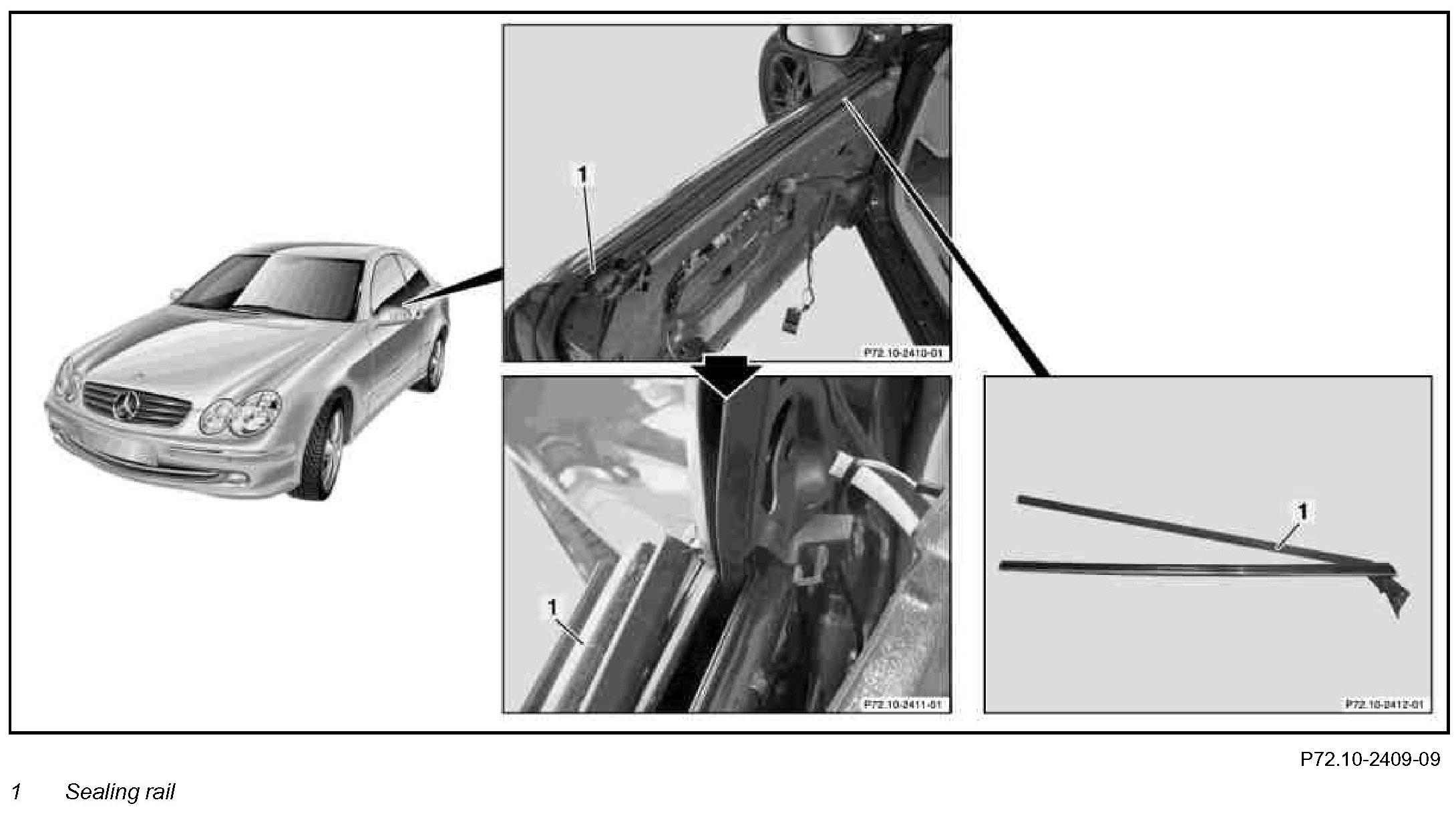

Component Identification:

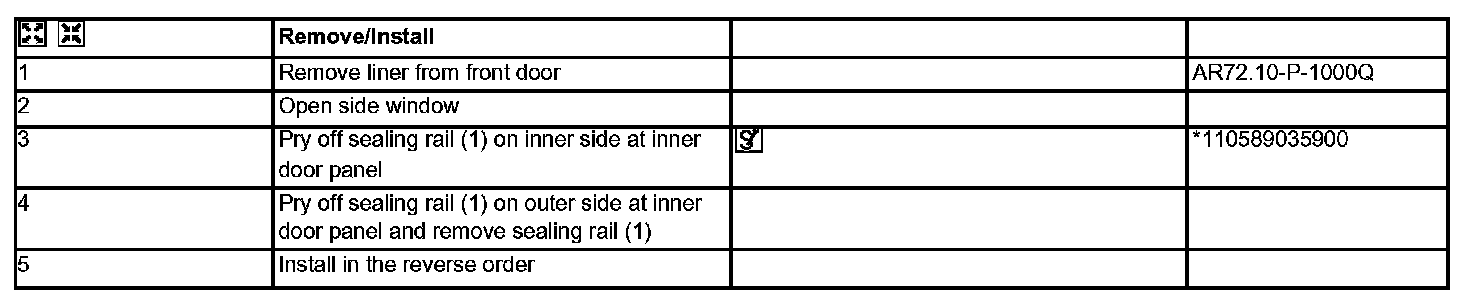

Steps 1 - 5:

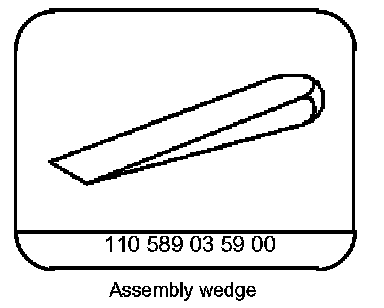

Special Tools:
