Vacuum/Pressure Pump Switch: Service and Repair

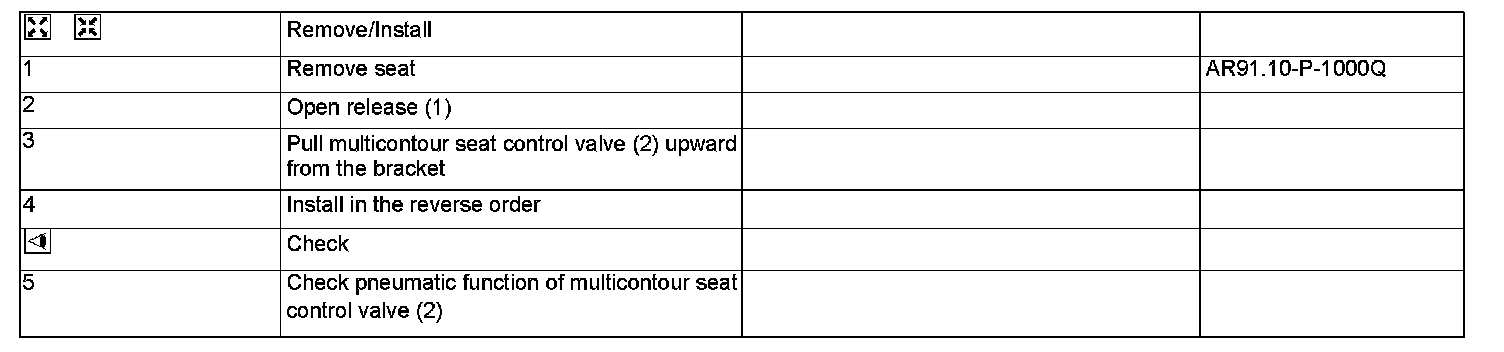

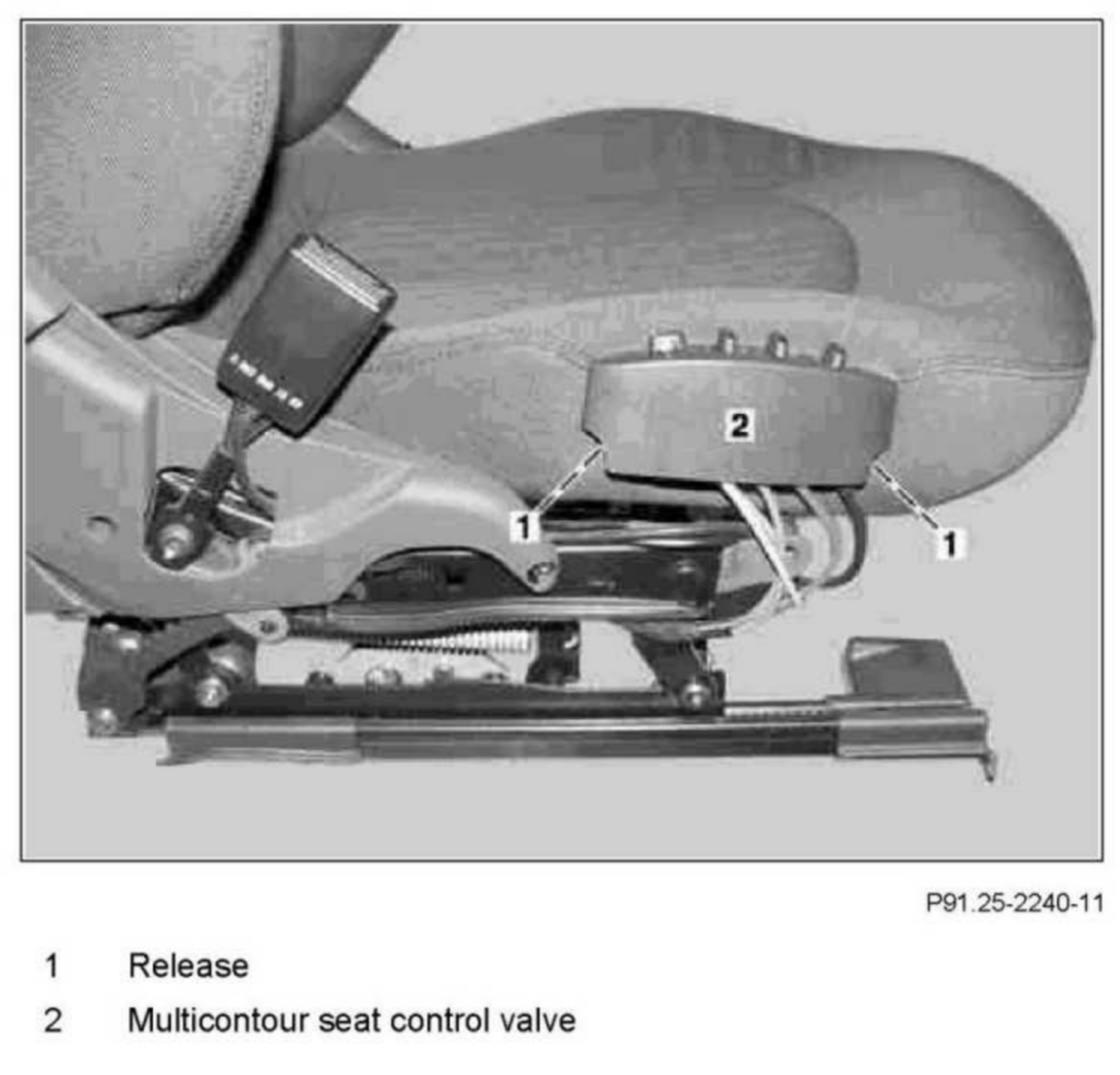

AR91.25-P-1710Q Remove/Install Multicontour Seat Control Valve
- with CODE (404b) Multi-contour backrest driver seat
- with CODE (405b) Multi-contour backrest passenger seat
