AR91.18-P-1820QBS Remove Front Seat Backrest Upholstery



AR91.18-P-1820QBS Remove Front Seat Backrest Upholstery
- with CODE (P98) Black Series

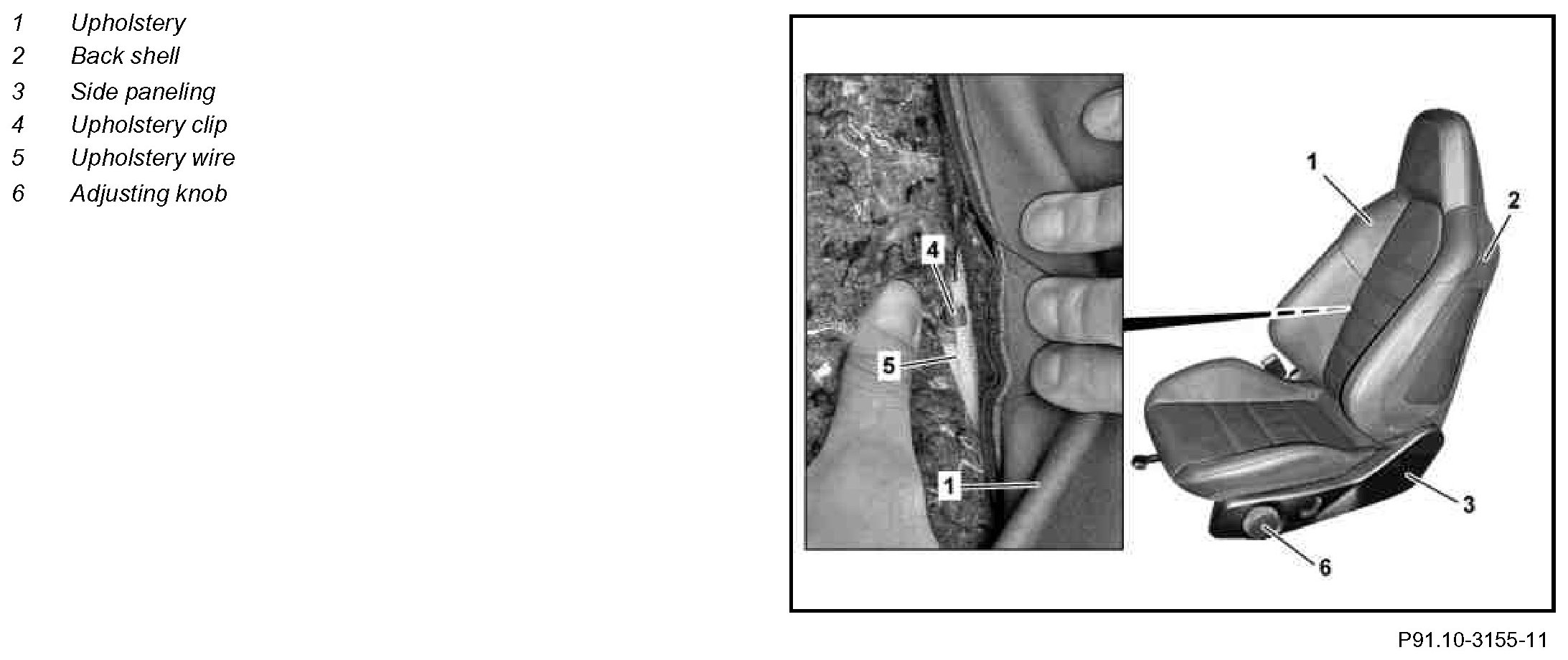

Component Identification:

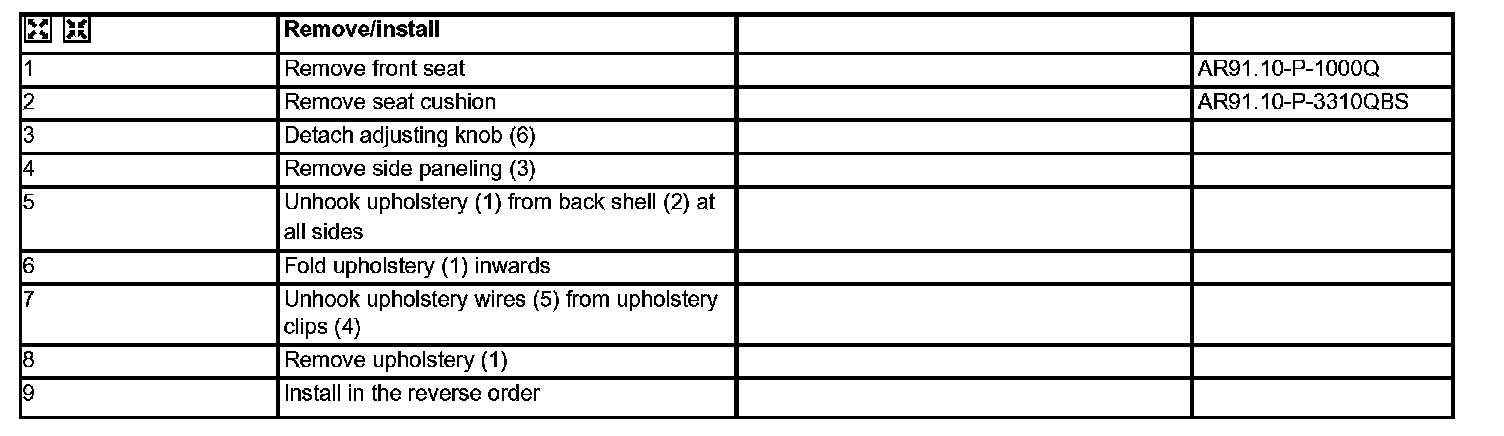

Steps 1 - 9:
