Sunroof / Moonroof Track: Service and Repair

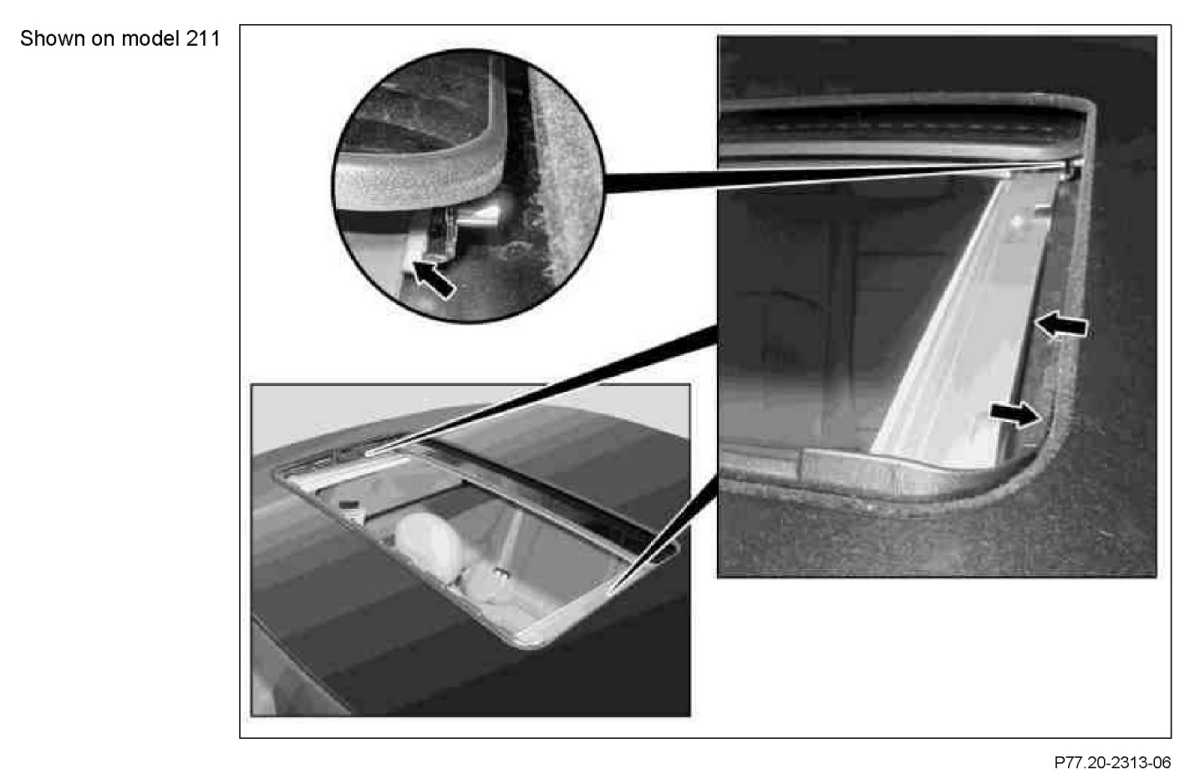

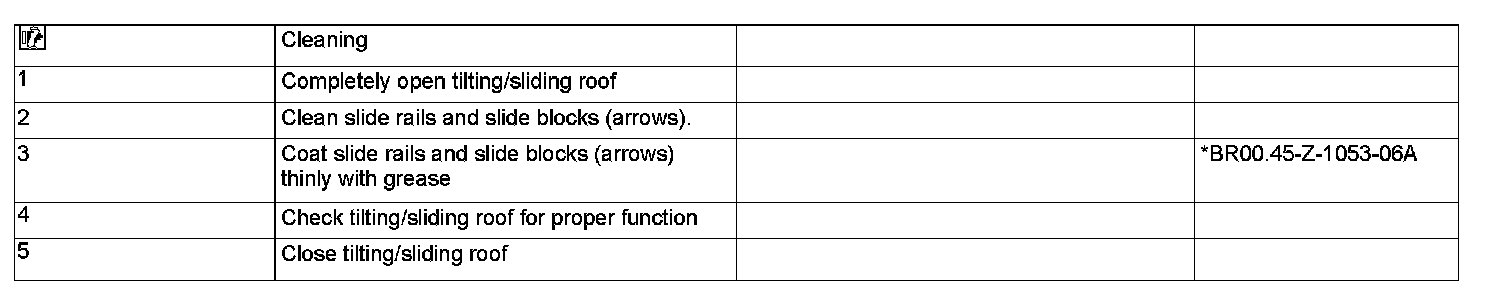

AP77.20-P-7731A Clean Slide Rails and Slide Blocks For Tilting/Sliding Roof
- with CODE (412) Electric tilting/sliding roof
- with CODE (414) Glass electric tilting/sliding roof

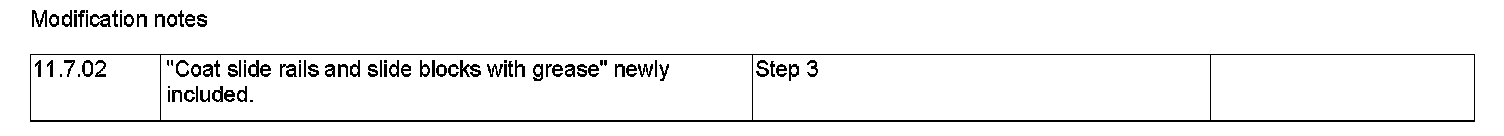

Modification Notes:
