GF77.20-P-0001-02Q Electric Sliding/Pop-Up Roof (SR) Networking of Components



GF77.20-P-0001-02Q Electric Sliding/Pop-Up Roof (SR) Networking Of Components
- with CODE (414a) Glass electric tilting/sliding roof
- except CODE (889) Keyless go

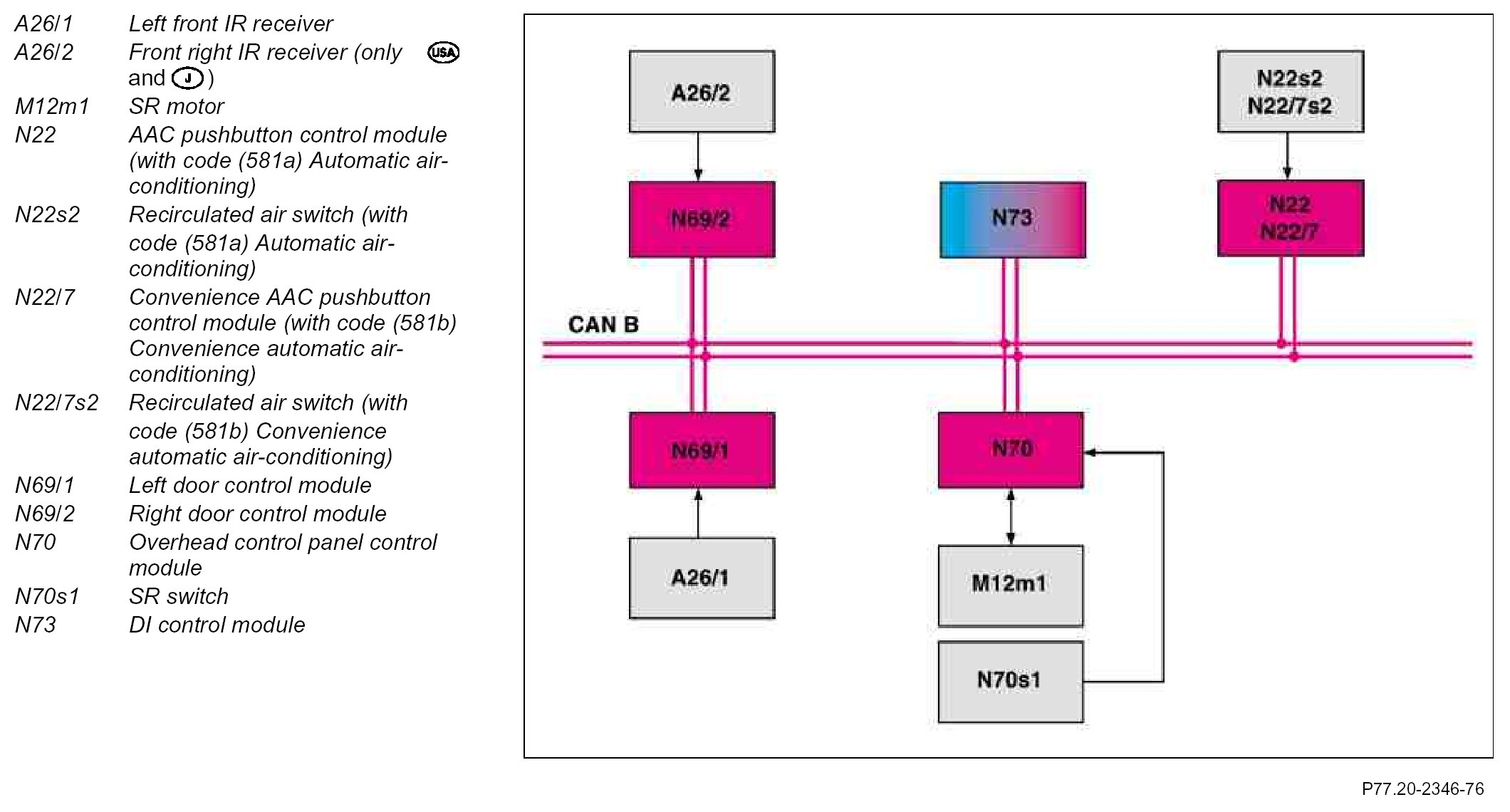

Component Identification:
