Roof and Associated Components: Service and Repair
AR88.85-P-2100Q Remove/Install Water Deflector

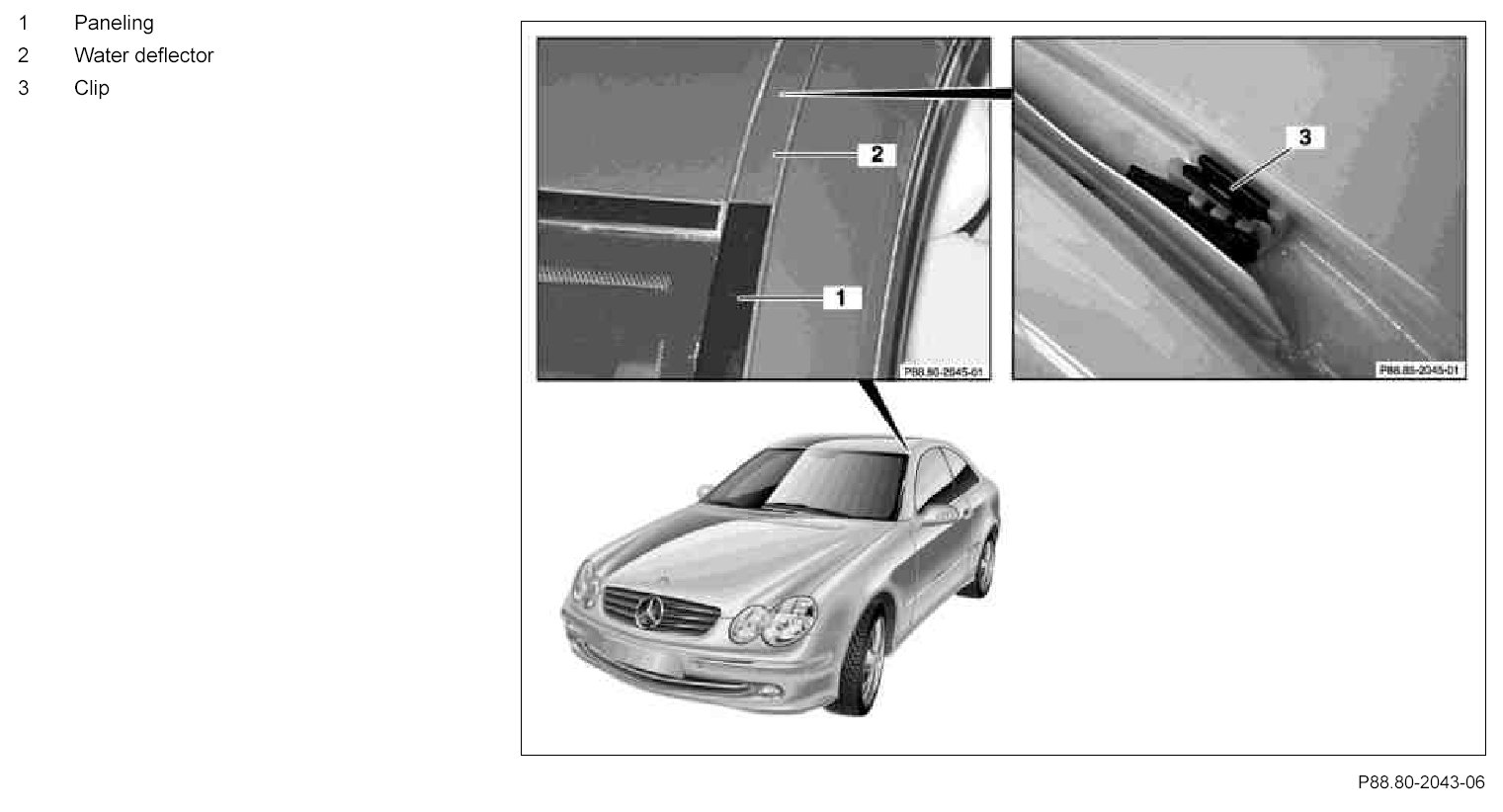

Component Identification:

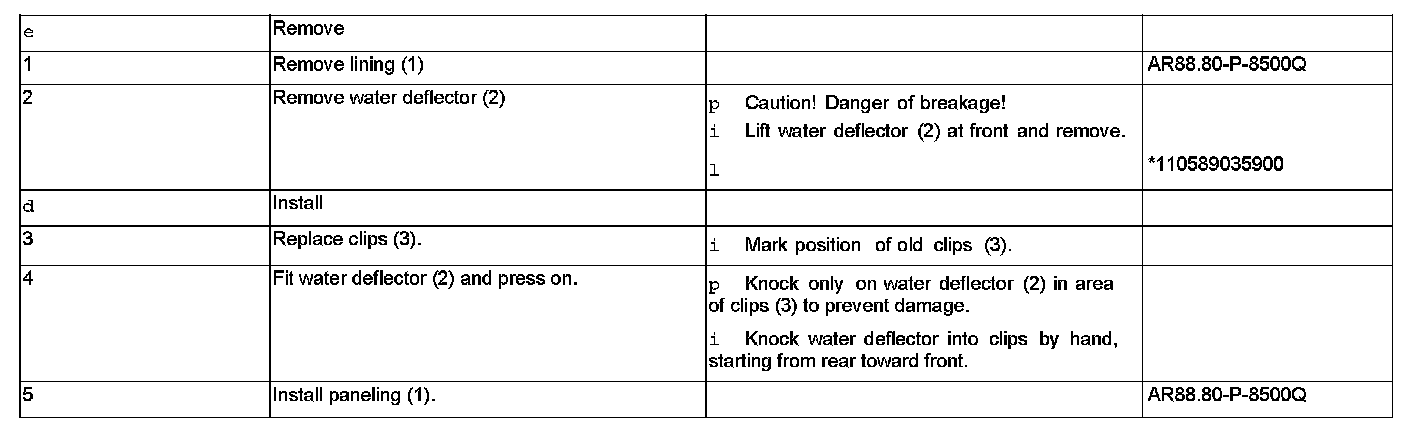

Steps 1 - 5:

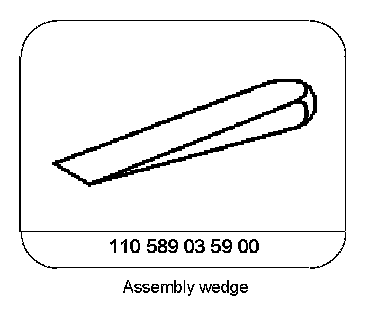

Special Tools:
