Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Function Schematic For Mirror Adjustment Electrical System PE88.79-U-2050BA

Function Schematic For Mirror Adjustment Electrical System PE88.79-U-2050BA



Function Schematic For Mirror Adjustment Electrical System PE88.79-U-2050BA

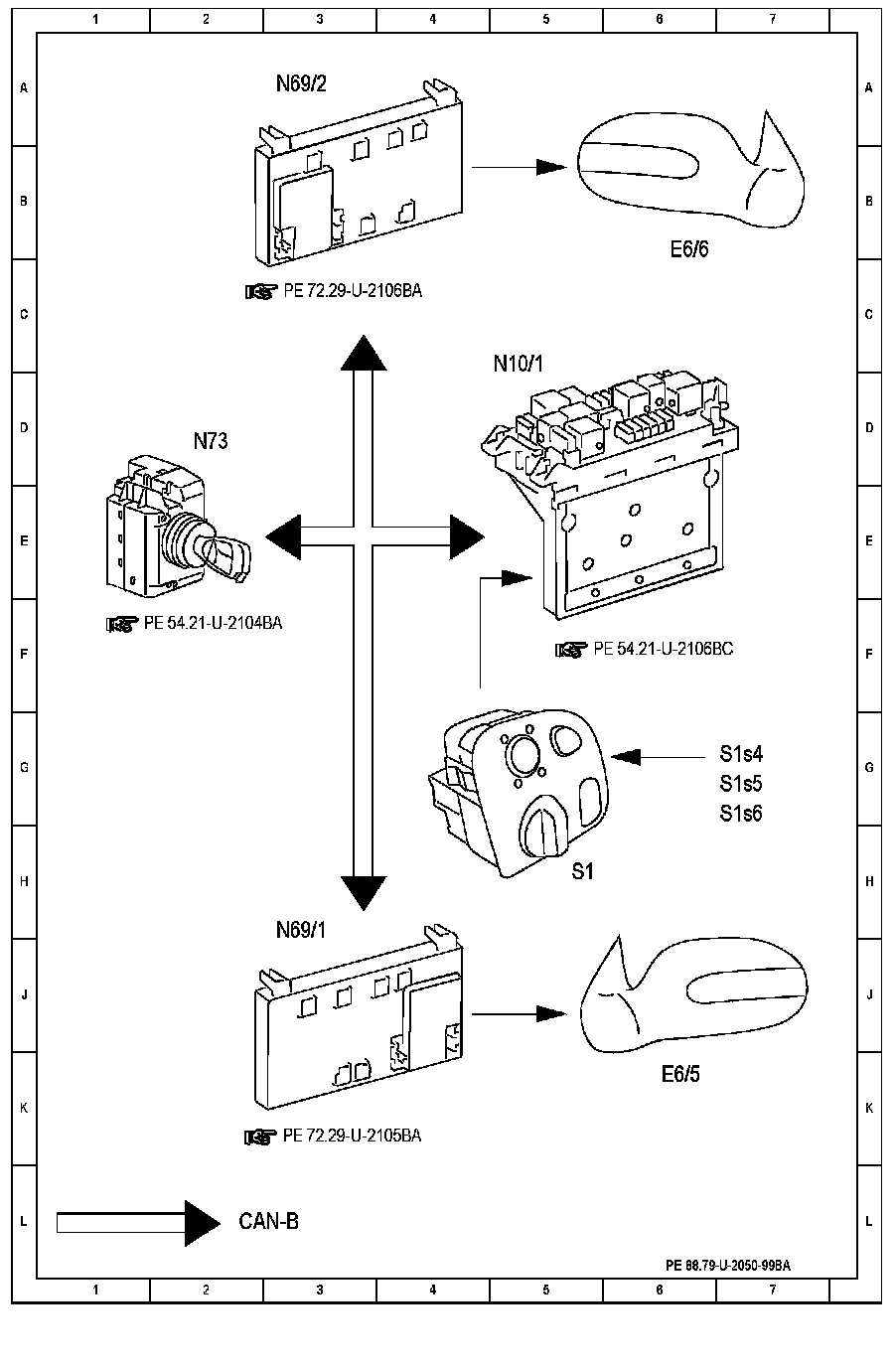

Function Diagram:

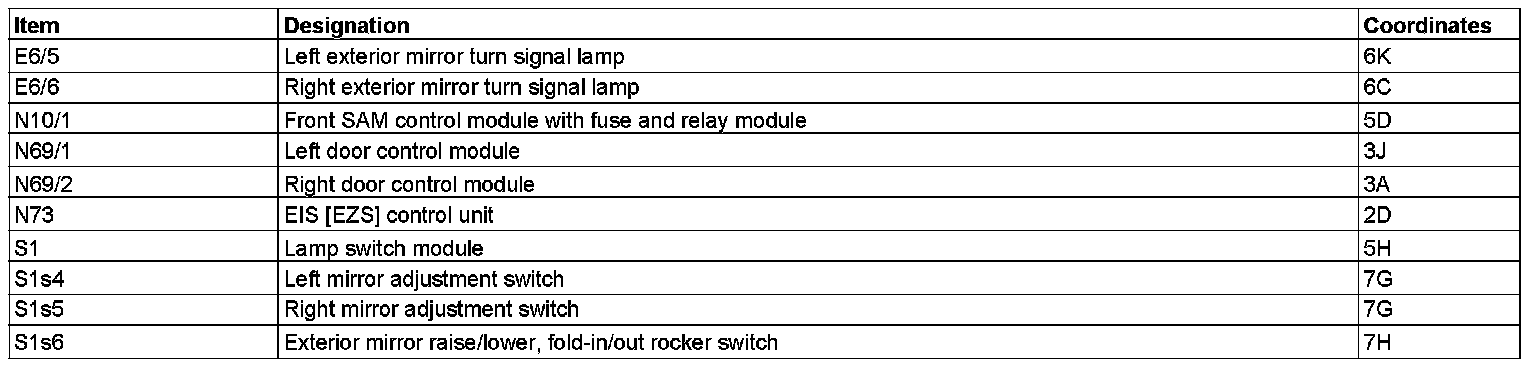

Component Description/Coordinates, E6/5 To S1s6:
