AR82.62-P-8000Q Remove/Install Keyless GO Antenna In Rear Bumper

AR82.62-P-8000Q Remove/Install Keyless GO Antenna In Rear Bumper
- with CODE (889) Keyless Go
- except CODE (P98) Black Series

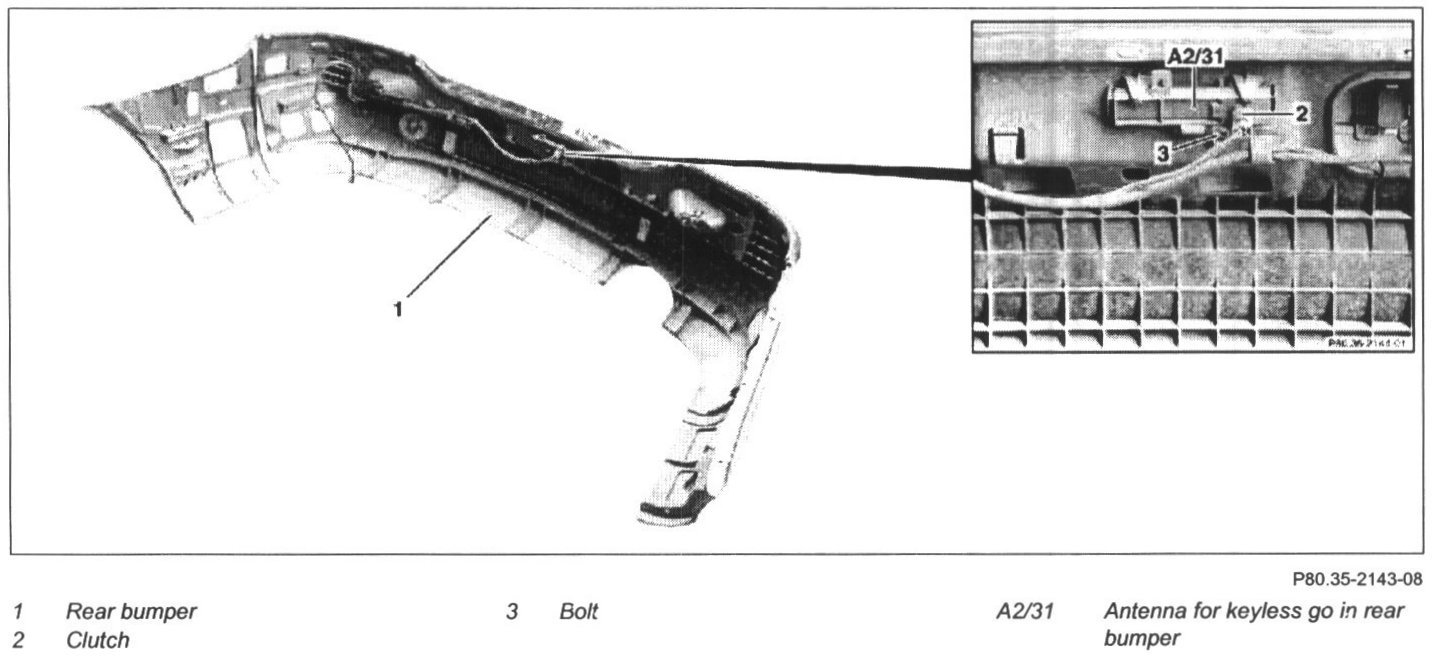

1 Remove rear bumper (1)

DANGER!
Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries
- No fire, sparks, naked flames or smoking.
- Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.

2 Disconnect ground cable of battery
3 Disconnect connector (2)
4 Unscrew bolt (3)
5 Unclip rear bumper Keyless Go antenna (A2/31) and remove
6 Install in the reverse order
7 Perform basic programming
8 Read diagnostic trouble code memory and erase
9 Check for proper function
