GF80.45-P-0003Q Convenience Feature (CF), Function

GF80.45-P-0003Q Convenience Feature (CF), Function

Function (Vehicles up to model year 08 /YoM 07)

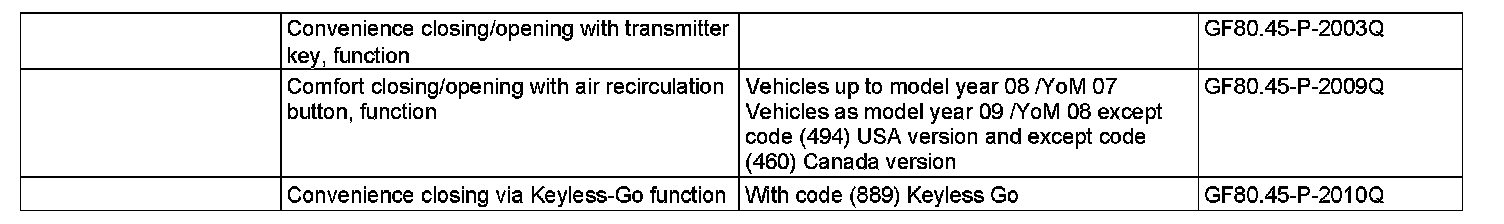

Actuation possibilities for convenience feature:
^ Convenience opening with transmitter key (A8/1)
^ Convenience closing with transmitter key (A8/1)
^ Convenience opening via recirculated air switch (N22s2 or N22/7s2)
^ Convenience closing via recirculated air switch (N22s2 or N22/7s2)
^ Convenience closing via keyless go (on vehicles with code (889) Keyless go)

With the convenience closing and opening function, all side windows and the tilting/sliding roof (with code (414) Electric glass tilting/sliding door ) can be closed or opened.

The left front power window motor (M10/3) or right front power window motor (M10/4) is actuated via the left door control unit N69/1) or right door control unit (N69/2), the left rear power window motor (M10/5) or right rear power window motor (M10/6) on the rear side windows is actuated via the rear control unit N22/6).
on vehicles with code (414) Electric glass tilting/sliding door, the tilting/sliding roof can be closed and opened additionally with the convenience actuation. Actuation of the SR motor (M12m1) is accomplished via the overhead control panel control unit (N70).

Function (vehicles as of model year 09 /YoM 08 with code (494) USA version or code (460) Canada version)
Actuation possibilities for convenience feature:
^ Convenience opening with transmitter key (A8/1)
^ Convenience closing with transmitter key (A8/1)
^ Convenience closing via keyless go (on vehicles with code (889) Keyless go)

With the convenience closing and opening functions, all side windows and the tilting/sliding roof (with code (414) Electric glass tilting/sliding door ) can be closed and opened.

The left front power window motor (M10/3) or right front power window motor (M10/4) are actuated via the left door control unit (N69/1) or right door control unit (N69/2), the left rear power window motor (M10/5) or right rear power window motor (M10/6) on the rear side windows are actuated via the rear control unit (N22/6).
On vehicles with code (414) Electric glass tilting/sliding door, the tilting/sliding roof can be closed or opened additionally by the convenience feature. Actuation of the SR motor (M12m1) is accomplished via the overhead control panel control unit (N70).
