Home >> Mercedes Benz >> 2003 >> CLK 320 (209.365) V6-3.2L (112.955) >> Repair and Diagnosis >> Body and Frame >> Interior Moulding / Trim >> Dashboard / Instrument Panel >> Service and Repair >> AR68.10-P-1505Q Remove/Install Instrument Panel Bottom Section on Driver's Side

AR68.10-P-1505Q Remove/Install Instrument Panel Bottom Section on Driver's Side



AR68.10-P-1505Q Remove/Install Instrument Panel Bottom Section on Driver's Side

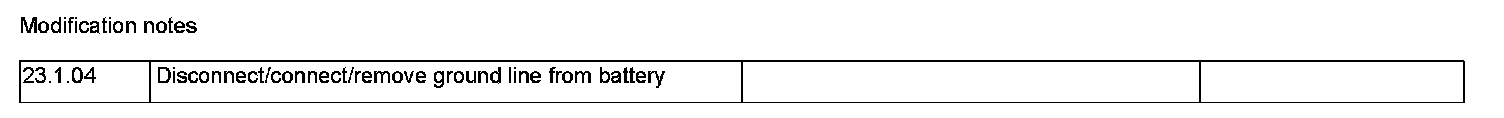

Modification Notes:

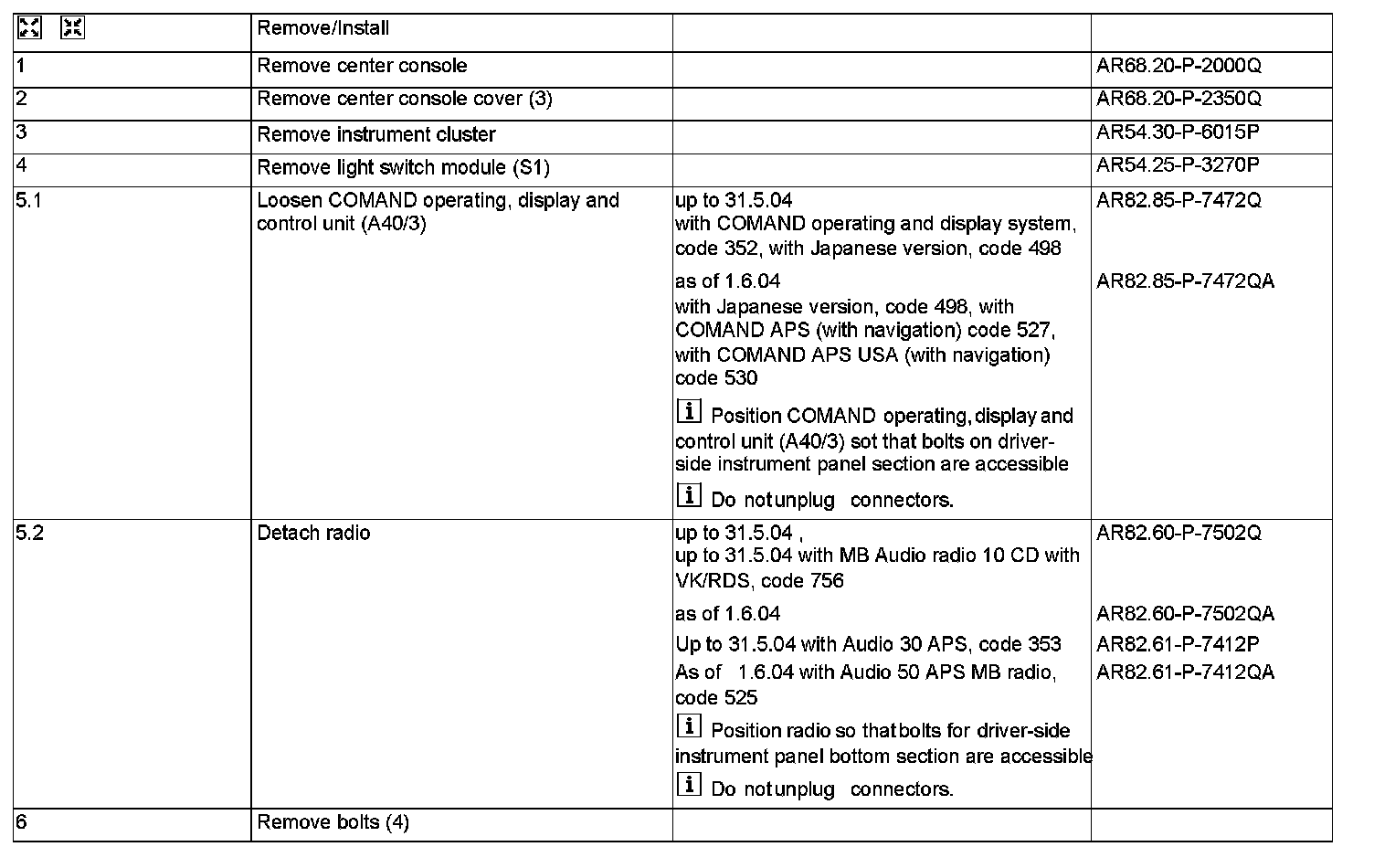

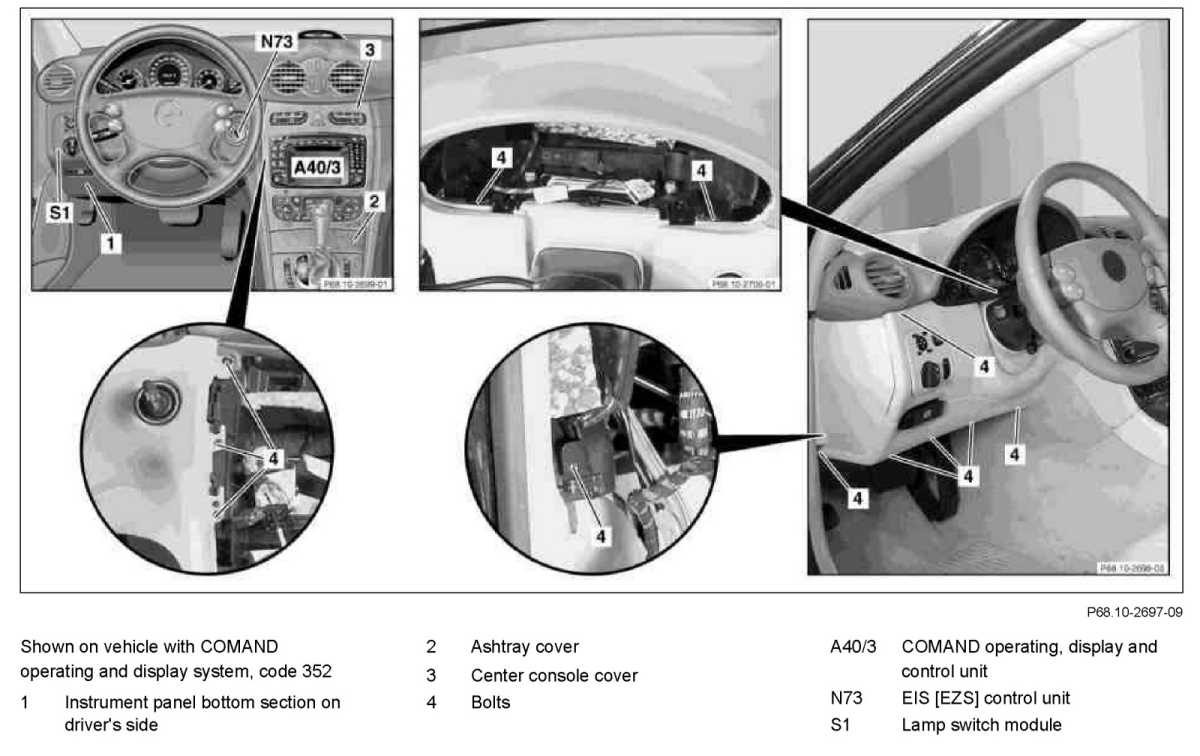

Part 1:

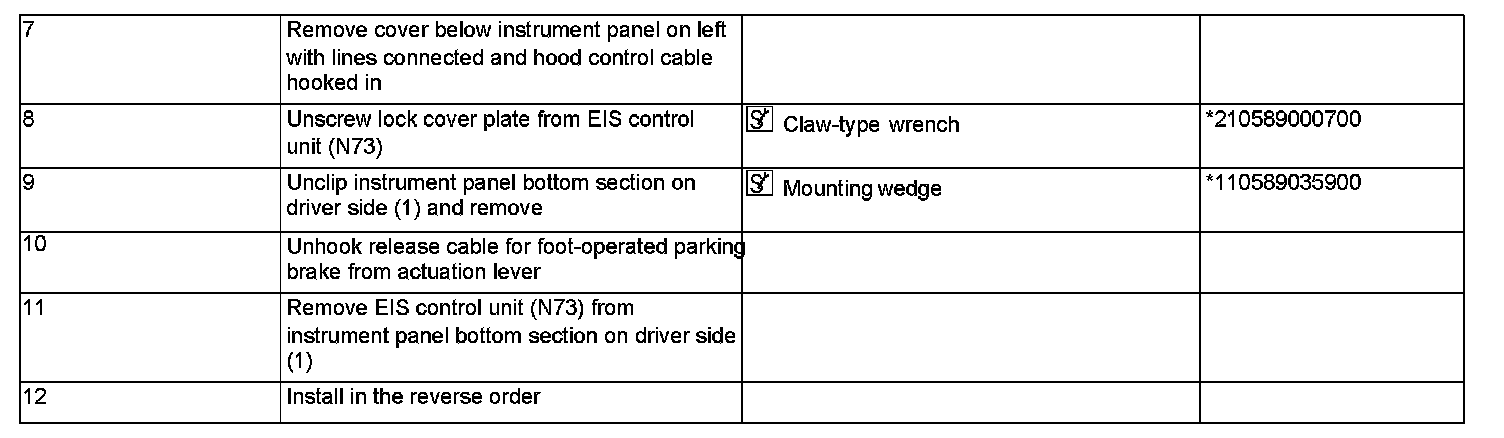

Part 2:
