AR68.20-P-2350Q Remove/Install Cover on Center Console

AR68.20-P-2350Q Remove/Install Cover on Center Console







DANGER!
Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries
- No fire, sparks, naked flames or smoking.
- Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.

1 Disconnect ground cable of battery

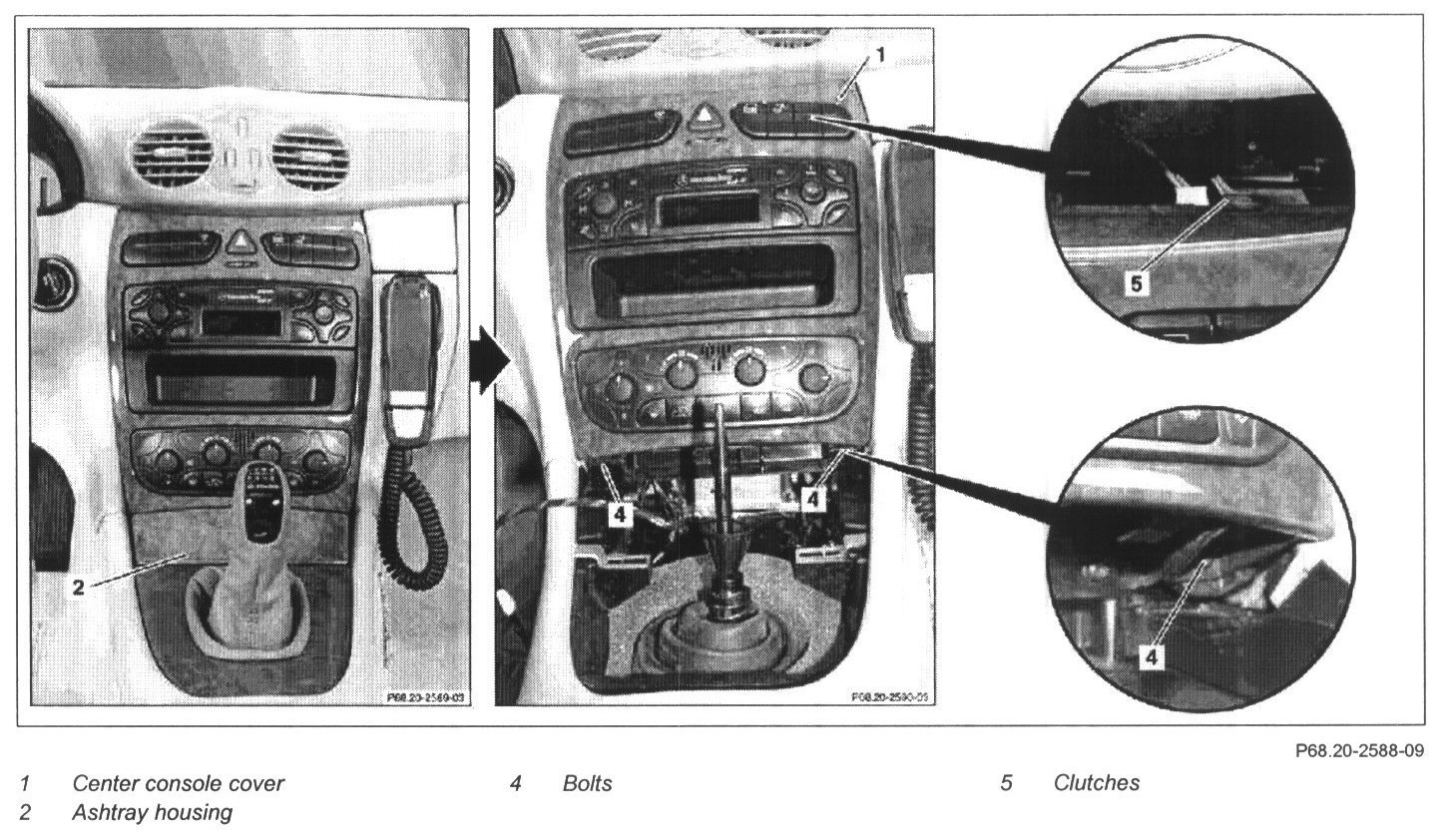

2 Remove ashtray housing (2) at front center console
3 Remove screws (4).
4 Remove cover from center console (1)
5 Disconnect couplings (5) at upper control panel control module (N72/1)
6.1 Disconnect couplings at automatic heater and air conditioning
- With code (581b) convenience automatic air conditioning
6.2 Disconnect couplings at automatic air conditioning
- Except code (581b) convenience automatic air conditioning
7 Install in the reverse order
8 Perform basic programming
9 Read diagnostic trouble code memory and erase
10 Check for proper function
