AR68.20-P-2310Q Remove/Install Gearshift Lever Cover

AR68.20-P-2310Q Remove/Install Gearshift Lever Cover







DANGER!
Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries
- No fire, sparks, naked flames or smoking.
- Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.

1 Disconnect ground cable of battery

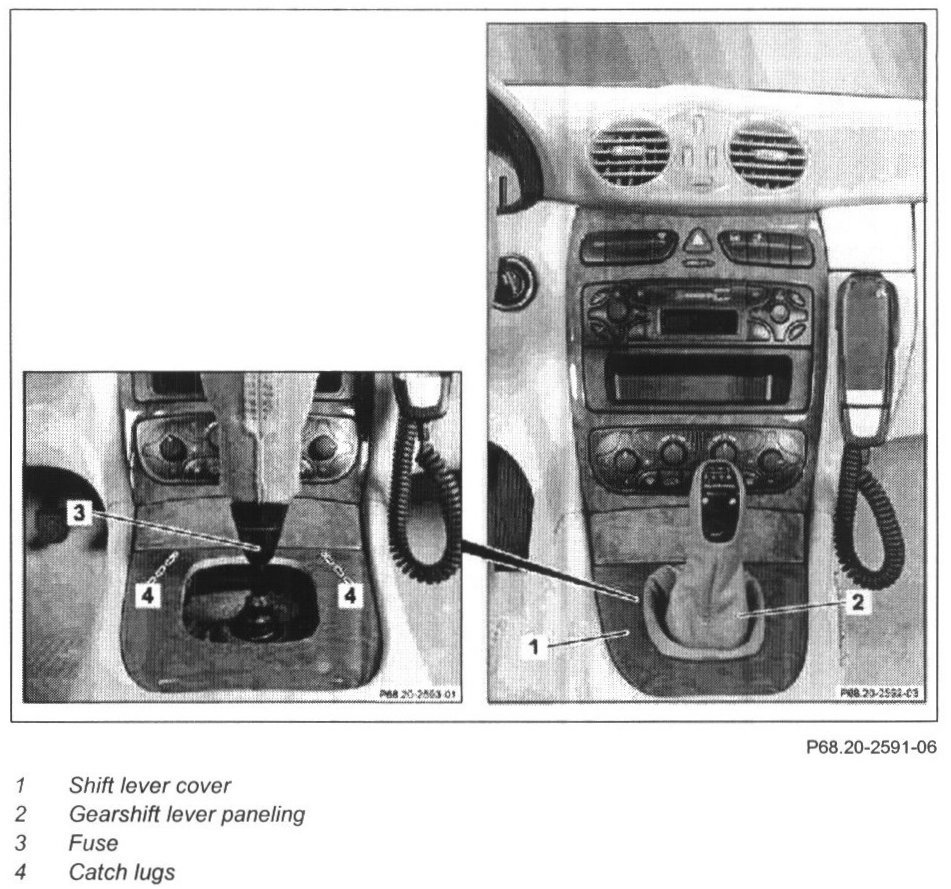

2 Loosen shift lever paneling (2) and pull over shift lever
- See Special Tools below

3 Turn retainer (3) 1/2 turn
4 Remove shift lever paneling (2) upward
5 Pull shift lever cover (1) up in area of catch lugs (4), disengage
6 Disconnect connectors from rear of gearshift lever cover (1)
7 Install in the reverse order
8 Perform basic programming
9 Read diagnostic trouble code memory and erase
10 Check for proper function

Special Tools

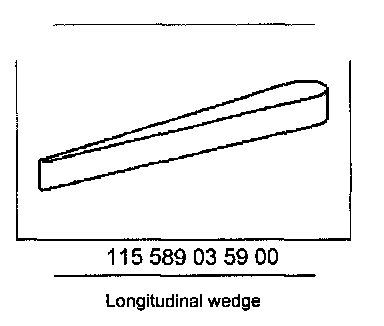

Longitudinal Wedge - 115 589 03 59 00:
