Console Lock Cylinder: Service and Repair



AR68.20-P-2390P Remove/install Lock Cylinder In Catch For Armrest On Middle Console
- with CODE (326) Telephone holder in front armrest
-with CODE (386) Preinstallation for telephone "Handy", UPCI system
- without CODE (P98) Black Series [model 209]

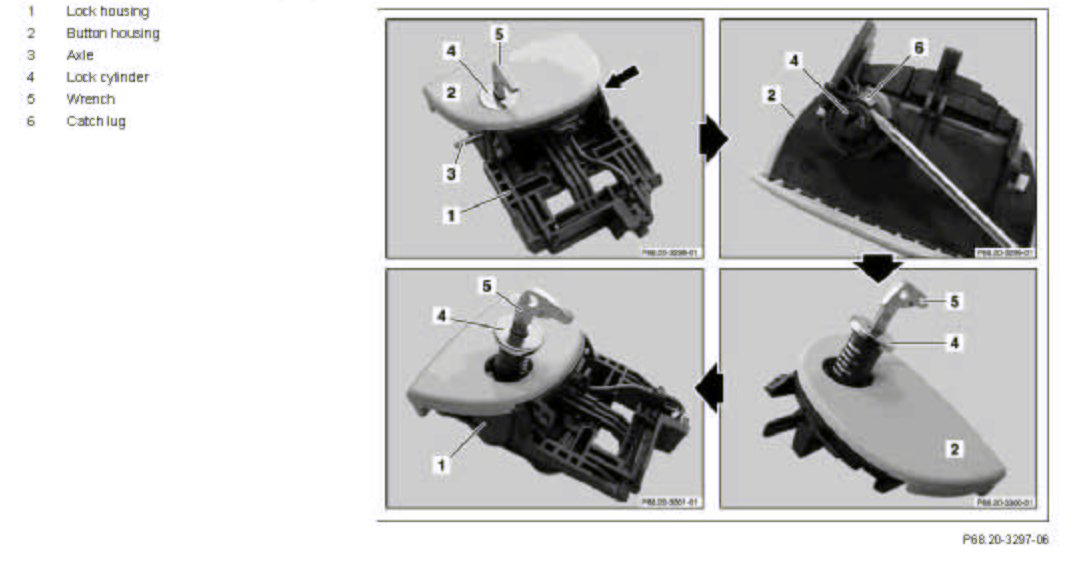

Component Identification:

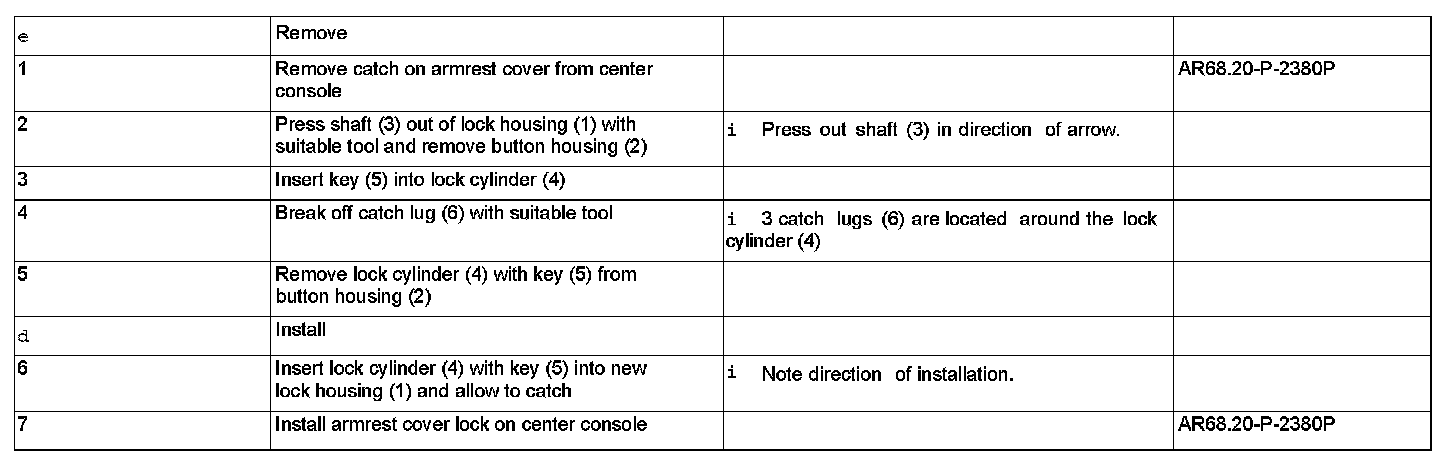

Steps - 7:
